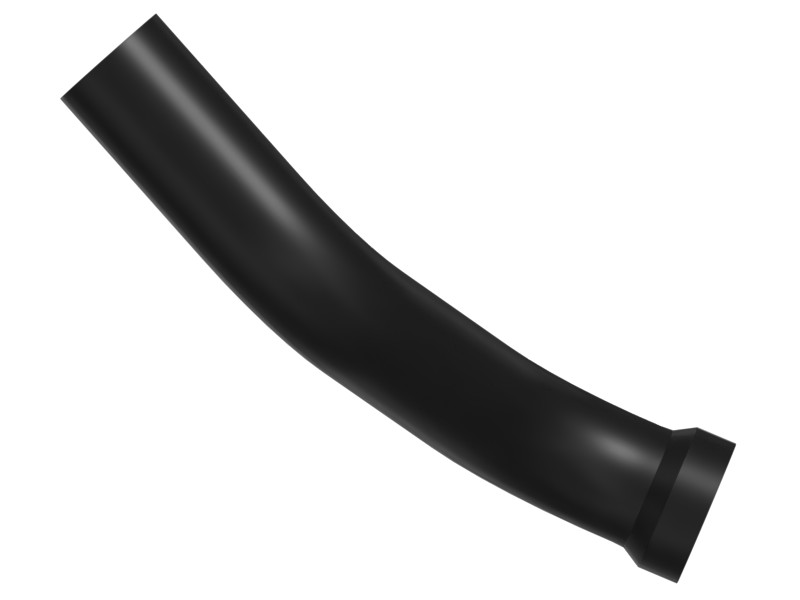

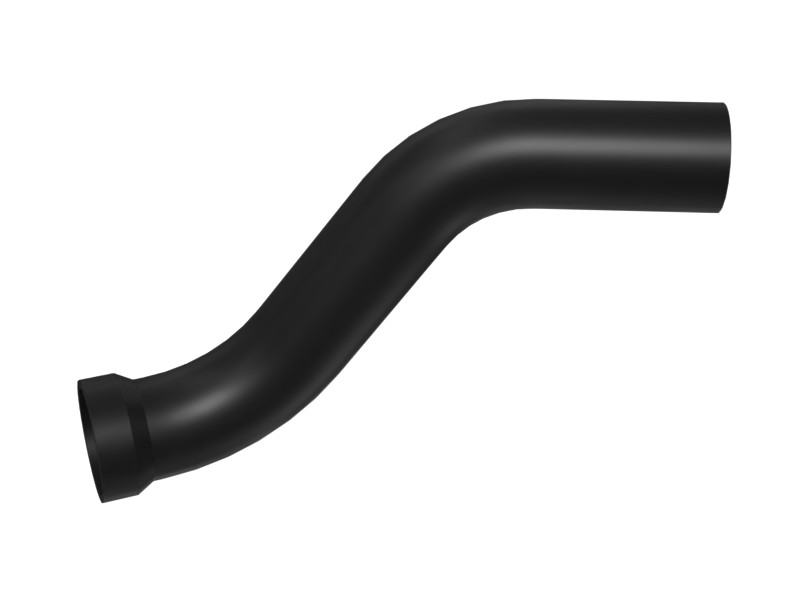

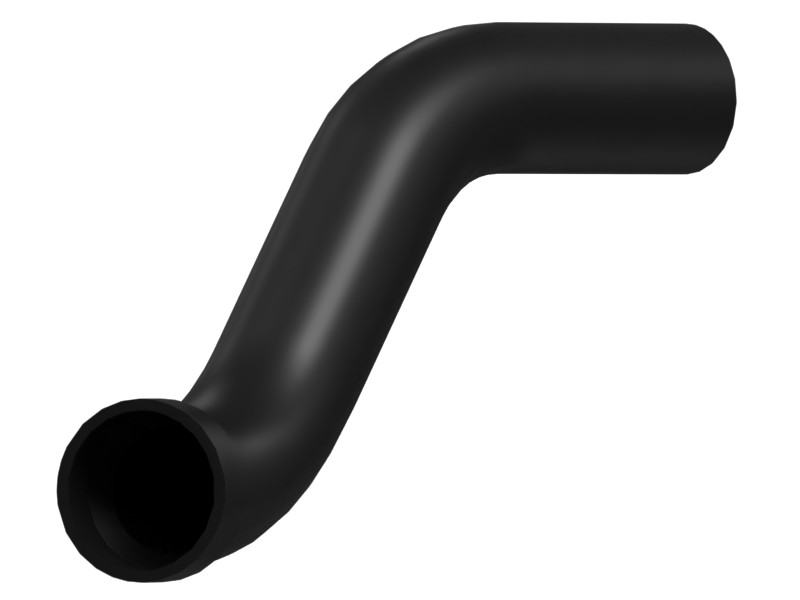

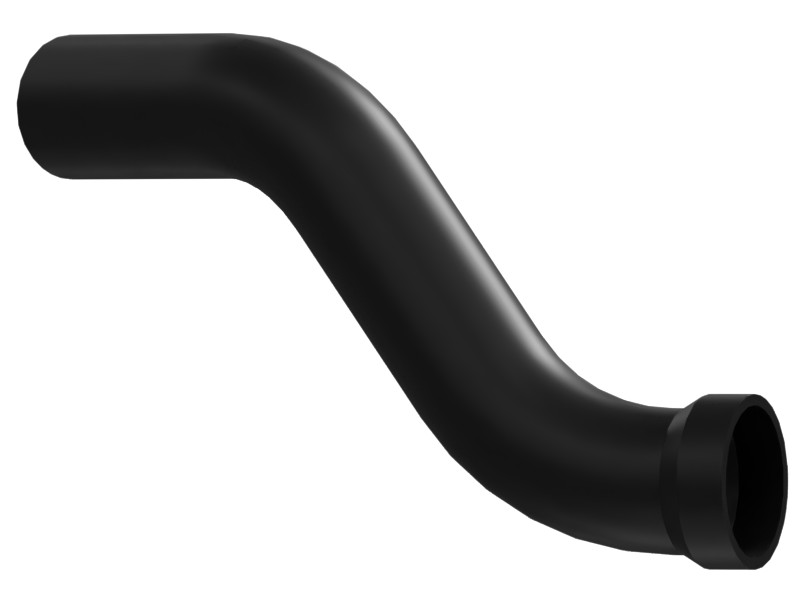

266-6189 100.6 mm ID Air Filter Hose
Cat® 100.6 mm ID hose supplies clean, filtered air to the engine for efficient combustion.
Description
The hose is used to connect the air filter to engine components to provide clean air to the engine. One end of the hose connects to the air filter and the other end connects to the engine component. The hose can withstand the high temperatures and pressures of the engine compartment.
Attributes
- Withstands a minimum vacuum of 20 kPa at 100°C
- Built to exact specifications for durability and reliability
Applications
The hose is used to form a sealed passage for filtered air to flow from the air filter to the engine intake manifold. When the engine is running, the intake manifold distributes the air to the combustion chambers, where it mixes with fuel for efficient combustion.
Specifications
| Hose Warning | Improper selection of hose and coupling combinations will void the warranty and may result in serious injury or death, property damage, or component and machine system failure. Cat® hose assembly products are designed and tested as a system to achieve reliable connections, maximizing hydraulic system safety and reliability. In addition, use of properly maintained, appropriate Caterpillar tooling is recommended to ensure hoses are crimped to specification. Using Caterpillar hose with another manufacturer's couplings, or Caterpillar couplings with another manufacturer's hose, may result in hose assemblies that are unreliable, unsafe or perform poorly. Caterpillar does not recommend or endorse this practice. For more information, refer to SAE J1273 Section 6.3 and ISO 17165-2 Section 6.3. |
|---|---|
| Inside Diameter | 101 mm |
| Operating Temperature | -40°C to 125°C |
Compatible Equipment
- Excavators: 330D L, 336D2 L, 336D L, 330D, 340D2 L, 340D L, 336D2, 336D
