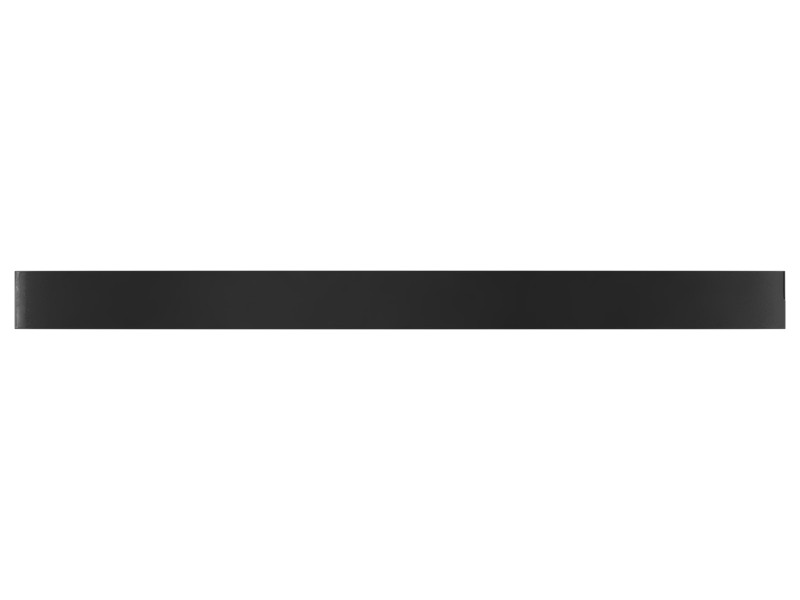

265-5287 52 mm Gauge Diameter Seal Ring
Cat® plastic free-state seal ring for transmission lines
Description
The transmission seal ring helps engage the rotating clutches in the transmission and torque converter. It allows oil to flow from stationary components into rotating components while minimizing fluid loss.
Features
- Material: Plastic (Polytetrafluoroethylene) (PTFE)
- Outside Diameter: 52 mm (2.05 in)
- Thickness: 3.56 mm (0.14 in)
Applications
A variety of cross-section types are used in transmissions and brakes to engage clutches. Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Material Description | PTFE |
|---|---|
| Seal Type | Split |
| Material | PTFE |
| Remarks | Dimensions and material descriptions are for reference only. Color may differ from the image |
| Pitch Diameter | 52.00 mm (2.047 in) |
| Width | 3.90 mm (0.154 in) |
| Outside Diameter | 52 mm (2 in) |
| Thickness | 4 mm (0.1 in) |
Compatible Equipment
- Motor Graders: 120, 140H, 120H, 140K, 12H, 12K, 160K
- Generator Sets: C7.1
- Dozers: D6N
- Wheel Loaders: 950, 950 GC, 950L, 962L
