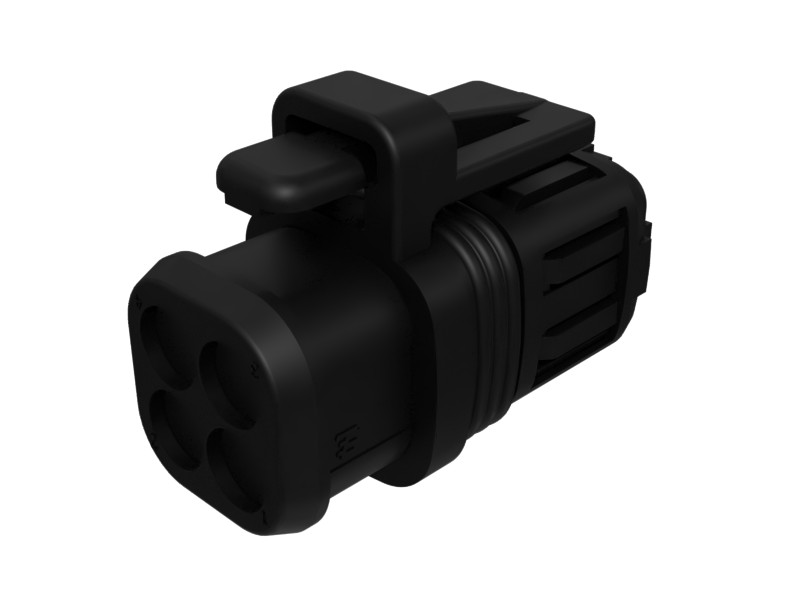

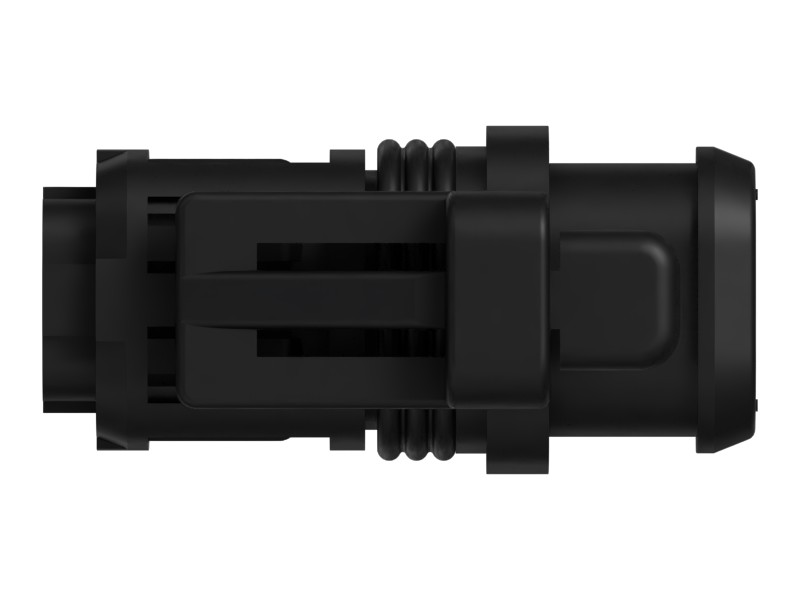

264-2407 4-Pin Connector Plug

Description

Cat plug group connectors provide a pin-and-socket connection system for extremely durable, sealed electrical connections in Cat heavy-duty equipment.

Features

Nylon 4-pin round connector plug
Black plug body
Red terminal position assurance feature
Durable and long-lasting

Applications

Cat connector plug groups use reliable wires between wires or between a wire and equipment. Refer to your Operation and Maintenance Manual or contact MECHSC for more information.

Specifications

Overall Depth	16.6 mm (0.7 in)
Overall Width	23.7 mm (0.9 in)
Pin	4
Overall Length	34.5 mm (1.4 in)
Material Description	Nylon
Connector Type	4-Pin Round
Material	Polyamide Plastic

Compatible Equipment

Track Loaders: 826K, 990K, 982, 992, 993
Cold Planers: PL83, PL87, PM620, PM622
Compactors: 824K, 825K, 834K, C13B
Engines: C32, C27, C15, C13, C18
Excavators: 374F, 390F L, 374, 349F L, 395, 3516E, 352, 6015, 6030, 349, 6040, 355, 637K, 3508B, 349E, 349E L, 352F, 621H, 390F, 349E L VG, 6020B, 374F L, 6015B, 621K
Asphalt Pavers: AD45, AD63
Skid Steer Loaders: 24
Motor Graders: 14, 16M3, 16, 18
Wheel Excavators: MD6250, MD6200, MD6310
Dozers: D11T, D9, D10T2, D8T, D9T, D10, D8, D10T, D11
Wheel Loaders: 988K, 980, RM500B, R1700K, R2900 XE, 836, 834
Off-Highway Trucks: 745, 730, 772G, 777, 740, 770G, 740B, 735, 740 GC, 773, 725, 745C, 775G

Machine Model	14, 16, 16M3, 18, 24, 349, 349E, 349E L, 349E L VG, 349F L, 3508B, 3516E, 352, 352F, 355, 374, 374F, 374F L, 390F, 390F L, 395, 6015, 6015B, 6020B, 6030, 6040, 621H, 621K, 637K, 725, 730, 735, 740, 740 GC, 740B, 745, 745C, 770G, 772G, 773, 775G, 777, 824K, 825K, 826K, 834, 834K, 836, 980, 982, 988K, 990K, 992, 993, AD45, AD63, C13, C13B, C15, C18, C27, C32, D10, D10T, D10T2, D11, D11T, D8, D8T, D9, D9T, MD6200, MD6250, MD6310, PL83, PL87, PM620, PM622, R1700K, R2900 XE, RM500B
Equipment Type	Excavators, Wheel Excavators, Wheel Loaders, Track Loaders, Skid Steer Loaders, Dozers, Motor Graders, Off-Highway Trucks, Compactors, Asphalt Pavers, Cold Planers, Engines
Part Source	Genuine OEM

Machine Model

14, 16, 16M3, 18, 24, 349, 349E, 349E L, 349E L VG, 349F L, 3508B, 3516E, 352, 352F, 355, 374, 374F, 374F L, 390F, 390F L, 395, 6015, 6015B, 6020B, 6030, 6040, 621H, 621K, 637K, 725, 730, 735, 740, 740 GC, 740B, 745, 745C, 770G, 772G, 773, 775G, 777, 824K, 825K, 826K, 834, 834K, 836, 980, 982, 988K, 990K, 992, 993, AD45, AD63, C13, C13B, C15, C18, C27, C32, D10, D10T, D10T2, D11, D11T, D8, D8T, D9, D9T, MD6200, MD6250, MD6310, PL83, PL87, PM620, PM622, R1700K, R2900 XE, RM500B

Equipment Type

Excavators, Wheel Excavators, Wheel Loaders, Track Loaders, Skid Steer Loaders, Dozers, Motor Graders, Off-Highway Trucks, Compactors, Asphalt Pavers, Cold Planers, Engines

Part Source

Genuine OEM
