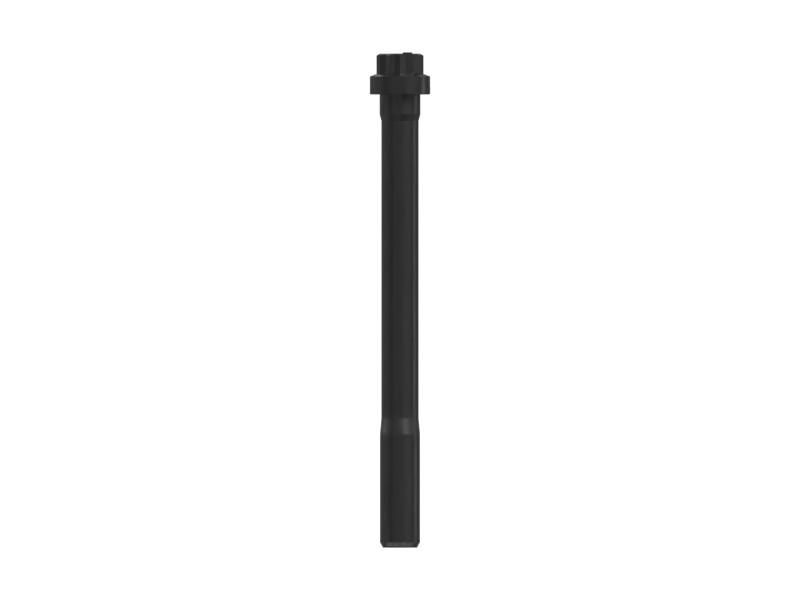

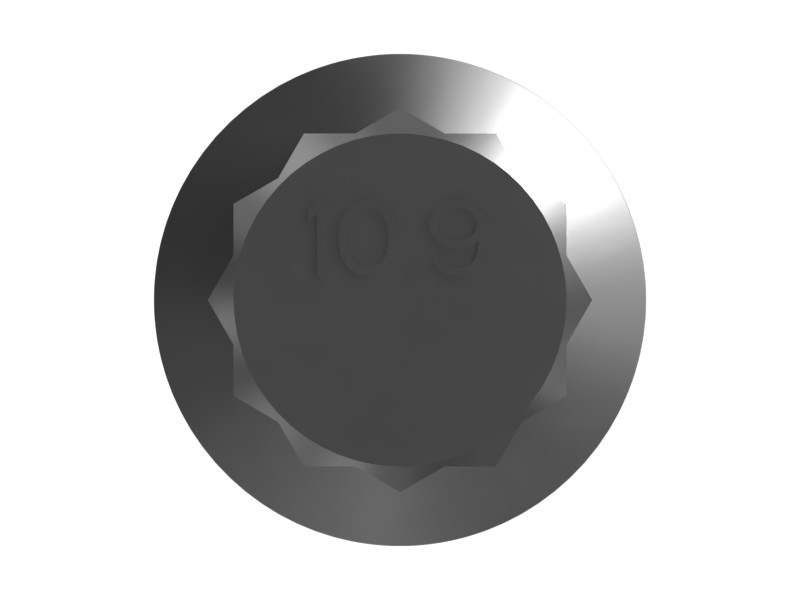

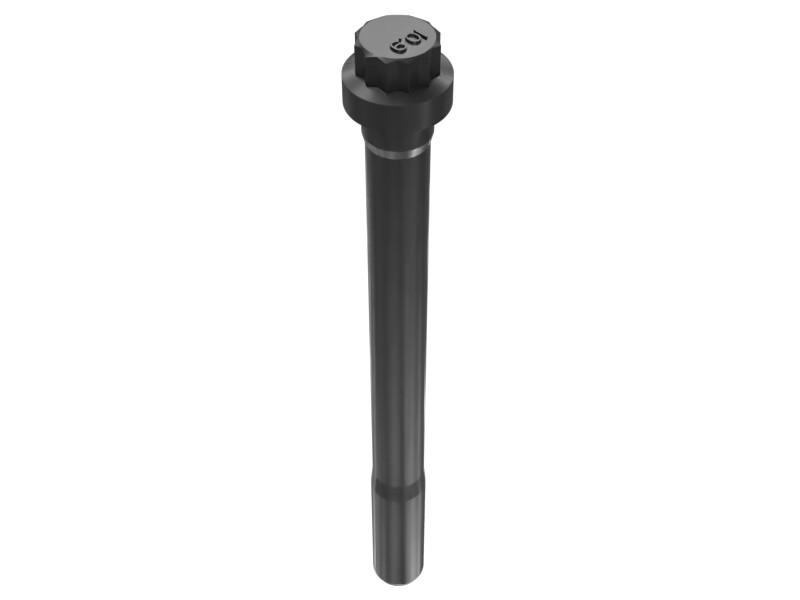

263-2915 M16X2 Thread 12-Point Head Bolt
Cat® M16x2 Thread 180 mm Long 12-Point Head Bolt for Cylinder Heads
Description
Cat® fastener parts are designed for specific applications based on size, strength, clamp load and past performance, information other manufacturers do not have. They are carefully selected to last until machine rebuild or end of life. Non-Cat hardware and fasteners may appear to fit your machine, but no one else knows your equipment the way we do.
These bolts are commonly used in engines and driveline. 12-point head bolts have high fatigue performance and fit designs that do not have enough clearance for hex head bolts.
Features
- Cat fasteners are manufactured to precise specifications for durability, reliability and high efficiency
- Strength and Quality – Fasteners meet or exceed ISO, ASTM, ASME and SAE requirements.
- Cat bolts, nuts and washers are specifically designed to work together as a system to maximize clamping force.
- Coating meets the special requirements of different applications (RoHS compliant).
Applications
Cat bolts form a high-performance system with mating hardened washers and nuts to produce consistent, high clamping force. You can trust Cat fasteners to help you build, maintain or rebuild in most machine and shop applications worldwide.
Specifications
| Class or Grade | Cat/ISO 898-1 Class 11.9 |
|---|---|
| Thread Size | M16 mm (0 in) |
| Thread Direction | RH |
| Locking Feature | None |
| Type | 12-Point Head Bolt |
| Bolt Length | 180 mm (7.087 in) |
| Bolt Type | 12 Point Head |
| Coating | Zinc Phosphate and Oil |
| Thread Size (Diameter × Pitch) | M16X2 mm |
| Handle Length | 135 mm (5.315 in) |
| Flange Diameter | 24 mm |
Compatible Equipment
- Generator Sets: C9
- Track Loaders: 973K, 972
- Cold Planers: PL72
- Motor Graders: 14, 349 GC, 12H
- Compactors: C9.3B, C-9
- Dozers: D7, D6R III, D6T, D6R, D6R II, D7E, D6R XL, D6T LGP, D6R LGP, D7R
- Excavators: 330D L, 350, 340, 336, 345 GC, 3516B, 336D2 L, 350MHPU, 336F L XE, 336D L, 330C, 336F LN, 336F, 330C L, 336F L, 330D, 336E, 336E L, 336D2 GC, 336D2 XE, 336E H, 336E LH, 336E LN, 637K, 637G, 637E, 340D2 L, 340D L, 336D2, 336D
- Wheel Loaders: 966, RM400, 966K, 972L, 966L
- Off-Highway Trucks: 725C2, 725
Additional information
| Machine Model | 12H, 14, 330C, 330C L, 330D, 330D L, 336, 336D, 336D L, 336D2, 336D2 GC, 336D2 L, 336D2 XE, 336E, 336E H, 336E L, 336E LH, 336E LN, 336F, 336F L, 336F L XE, 336F LN, 340, 340D L, 340D2 L, 345 GC, 349 GC, 350, 350MHPU, 3516B, 637E, 637G, 637K, 725, 725C2, 966, 966K, 966L, 972, 972L, 973K, C-9, C9, C9.3B, D6R, D6R II, D6R III, D6R LGP, D6R XL, D6T, D6T LGP, D7, D7E, D7R, PL72, RM400 |
|---|---|
| Equipment Type | Excavators, Wheel Loaders, Track Loaders, Dozers, Motor Graders, Off-Highway Trucks, Compactors, Cold Planers, Generator Sets |
| Part Source | Genuine OEM |
