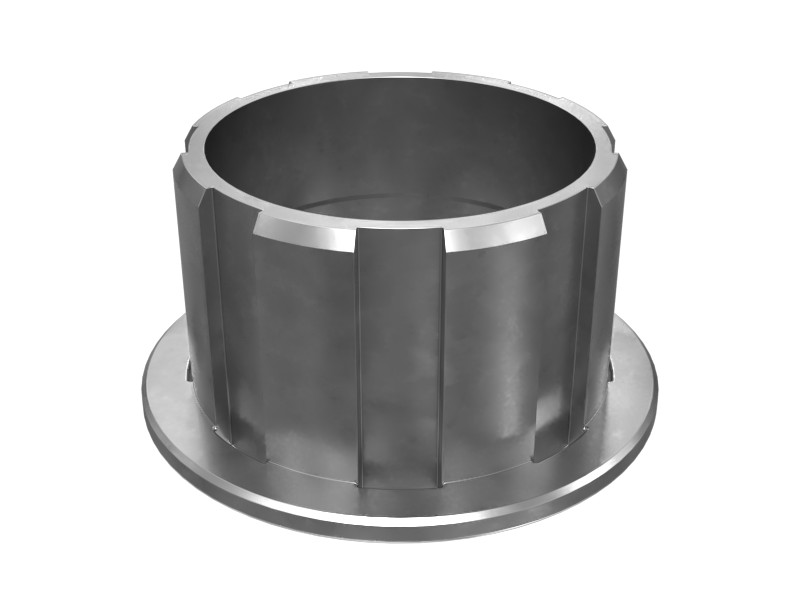

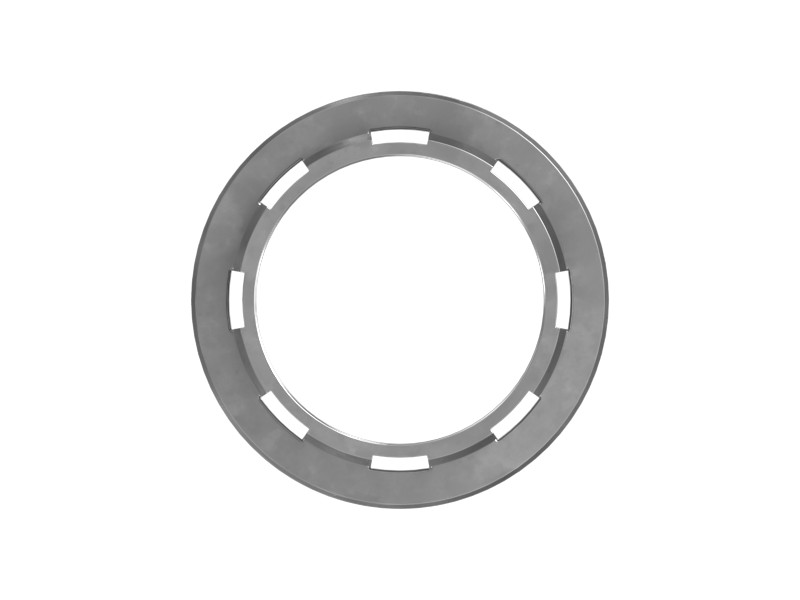

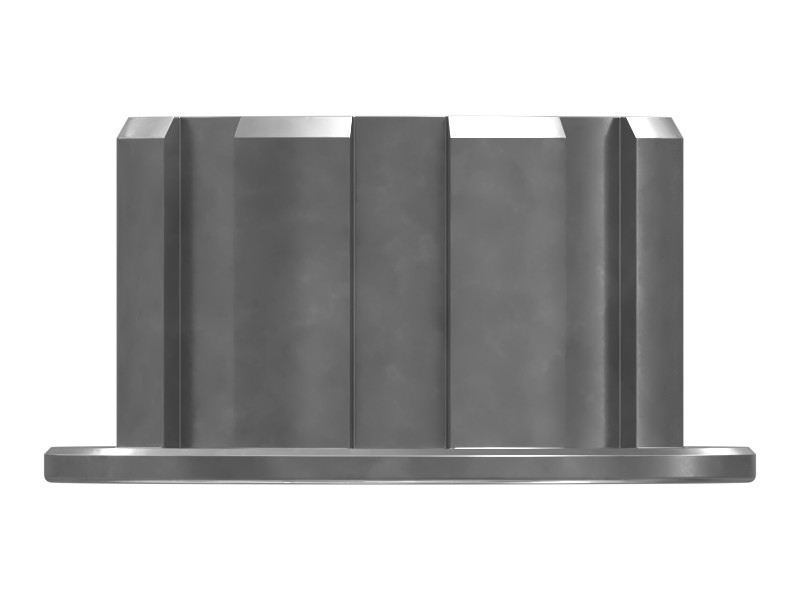

263-1649 Transmission Clutch Slider
Cat® forward transmission shaft, 70.1 mm inside diameter
Description
Description: Transmission clutch assembly used in the Cat motor grader product line
Service part for the assembly.
Features
- Material: Steel
- Outside Diameter: 101.5 mm (3.996 in)
- Inside Diameter: 70.1 mm (2.7598 in)
- Width: 52 mm (2.047 in) Applications:
Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Material | Alloy Steel |
|---|---|
| Outside Diameter | 101.5 mm (3.996 in) |
| Inside Diameter | 70.1 mm (2.759 in) |
| Width | 52 mm (2.047 in) |
Compatible Equipment
- Motor Graders: 16M, 16M3, 14, 14M, 16, 18
