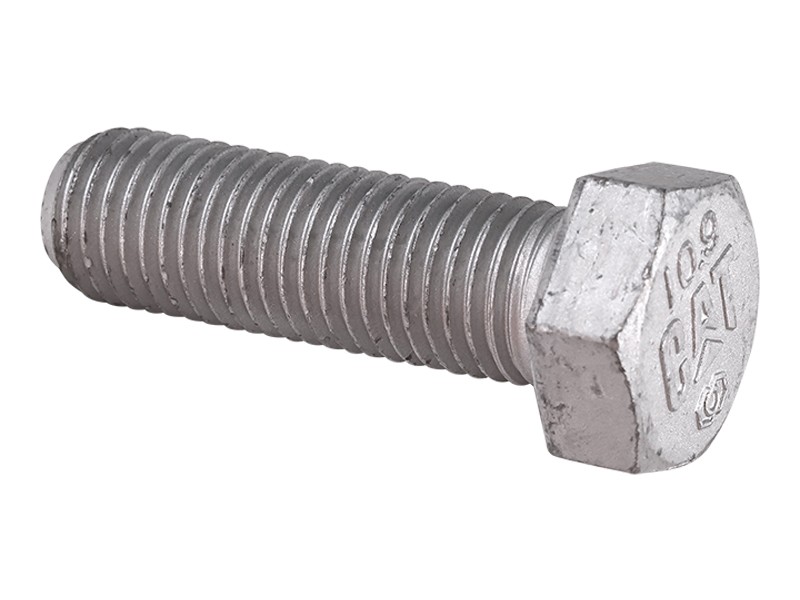

262-7686 M20X2.5 Hex Head Bolt
Cat® M20X2.5 hex head bolts can be easily gripped and tightened with a wrench, ensuring a secure connection in demanding applications.
Description
Cat® fastener parts are designed for specific applications based on size, strength, clamp load and past performance, information other manufacturers do not have. They are carefully selected to last until machine rebuild or end of life. Non-Cat hardware and fasteners may appear to fit your machine, but no one else knows your equipment the way we do.
Hex head bolts/screws provide extremely strong tapping performance.
Features
- Cat fasteners are manufactured to precise specifications for durability, reliability and high efficiency
- Strength and Quality – Fasteners meet or exceed ISO, ASTM, ASME and SAE requirements.
- Cat bolts, nuts and washers are specifically designed to work together as a system to maximize clamping force.
- Coating meets the special requirements of different applications (RoHS compliant).
Applications
Cat bolts form a high-performance system with mating hardened washers and nuts to produce consistent, high clamping force. You can trust Cat fasteners to help you build, maintain or rebuild in most machine and shop applications worldwide.
Specifications
| Thread Size | M20 mm (0 in) |
|---|---|
| Class or Grade | ISO 898-1 Class 10.9 |
| Locking Feature | None |
| Thread Direction | RH |
| Thread Size (Diameter × Pitch) | M20X2.5 mm |
| Bolt Length | 65 mm (2.559 in) |
| Bolt Type | Hex Head Bolt |
| Coating | Zinc Flake |
| Handle Length | 8 mm (0.295 in) |
Compatible Equipment
- Track Loaders: 992
- Cold Planers: PL83, PL87, PL72
- Dozers: D1, D11, D3K2 LGP, D5K2 XL, D5K LGP, D5K XL
- Mini Excavators: 305.5E2, 305E2, 301.7D CR
- Excavators: 6020B, 3508B, 349D L, 6030, 6040, 301.7D, 349D2 L, 349D2
- Wheel Loaders: 990H, R1700 XE, R2900 XE, R1700K
- Off-Highway Trucks: 7495
- Asphalt Pavers: AP355F
Additional information
| Machine Model | 301.7D, 301.7D CR, 305.5E2, 305E2, 349D L, 349D2, 349D2 L, 3508B, 6020B, 6030, 6040, 7495, 990H, 992, AP355F, D1, D11, D3K2 LGP, D5K LGP, D5K XL, D5K2 XL, PL72, PL83, PL87, R1700 XE, R1700K, R2900 XE |
|---|---|
| Equipment Type | Excavators, Mini Excavators, Wheel Loaders, Track Loaders, Dozers, Off-Highway Trucks, Asphalt Pavers, Cold Planers |
| Part Source | Genuine OEM |
