Description

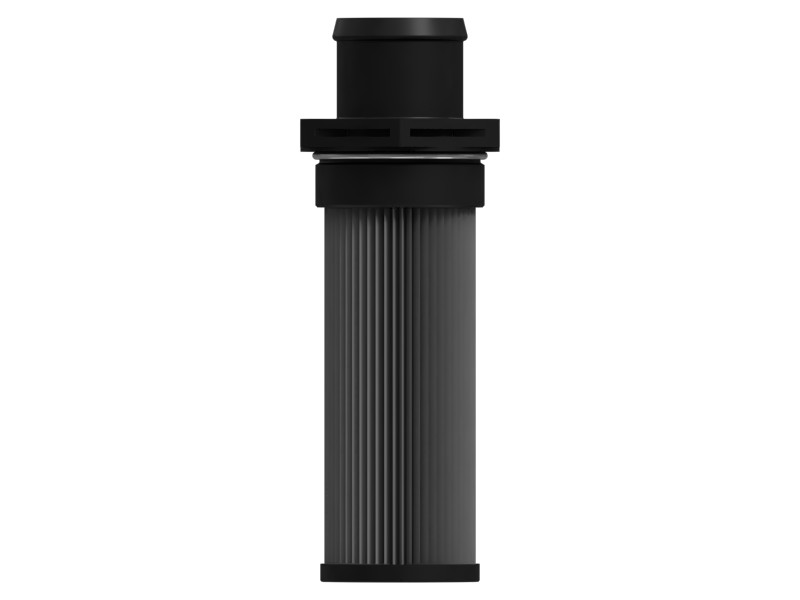

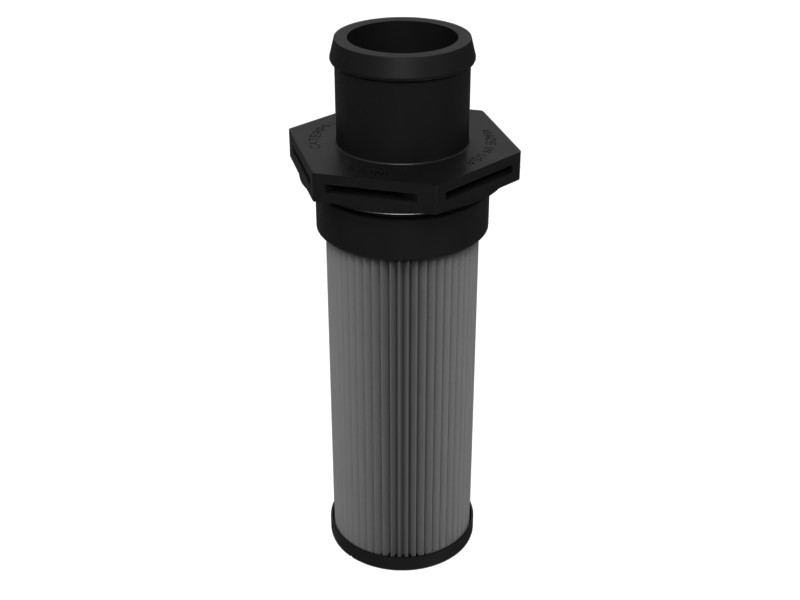

The screen filters dirt and debris from the hydraulic oil drawn from the hydraulic tank.
Features
- Pleated stainless steel braided wire cloth
- Nylon barbed hose and end caps
- Length: 283 mm (11.15 in)

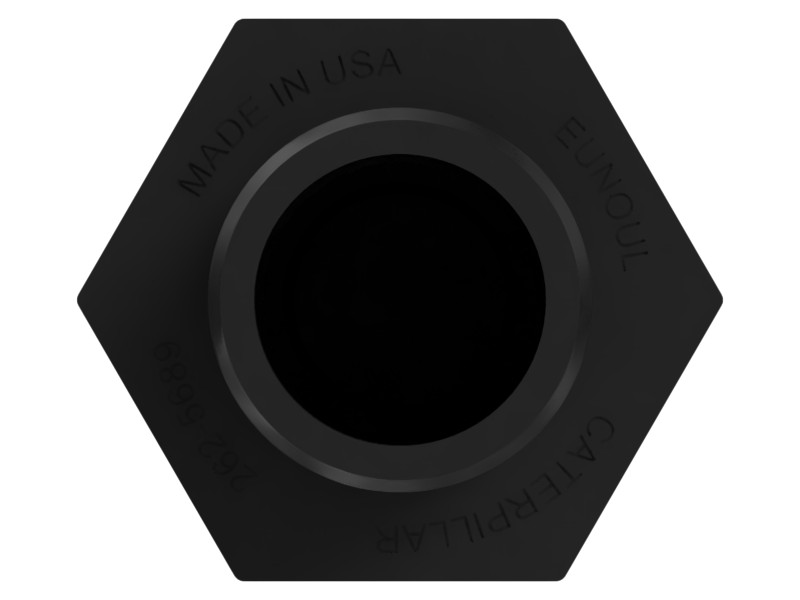

- Hex Size: 100 mm (3.94 in)
Specifications
| Material | Carbon Steel |
|---|---|
| Width | 110.9 mm (4.366 in) |
| Length | 283.1 mm (11.15 in) |
| Hex Size | 100 mm (3.94 in) |
| Weight | 0.97 kg (2.13 lb) |
Compatible Equipment
- Compactors: CW-34, CW-16
- Compact Track Loaders: 279D3, 299D3
- Mini Excavators: 305.5E, 305E2, 305.5E2, 305.5 GC
- Excavators: 305E2 CR, 302.7CR, 303CR, 303.5CR, 306E2, 306E, 303.5E2 CR
- Wheel Loaders: 938M, 924K, 938K, 924HZ, 928HZ, 926M
- Skid Steer Loaders: 262D3, 246D3, 236D3, 299D3 XE, 272D3, 259D3, 242D3, 246D, 289D3, 236D, 262D, 272D3 XE
Additional information
| Machine Model | 236D, 236D3, 242D3, 246D, 246D3, 259D3, 262D, 262D3, 272D3, 272D3 XE, 279D3, 289D3, 299D3, 299D3 XE, 302.7CR, 303.5CR, 303.5E2 CR, 303CR, 305.5 GC, 305.5E, 305.5E2, 305E2, 305E2 CR, 306E, 306E2, 924HZ, 924K, 926M, 928HZ, 938K, 938M, CW-16, CW-34 |
|---|---|
| Equipment Type | Excavators, Mini Excavators, Wheel Loaders, Compact Track Loaders, Skid Steer Loaders, Compactors |
| Part Source | Genuine OEM |
