Description

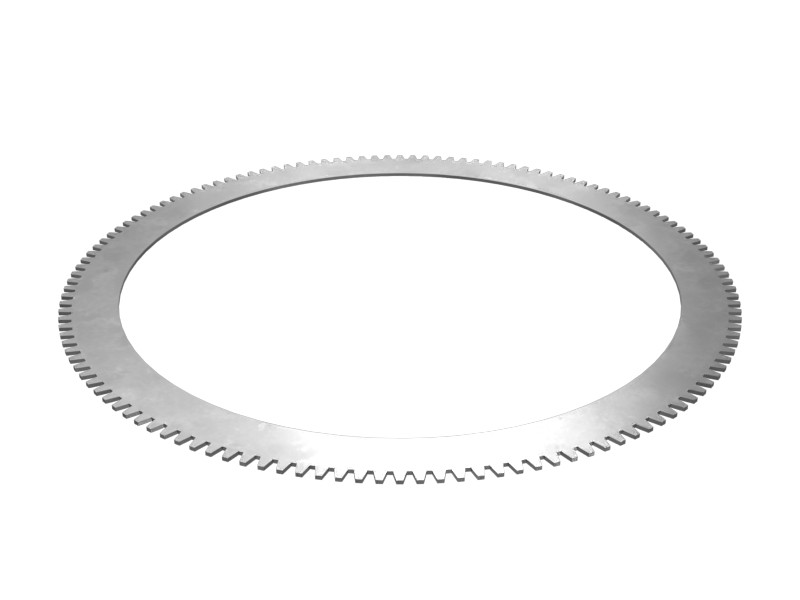

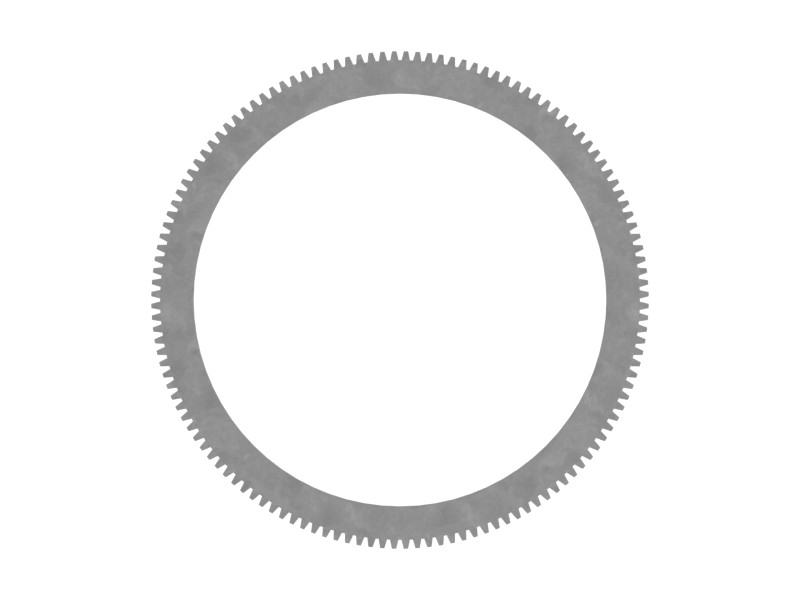

Cat powertrain components must withstand extremely high torque, high shock loads, and frequent direction and gear changes. Cat designs and manufactures transmission and final drive components with these demands in mind, ultimately improving powertrain durability and performance over the life of the machine. Cat clutch plates are used together with the friction discs in the torque converter disc clutch system.
Features
- Hardened steel reduces spline wear
- (132) tooth external spline ensures an accurate OEM fit
Applications
Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Material | Carbon Steel |
|---|---|
| Material Description | Steel |
| Outside Diameter | 424.63 mm (16.7177 in) |
| Inside Diameter | 353 mm (13.8976 in) |

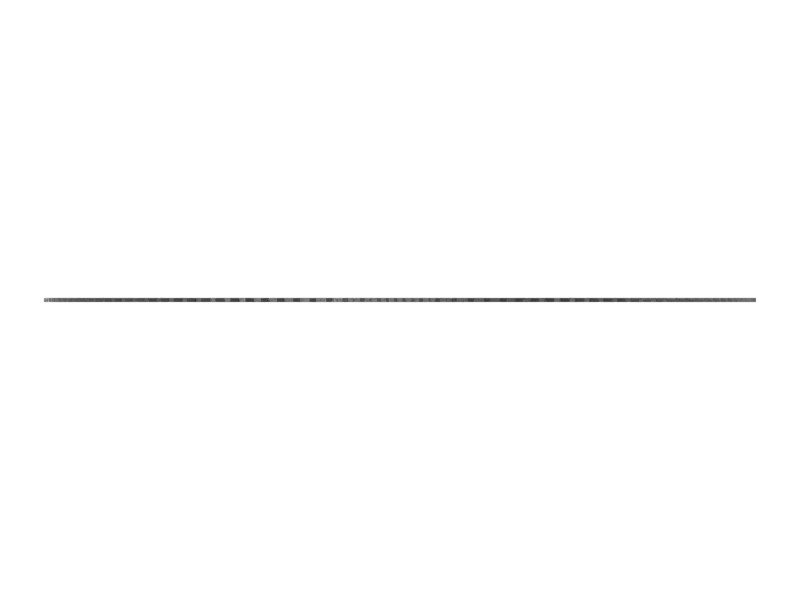

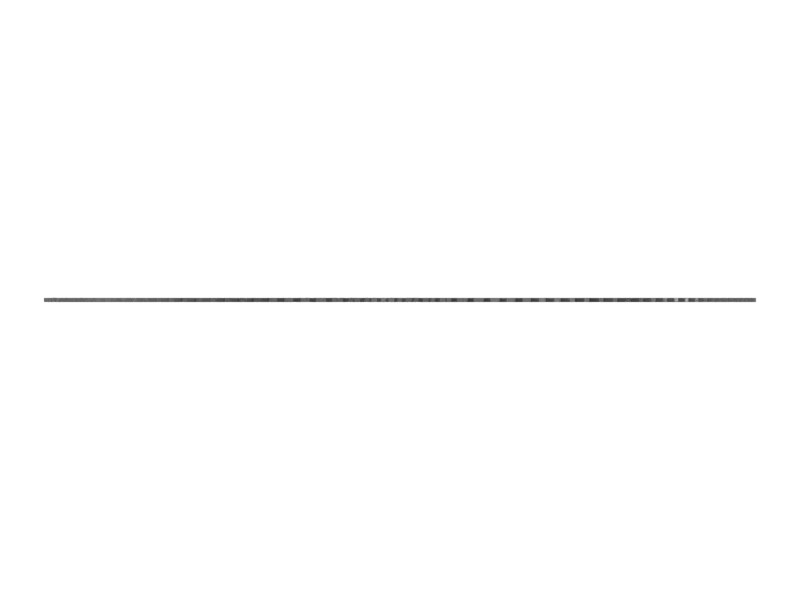

| Thickness | 2.31 mm (0.0909 in) |
Compatible Equipment
- Generator Sets: C9
- Compactors: C9.3B, C13B
- Engines: C13, C11, C15, C18
- Off-Highway Trucks: 730, 725, 745C, 740 GC, 735, 745, 740
