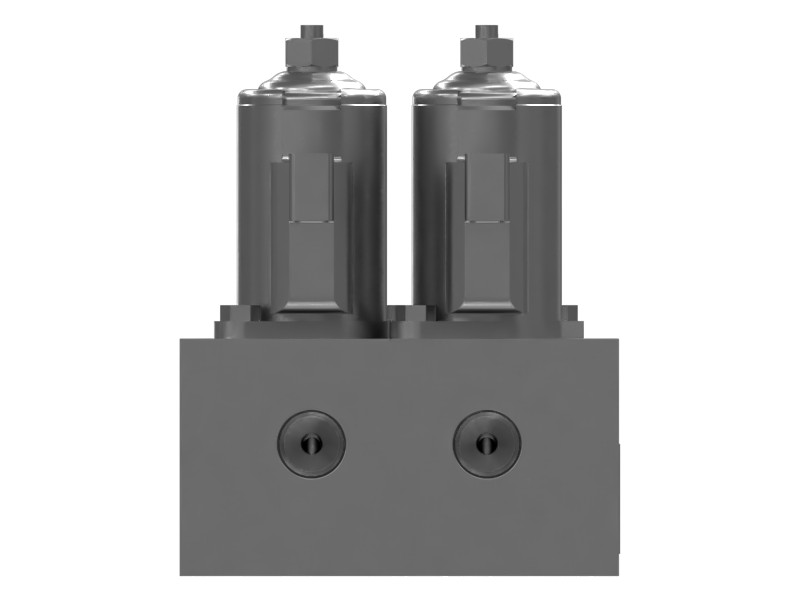

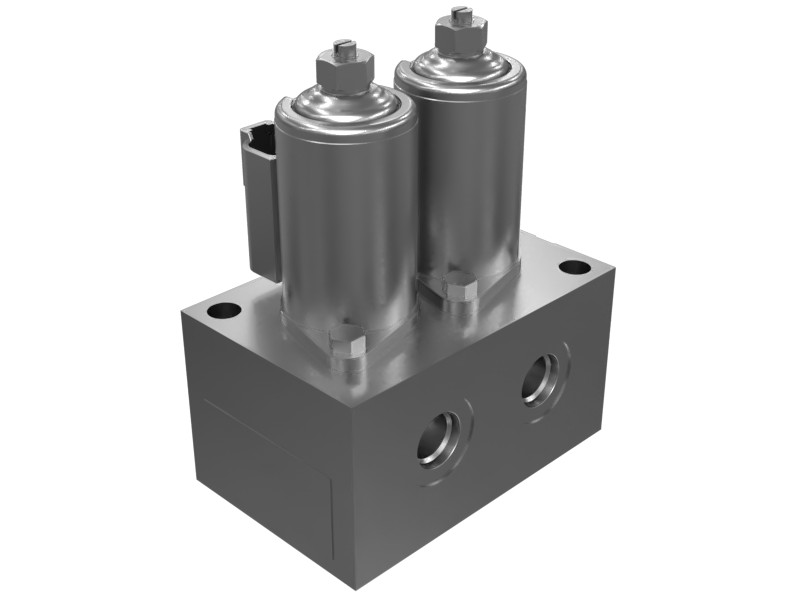

259-7430 Control Valve and Solenoid Valve Manifold Assembly

Description

Used in Cat machines to control the main implement valve through an integrated pilot valve.

Features

• Cast iron manifold
• Maximum Flow Rate: 10 L/min
• Fluid Type: Mineral Hydraulic Oil
• Standard-size ports
• Mounts with M8 fasteners

Applications

Refer to your Operation and Maintenance Manual or contact MECHSC for more information.

Specifications

Compatible Equipment

• Generator Sets: 3512B
• Motor Graders: 316F
• Excavators: 330D L, 349F L, 320, 350, 340, 333, 352, 312D L, 314D LCR, 314D CR, 355, 323, 315D L, 320 GC, 336, 320D FM, 324D L, 311D LRR, 326, 328D LCR, 320D L, 330GC, 312D, 336F, 336D L, 312D2, 336F L, 318D L, 336E H, 330D, 325D, 320D2 L, 336E, 336E L, 329E L, 323D L, 336D2 L, 325D L, 320E, 330 GC, 313F L, 329D L, 336 GC, 318D2 L, 336E LH, 336F LN, 320D RR, 315F LCR, 323D2 L, 336F L XE, 329E, 335F LCR, 312D2 L, 313D2, 312D2 GC, 330D2 L, 324D, 336D2 XE, 320D2 GC, 323D, 312E L, 312E, 336E LN, 318D2, 312F, 345D, 345D L, 349D L, 374F L, 349E L, 390F, 349, 349E L VG, 352F, 349E, 333 GC, 326 GC, 320D2, 320D, 330, 336D2, 326D2 L, 336D, 329D2, 329D2 L, 329D, 326D2, 349D2 L, 349D2, 374F, 349D, 390F L
