Description
Cat® fastener parts are designed for specific applications based on size, strength, clamp load and past performance, information other manufacturers do not have. They are carefully selected to last until machine rebuild or end of life. Non-Cat hardware and fasteners may appear to fit your machine, but no one else knows your equipment the way we do.
Hex head bolts/screws provide extremely strong tapping performance.
Features
- Cat fasteners are manufactured to precise specifications for durability, reliability and high efficiency
- Strength and Quality – Fasteners meet or exceed ISO, ASTM, ASME and SAE requirements.
- Cat bolts, nuts and washers are specifically designed to work together as a system to maximize clamping force.
- Coating meets the special requirements of different applications (RoHS compliant).
Applications
Cat bolts form a high-performance system with mating hardened washers and nuts to produce consistent, high clamping force. You can trust Cat fasteners to help you build, maintain or rebuild in most machine and shop applications worldwide.
Specifications
| Locking Feature | None |
|---|---|
| Thread Direction | RH |
| Class or Grade | Cat/ISO 898-1 Class 11.9 |
| Thread Size | M12 mm (0 in) |
| Thread Size (Diameter × Pitch) | M12X1.75 mm |
| Bolt Length | 40 mm (1.575 in) |

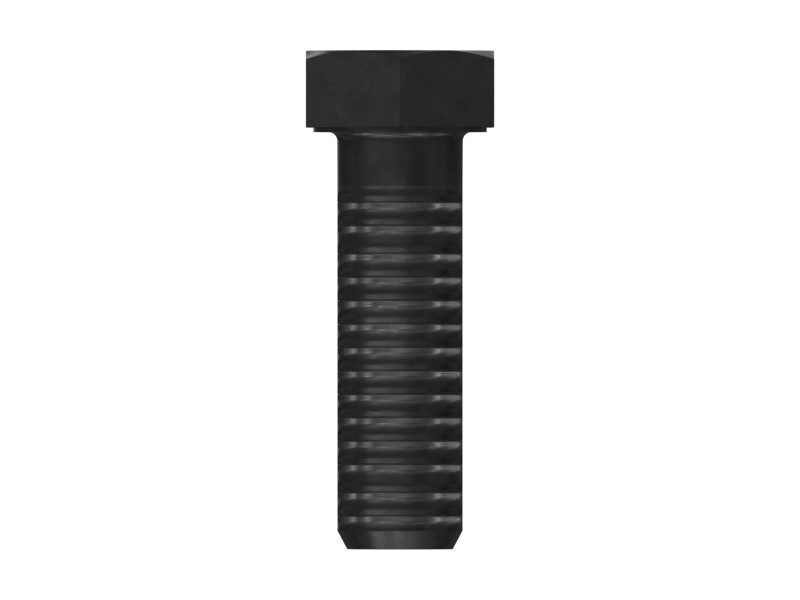

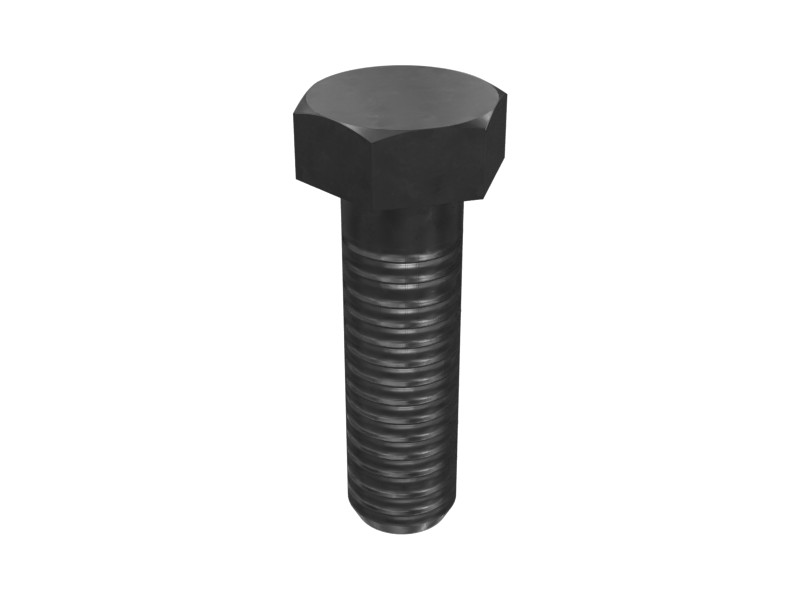

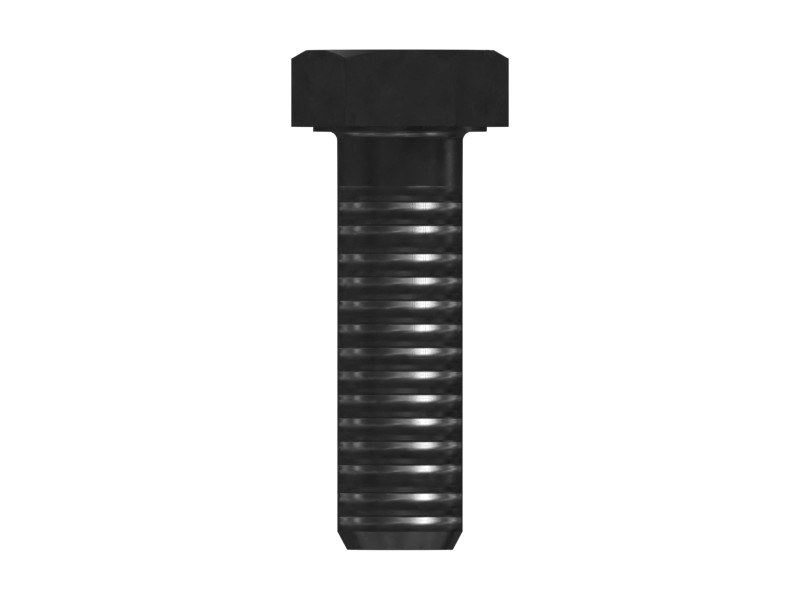

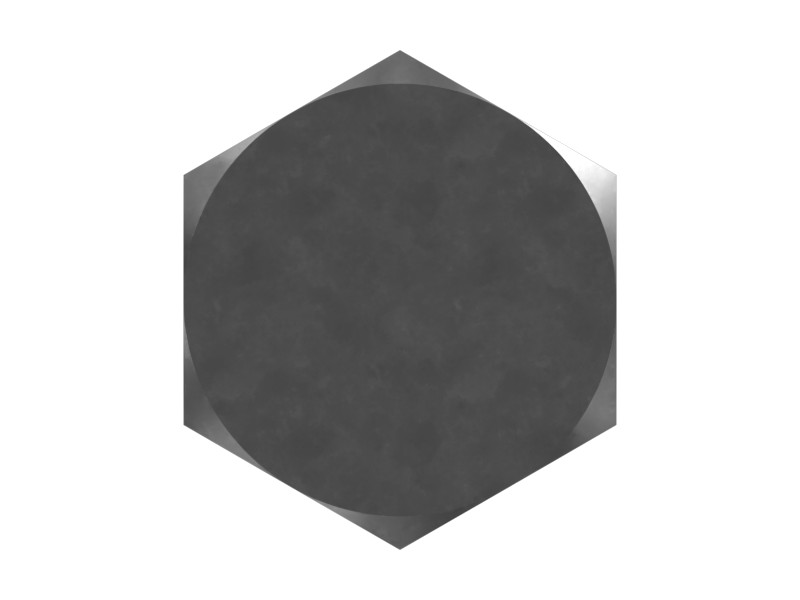

| Bolt Type | Hex Head Bolt |
| Coating | Zinc Flake |
| Handle Length | 5 mm (0.207 in) |
| Material | Low Alloy Steel |
Compatible Equipment
- Generator Sets: 3512B, G3516, 3516C, G3516C
- Track Loaders: 973K, 963K, 995, 963, 953, 826K, 994K, 992, 972, 982, 993, 990K, 953K
- Cold Planers: PL83, PL87, PM622, PM620, PL72
- Compactors: CB1.7, CS11, 834K, 815, 816, 814, 825K, 824K, CP54B, CS54B, CB16, CS7, CB13, CB10, CB15, CS-54B, CS64B
- Engines: C13, C15, C27, C32, C18, C175-16
- Excavators: 320D2, 349D2 L, 330, 320D, 349D2, 305C CR, 349F L, 316 GC, 313 GC, 374, 349, 352, 3516E, 349E L, 336, 340, 345C, 3516B, 320 GC, 330 GC, 345D L, 320D3 GC, 325, 355, 6020B, 320D3, 6040, 323, 333, 320D2 L, 349D L, 349E L VG, 637K, 432, 345C L, 330GC, 352F, 434F2, 323D L, 6060, 621H, 621K, 345 GC, 336D2 L, 312 GC, 350, 350MHPU, 326, 325D, 6015, 325D L, XQP200, 3512C, 336D L, 3508B, 395, 3101, 6015B, 336 GC, 6030, 349E, 320D2 GC
- Asphalt Pavers: AD45
- Skid Steer Loaders: 262D, 236D, 232D, 246D
- Motor Graders: 140 GC, 14, 160K, 12K, 140K, 18, 16, 16M3, 120
- Wheel Excavators: M315D, MD6250, MD6310, M315D2, M322D, M315, M320, M315GC, MD6200
- Dozers: D11T, D8T, D11R, D6K2, D6N, D5K2 XL, D9T, D10T2, D10T, D8R, D8, D4, D7R II, D11, D9, D3K2 LGP, D6T, D7
- Mini Excavators: 308, 307
- Wheel Loaders: 980, 950H, R1700K, 972H, R3000H, M314, 988K, 980L, 972G, 966H, 966K, 950 GC, 834, R1700 XE, 966, RM400, 972L, 836, 906K, 966L, R2900 XE
- Off-Highway Trucks: 793D, 794 AC, 796 AC, 793, 775G, 770G, 772G, 777, 793F, 773, 798 AC, 789D, 745, 740, 777D, 777E, 797F, 7495, 740 GC, 785D, 789, 785, 745C, 740B, 735
