Description
Cat® fastener parts are designed for specific applications based on size, strength, clamp load and past performance, information other manufacturers do not have. They are carefully selected to last until machine rebuild or end of life. Non-Cat hardware and fasteners may appear to fit your machine, but no one else knows your equipment the way we do.

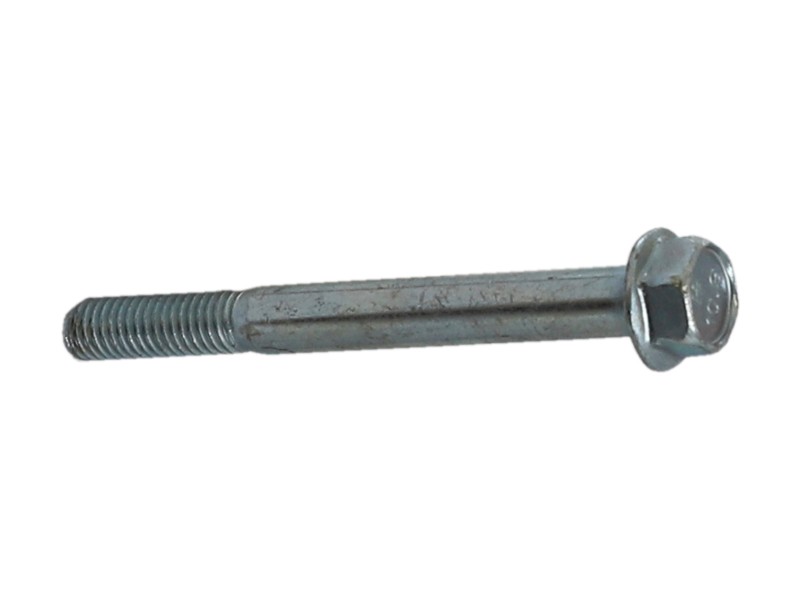

These bolts are used where a separate washer is not needed.
Features
- Cat fasteners are manufactured to precise specifications for durability, reliability and high efficiency
- Strength and Quality – Fasteners meet or exceed ISO, ASTM, ASME and SAE requirements.
- Cat bolts, nuts and washers are specifically designed to work together as a system to maximize clamping force.
- Coating meets the special requirements of different applications (RoHS compliant).
Applications
Cat bolts form a high-performance system with mating hardened washers and nuts to produce consistent, high clamping force. You can trust Cat fasteners to help you build, maintain or rebuild in most machine and shop applications worldwide.
Specifications
| Thread Size | M8 mm (0 in) |
|---|---|
| Class or Grade | ISO 898-1 Class 10.9 |
| Thread Size (Diameter × Pitch) | M8x1.25 mm |
| Locking Feature | None |
| Remarks | Thread Length (mm) 58 |
| Thread Direction | RH |
| Bolt Length | 80 mm (0 in) |
| Bolt Type | 0 |
| Coating | 0 |
| Handle Length | 0 mm (0 in) |
Compatible Equipment
- Generator Sets: C9
- Engines: C7, C15, C18
- Compactors: C-9
- Excavators: 330D L, M325D L MH, 324D L, 329D L, 336D L, 325C, 324D, 336D2 L, 325D L, 330C L, 328D LCR, 330D, 330C, 336D2 XE, 325C L, 325D, 326D L, 345C, 336D2 GC, 340D2 L, 365C L, 349D L, 345D L, 365C, 385C, 385C L, 345C L, 345D, 385C FS, 390D, 340D L, 336D2, 336D, 329D, 349D, 349D2 L, 349D2, 374D L, 390D L
- Wheel Loaders: 966M, 972M
- Skid Steer Loaders: 3126B
Additional information
| Machine Model | 3126B, 324D, 324D L, 325C, 325C L, 325D, 325D L, 326D L, 328D LCR, 329D, 329D L, 330C, 330C L, 330D, 330D L, 336D, 336D L, 336D2, 336D2 GC, 336D2 L, 336D2 XE, 340D L, 340D2 L, 345C, 345C L, 345D, 345D L, 349D, 349D L, 349D2, 349D2 L, 365C, 365C L, 374D L, 385C, 385C FS, 385C L, 390D, 390D L, 966M, 972M, C-9, C15, C18, C7, C9, M325D L MH |
|---|---|
| Equipment Type | Excavators, Wheel Loaders, Skid Steer Loaders, Compactors, Engines, Generator Sets |
| Part Source | Genuine OEM |
