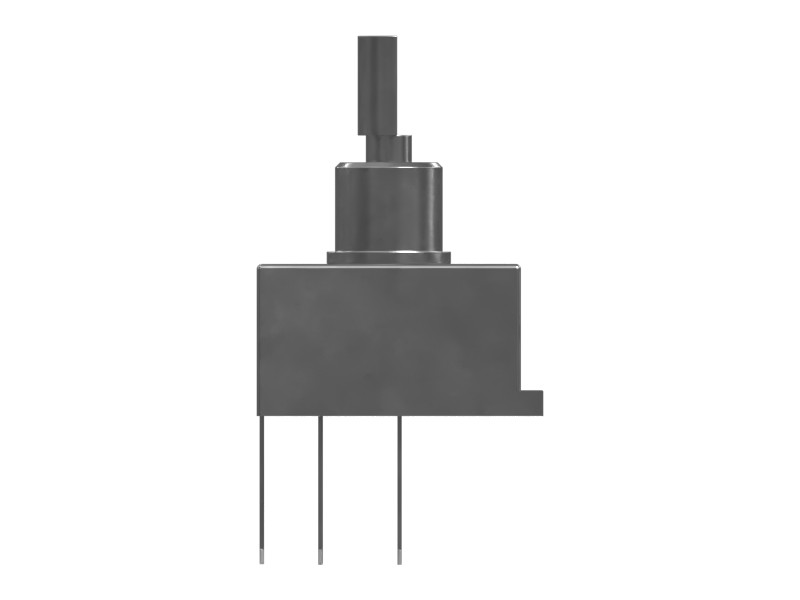

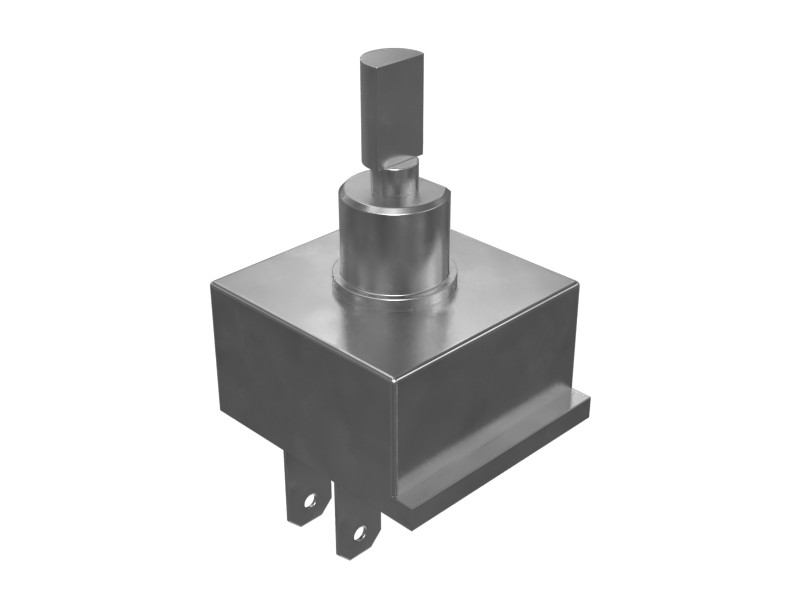

258-4272 12 Volt DC Blower Fan Speed Switch
Cat® blower fan speed switch for the cab heater dash panel provides multiple fan speed settings to suit different comfort requirements
Description
Cat switches are used to control the fan speed of the air and temperature control panel in the operator cab.
Features
- 3-speed rotary switch
- Type: DP3T
- Function: Off-Low-Medium-High
- Number of Terminals: 5
- Rated Current: 25 Amps
- Voltage: 12 V
Applications
Used in the operator cab on Cat machines. Refer to your Operation and Maintenance Manual or contact MECHSC for more information. Cat parts are built to work in heavy-duty applications with severe vibration, shock, extreme operating temperature ranges, thermal cycling, thermal shock, humidity, corrosion, and dust.
Specifications
| Length | 54.1 mm (2.13 in) |
|---|---|
| Width | 29.2 mm (1.15 in) |
| Height | 26.9 mm (1.06 in) |
| Shaft Diameter | 6.35 mm (0.25 in) |
| Thread Size | 7/16-28 in |
Compatible Equipment
- Compact Track Loaders: 299D3, 279D3
- Mini Excavators: 307, 305E2, 305.5E2, 307E2, 308E2, 305.5E, 305.5 GC
- Excavators: 305E2 CR, 313F LGC, 306E2, 308E, 307E, 303.5E2 CR
- Skid Steer Loaders: 262D3, 246D3, 249D3, 239D3, 236D3, 242D3, 289D3, 232D, 299D3 XE, 232D3, 262D, 236D, 246D, 259D3, 246C, 272D3, 262C, 272D3 XE, 226D3, 279C
Additional information
| Machine Model | 226D3, 232D, 232D3, 236D, 236D3, 239D3, 242D3, 246C, 246D, 246D3, 249D3, 259D3, 262C, 262D, 262D3, 272D3, 272D3 XE, 279C, 279D3, 289D3, 299D3, 299D3 XE, 303.5E2 CR, 305.5 GC, 305.5E, 305.5E2, 305E2, 305E2 CR, 306E2, 307, 307E, 307E2, 308E, 308E2, 313F LGC |
|---|---|
| Equipment Type | Excavators, Mini Excavators, Compact Track Loaders, Skid Steer Loaders |
| Part Source | Genuine OEM |
