Description

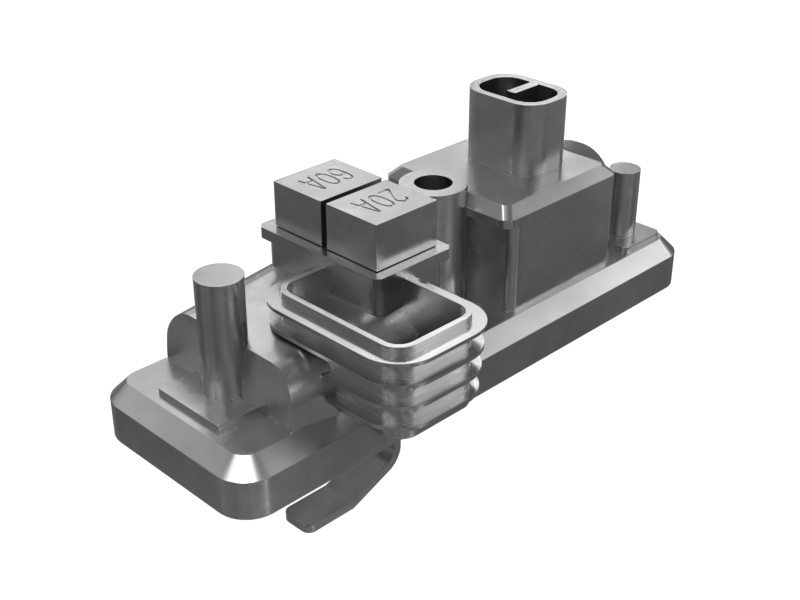

The Power Relay Module (PRM) is designed for high-current applications.
Features
- Rated PRM: 70 A, 12 VDC
- Relay Protection Fuse: 60 A
- Non-Switched Inline Fuse: 20 A
- Input Stud: M8
- Output Stud: M6
- With cover
- Counter-rotation feature (CRF)
Applications
Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Material | Nylon, 6, 6/12, 6/6 Plastic |
|---|---|
| Overall Length | 121.21 mm (4.77 in) |
| Overall Width | 40 mm (1.57 in) |
| Overall Height | 57.9 mm (2.28 in) |
Compatible Equipment
- Skid Steer Loaders: 262D, 216B3, 236D, 279C, 246D, 246C, 226B3, 236B3, 232D, 262C
