Description

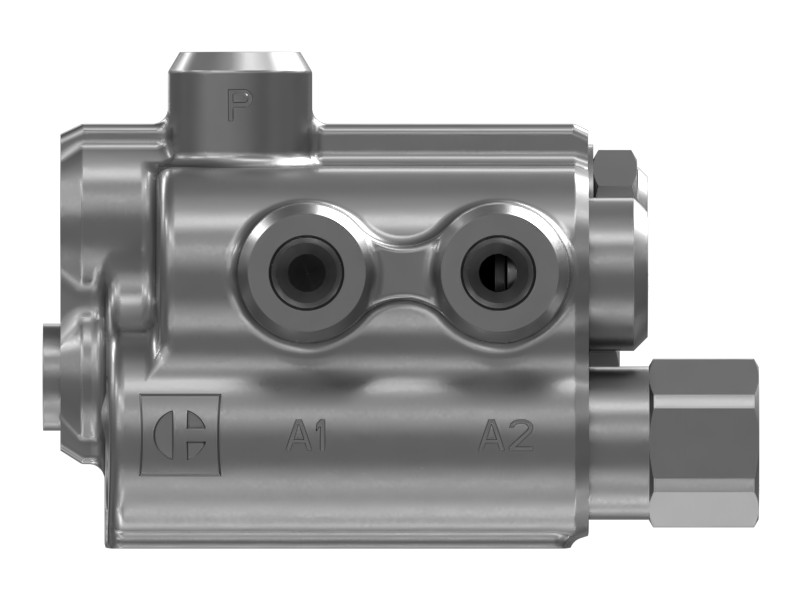

The Cat valve is used to regulate the pressure stored in the hydraulic accumulator.
Features
- For use with Caterpillar Hydo, Bio-HYDO, or water-glycol hydraulic oil
- Tank, accumulator, and pressure port size: SAE No. 6, 9/16-18 UN
- Switch port size: SAE No. 8, 3/4-16 UNF
- Relief valve setting: 15860-17240 kPa (2300-2500 psi)
- Standby pressure: 4310 kPa (625 psi)
- Accumulator charge rate: 15.1 LPM (nominal) at 6900 kPa
Applications
Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Material | Carbon Steel |
|---|---|
| Overall Length | 149.86 mm (5.9 in) |
| Overall Width | 96.52 mm (3.8 in) |
| Overall Height | 104.14 mm (4.1 in) |
Compatible Equipment
- Wheel Loaders: R1300G, R1700G, R1600H
- Asphalt Pavers: AD30
Additional information
| Machine Model | |
|---|---|
| Equipment Type | |
| Part Source | Genuine OEM |
