Description
Cat® fastener parts are designed for specific applications based on size, strength, clamp load and past performance, information other manufacturers do not have. They are carefully selected to last until machine rebuild or end of life. Non-Cat hardware and fasteners may appear to fit your machine, but no one else knows your equipment the way we do.
These bolts are used where a separate washer is not suitable.
Features
- Cat fasteners are manufactured to precise technical specifications for durability, reliable performance, and high efficiency
- Strength and Quality – Fasteners meet or exceed ISO, ASTM, ASME, and SAE requirements.
- Cat bolts, nuts, and washers are designed as a system that works together to maximize clamping force.
- Coatings meet the special requirements of different applications (RoHS compliant).
Applications
Cat bolts form a performance-based system with mating hardened washers and nuts to produce consistent, high clamping force. You can trust Cat fasteners to help you build, maintain or rebuild in most machine and shop applications worldwide.
Specifications
| Thread Direction | RH |
|---|---|
| Thread Size | M10 mm (0 in) |
| Remarks | Thread Length (mm) 3.75 |
| Locking Feature | None |
| Thread Size (Diameter × Pitch) | M10x1.25 mm |
| Class or Grade | ISO 898-1 Class 8.8 |
| Bolt Length | 25 mm (0.984 in) |

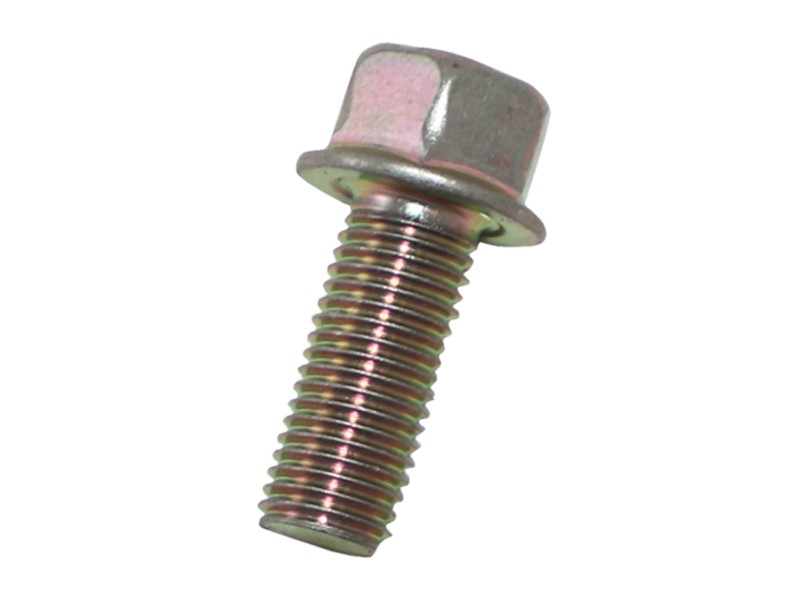

| Bolt Type | Hex Flange Head |
| Coating | Zinc |
| Handle Length | 3.75 mm (0.148 in) |
Compatible Equipment
- Excavators: 320D FM, 320D L, 320C, 323D L, 320D RR, 320D GC, 320C L, 320D
