Description

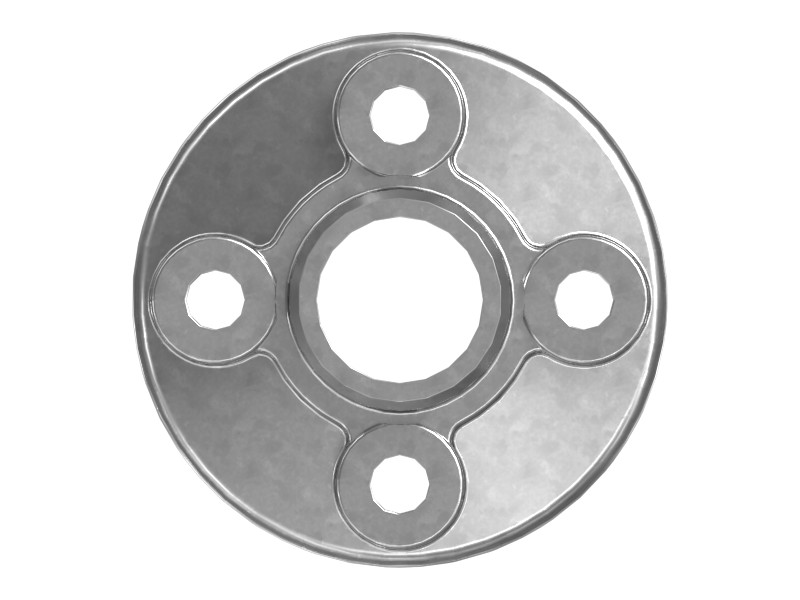

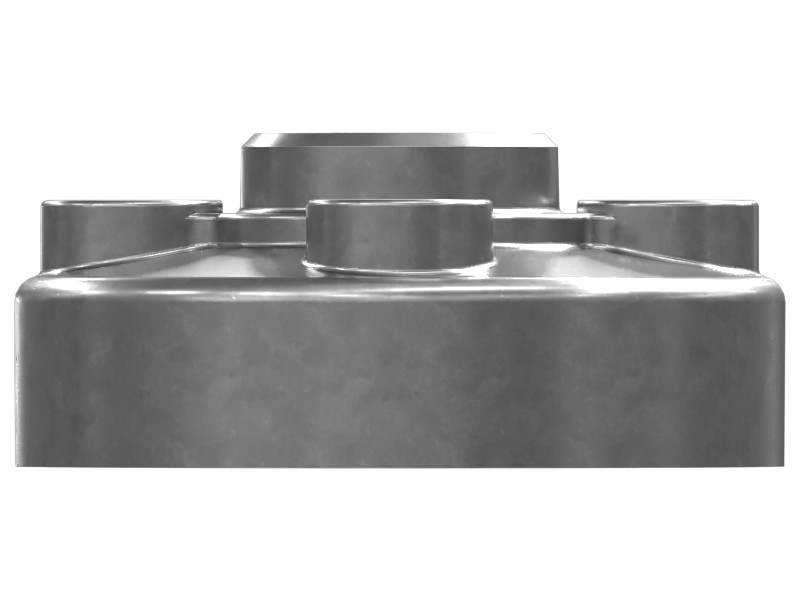

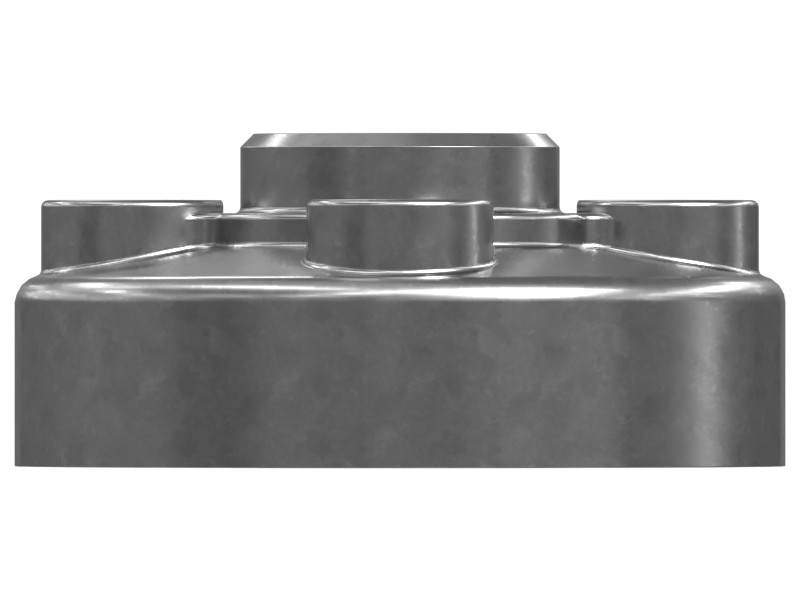

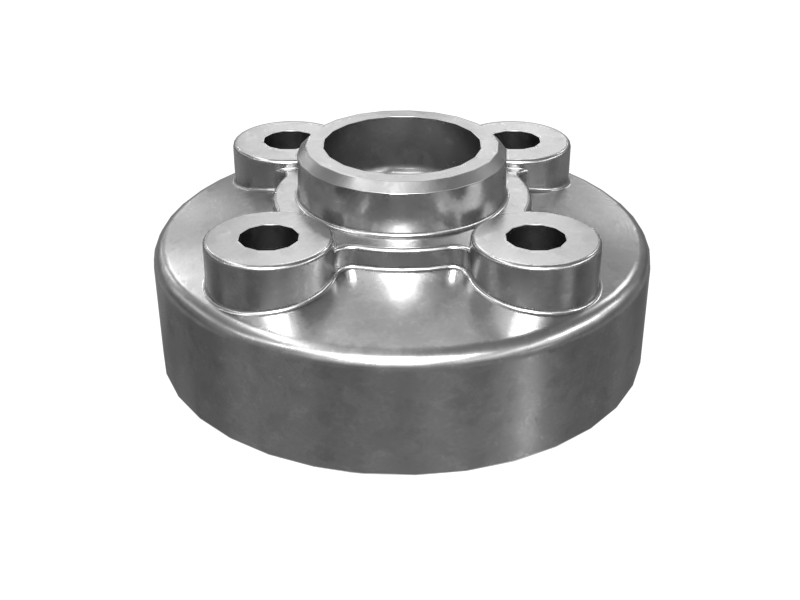

Fan retainer plates (such as 255-1297) are used in the fan extension assembly of the engine cooling system.
Cat lock plates are designed and manufactured to high standards to ensure proper operation and avoid any failure. Cat lock plates are suitable for different applications that meet customer specifications.
Features
- Cast aluminum plate
- Inside Diameter: 24 mm (0.95 in)
- Outside Diameter: 58 mm (2.28 in)
- Height: 25 mm (0.95 in)
- Used with M6x1 fasteners, 4 locations.
Applications
Used in the fan extension assembly in the engine cooling system. Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Height | 25 mm (0.95 in) |
|---|---|
| Hole Size | 6.5-7.5 (4X) mm (0.26-0.30 (4X) in) |
| Inside Diameter | 24 mm (0.95 in) |
| Material | Cast Aluminum |
| Outside Diameter | 58 mm (2.28 in) |
Compatible Equipment
- Mini Excavators: 301.7CR, 302CR, 301.5
- Excavators: 301.8, 301.6, 303.5CR
Additional information
| Machine Model | |
|---|---|
| Equipment Type | |
| Part Source | Genuine OEM |
