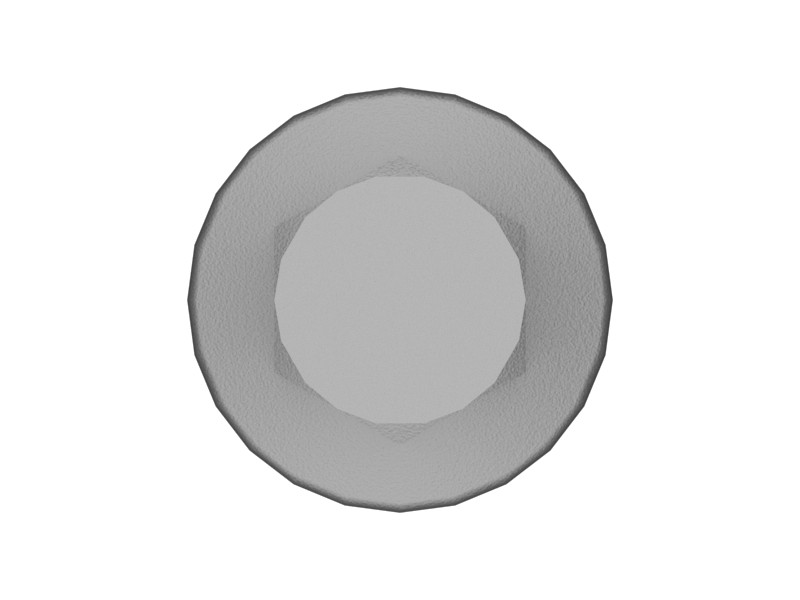

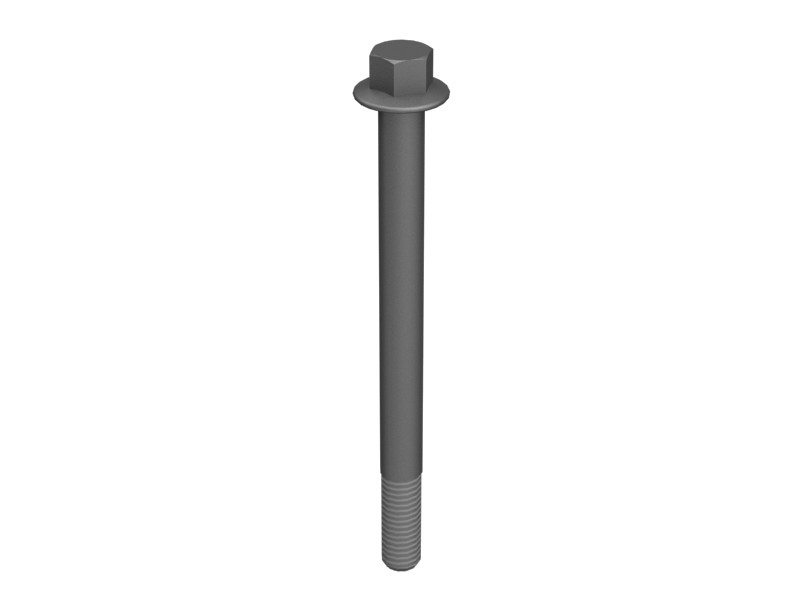

255-1281 M8 Flanged Hex Head Bolt

Description

Cat® fastener parts are designed for specific applications based on size, strength, clamp load and past performance, information other manufacturers do not have. They are carefully selected to last until machine rebuild or end of life. Non-Cat hardware and fasteners may appear to fit your machine, but no one else knows your equipment the way we do.

These bolts are used where a separate washer is not needed.

Features

Cat fasteners are manufactured to precise specifications for durability, reliability and high efficiency
Strength and Quality – Fasteners meet or exceed ISO, ASTM, ASME and SAE requirements.
Cat bolts, nuts and washers are specifically designed to work together as a system to maximize clamping force.
Coating meets the special requirements of different applications (RoHS compliant).

Applications

Cat bolts form a high-performance system with mating hardened washers and nuts to produce consistent, high clamping force. You can trust Cat fasteners to help you build, maintain or rebuild in most machine and shop applications worldwide.

Specifications

Thread Direction	RH
Hex Size	10 mm (0.4 in)
Class or Grade	ISO 898-1 Class 10.9
Locking Feature	None
Thread Size	M8 mm (0 in)
Bolt Length	100 mm (3.94 in)
Material	STEEL
Bolt Type	Flange Head Bolt
Coating	Zinc Plated
Thread Size (Diameter × Pitch)	M8 X 1.25 mm
Handle Length	78 mm (3.07 in)
Flange Type	Smooth Flange Face
Flange Diameter	17 mm

Compatible Equipment

Track Loaders: 972, 982, 953D, 963D
Cold Planers: PL87, PL61, PL83, PL72
Compactors: CP54B, CS11, CS54B, CS12, CS56B, CS79B, CP56B, CS78B, CS7, CS68B, CB16, CB-66B, CB-64B, CW-34, CB-44B, C9.3B, C13B, CB13, CB15, CB10, CS64B, CS-54B
Engines: C27, C15, C13, C32, C11, C18
Excavators: 390F L, 305, 374F, 349F L, 374, 305 CR, 336E, 336F, 340, 336E L, 336, 355, 352, 3101, 349E L VG, 621K, 349E L, 374F L, 349, 621H, 434F2, 6060, 352F, 432, 6020B, 345 GC, 350, 395, 350MHPU, 336F L, 6040, 336F LN, 336F L XE, 336E LN, 313F LGC, 336E LH, 336E H, 390F, 349E, 416F2, 428F
Skid Steer Loaders: 24
Motor Graders: 16M, 349 GC, 14, 14M
Wheel Excavators: MD6250, MD6200, MD6310
Dozers: D11, D8, D9T, D6N, D8T, D6T LGP, D6T, D5N, D7, D9, D10, D10T2, D11T
Mini Excavators: 308, 310
Wheel Loaders: 980, RM400, 926M, 938K, 924K, 966, RM500B, 972L, 966K, 966L, 980L, 938M, 910, R2900 XE
Off-Highway Trucks: 773, 777, 785, 789, 793, 745, 730, 740B, 740, 775G, 745C, 725, 740 GC, 725C2

Machine Model	14, 14M, 16M, 24, 305, 305 CR, 308, 310, 3101, 313F LGC, 336, 336E, 336E H, 336E L, 336E LH, 336E LN, 336F, 336F L, 336F L XE, 336F LN, 340, 345 GC, 349, 349 GC, 349E, 349E L, 349E L VG, 349F L, 350, 350MHPU, 352, 352F, 355, 374, 374F, 374F L, 390F, 390F L, 395, 416F2, 428F, 432, 434F2, 6020B, 6040, 6060, 621H, 621K, 725, 725C2, 730, 740, 740 GC, 740B, 745, 745C, 773, 775G, 777, 785, 789, 793, 910, 924K, 926M, 938K, 938M, 953D, 963D, 966, 966K, 966L, 972, 972L, 980, 980L, 982, C11, C13, C13B, C15, C18, C27, C32, C9.3B, CB-44B, CB-64B, CB-66B, CB10, CB13, CB15, CB16, CP54B, CP56B, CS-54B, CS11, CS12, CS54B, CS56B, CS64B, CS68B, CS7, CS78B, CS79B, CW-34, D10, D10T2, D11, D11T, D5N, D6N, D6T, D6T LGP, D7, D8, D8T, D9, D9T, MD6200, MD6250, MD6310, PL61, PL72, PL83, PL87, R2900 XE, RM400, RM500B
Equipment Type	Excavators, Mini Excavators, Wheel Excavators, Wheel Loaders, Track Loaders, Skid Steer Loaders, Dozers, Motor Graders, Off-Highway Trucks, Compactors, Cold Planers, Engines
Part Source	Genuine OEM
