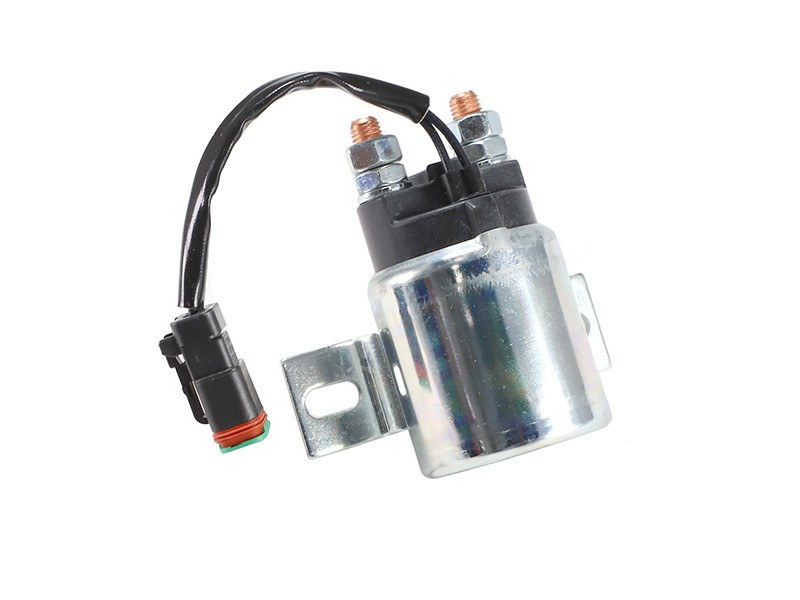

254-3783 24 Volt Magnetic Switch
Cat® 24 Volt Magnetic Switch for Opening and Closing Circuits Using a Magnetic Field
Description
Cat parts ensure your equipment runs at its best. The Cat magnetic contactor switch is an electromechanical switch used to safely turn high-current components on or off.
Features
- 2-bolt mounting
- 2-pin connector
- Highly durable
Applications
Used in the electrical systems of heavy-duty equipment. Refer to your Operation and Maintenance Manual or contact MECHSC for more information. Cat components are built to work in heavy-duty applications, including severe vibration, shock, extreme operating temperature ranges, thermal cycling, thermal shock, humidity, corrosion, and excessive dust.
Specifications
| Material | Carbon Steel |
|---|
Compatible Equipment
- Motor Graders: 12H, 120H, 140H, 16H
- Track Loaders: 824G, 826G
- Wheel Excavators: IT14G
- Compactors: CS-563E, CW-34, CS-583D, CS-56, CS-54, CS-533E
- Dozers: D7R II, D6R, D6R II, D6N, D10R, D11R, D9R, D7G2, D6G2 XL, D7R, D6G2 LGP, D6M
- Wheel Loaders: 950G, 962G, R1600H, R1300G, R2900G, R3000H, R1700G, R1700K, 924GZ, R1700 XE, 928G, 972G, 980G, R2900 XE, 980H
- Off-Highway Trucks: 735, 730, 740, 771D, 773E, 725
- Asphalt Pavers: AD63, AP-600D, AD45, AD30
Additional information
| Machine Model | 120H, 12H, 140H, 16H, 725, 730, 735, 740, 771D, 773E, 824G, 826G, 924GZ, 928G, 950G, 962G, 972G, 980G, 980H, AD30, AD45, AD63, AP-600D, CS-533E, CS-54, CS-56, CS-563E, CS-583D, CW-34, D10R, D11R, D6G2 LGP, D6G2 XL, D6M, D6N, D6R, D6R II, D7G2, D7R, D7R II, D9R, IT14G, R1300G, R1600H, R1700 XE, R1700G, R1700K, R2900 XE, R2900G, R3000H |
|---|---|
| Equipment Type | Wheel Excavators, Wheel Loaders, Track Loaders, Dozers, Motor Graders, Off-Highway Trucks, Compactors, Asphalt Pavers |
| Part Source | Genuine OEM |
