Description

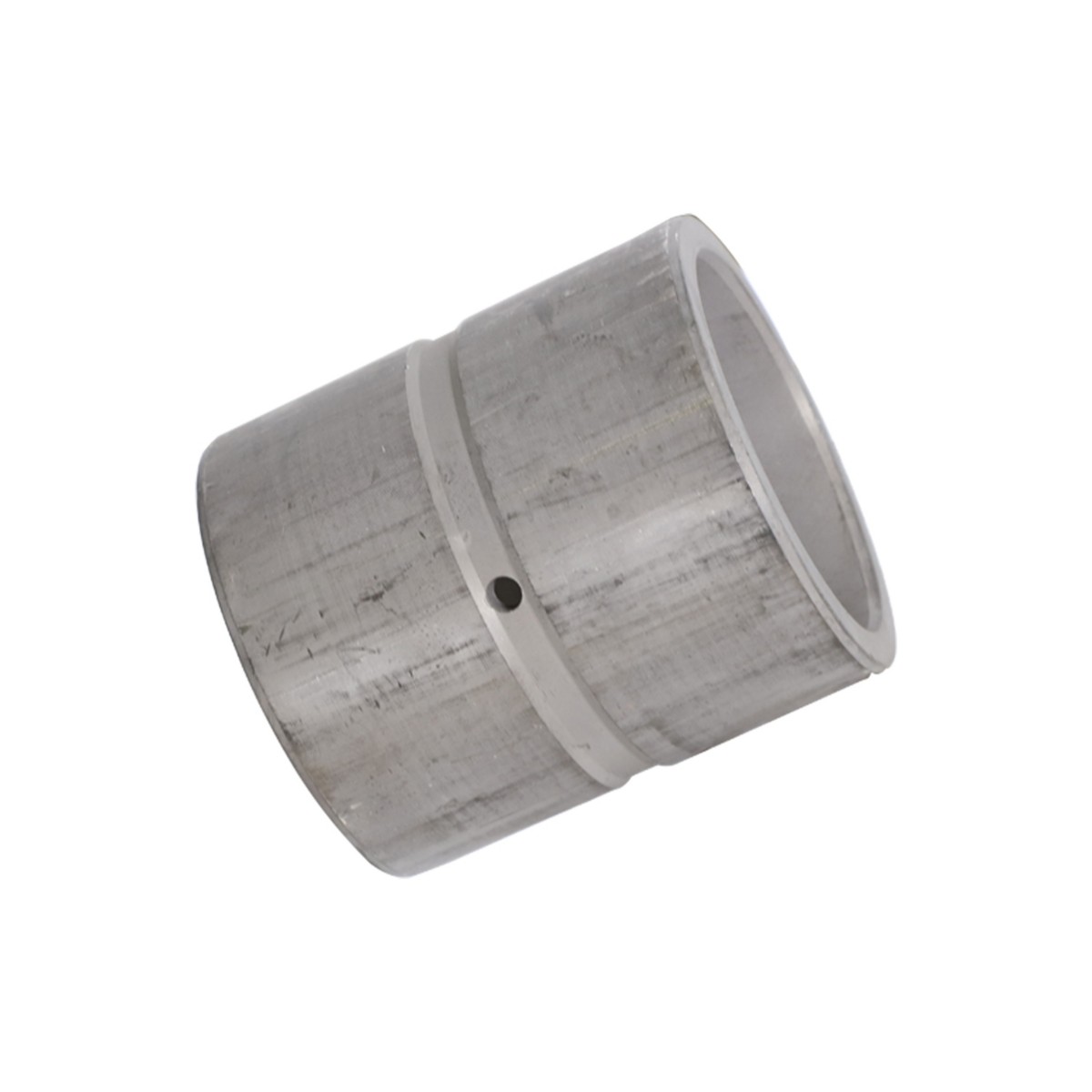

A straight sleeve bearing is a sliding contact bearing in which the surface of the shaft slides on the surface of the bushing. It consists of a cylindrical sleeve with a smooth inner surface that allows the shaft to rotate within it with minimal friction. Oil grooves cut into the bearing surface help distribute oil between the friction surfaces.
Attributes
Features 4 oil holes with a radius of 2.4 mm
Sintered for improved strength and self-lubricating quality
High impact load capacity and minimized vibration
Applications
Straight sleeve bearings are suited to applications where press fitting into a housing bore is the most practical bearing retention method. Mainly used in Cat® 320B, 320C, 322B, 322C, 324D, 325B, 325C, 325D, 330B, and 330C Excavators, 621, 621H, 621K, 627, 627H, and 627K Wheel Tractor-Scrapers, and GLS55 and GLS66 Work Tools.
Specifications
| Ferrule Outside Diameter | 70 mm (2.756 in) |
|---|---|
| Ferrule Inside Diameter | 57.4 mm (2.26 in) |
| Cross Hole | Yes |
| Unique Features | No |
| Overall Length | 76.2 mm (0 in) |
| Hole Diameter | 57.4 mm (2.26 in) |
| Length | 76.2 mm (3 in) |
| Outside Diameter | 70 mm (2.76 in) |
Compatible Equipment
- Excavators: 621K, 621H
Additional information
| Machine Model | |
|---|---|
| Equipment Type | |
| Part Source | Genuine OEM |
