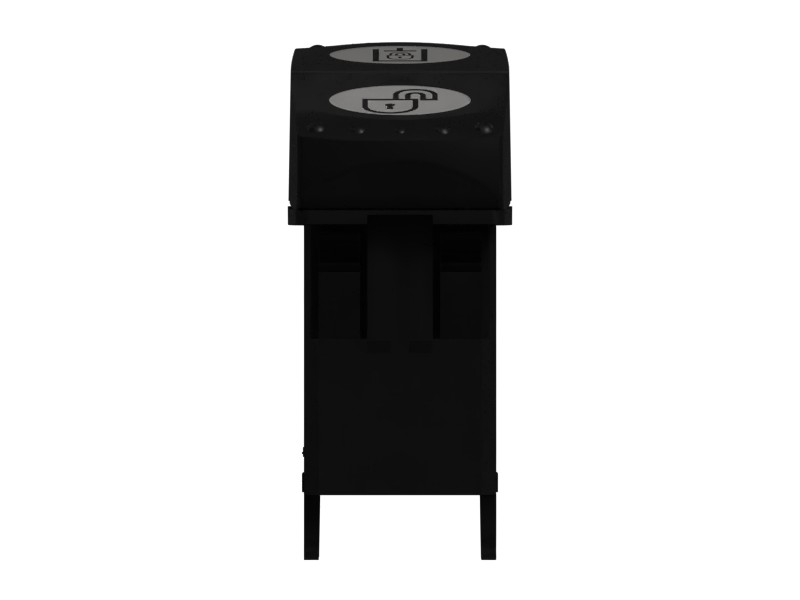

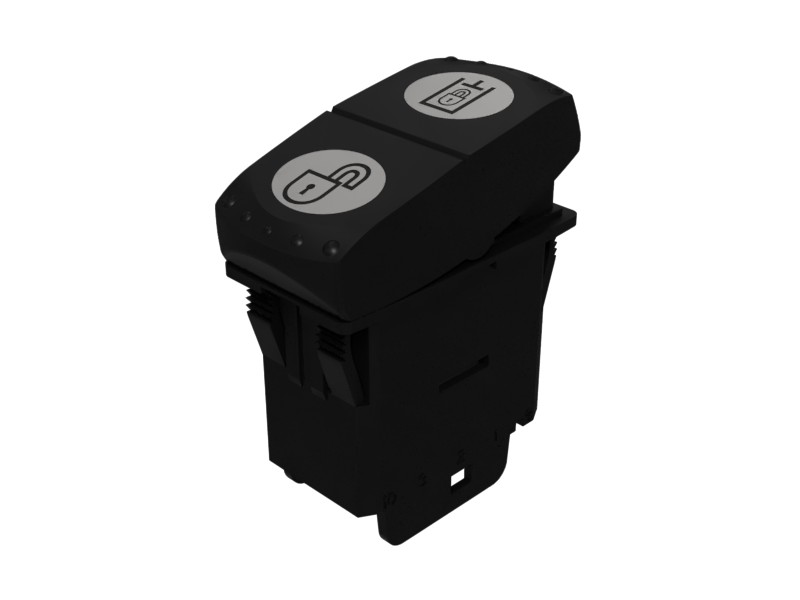

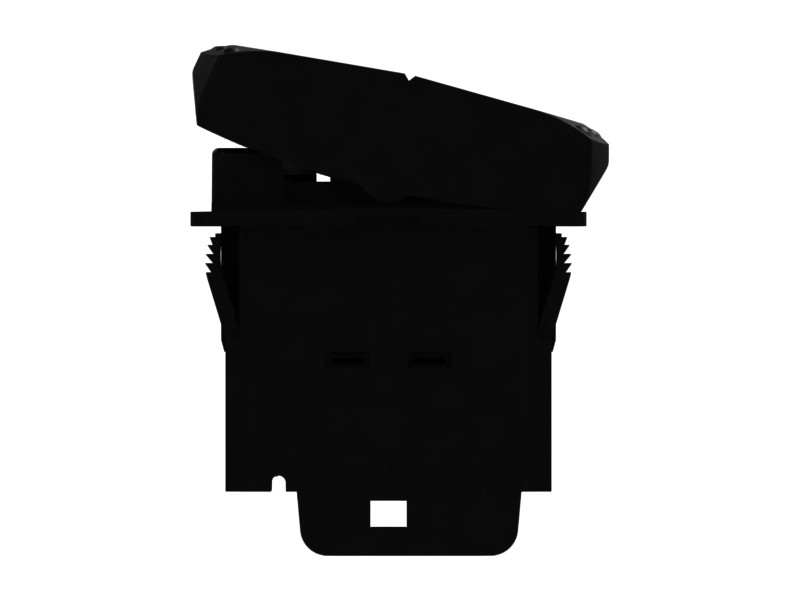

251-1197 Rocker Switch Group
Cat® Rocker Switch Group (24 V) (Lighting) (Hydraulic Lock/Unlock)
Wholesale only · Full payment before shipment · Send your machine nameplate to confirm fitment
Description
A rocker switch is a simple electrical switch that connects or breaks a circuit through a rocking mechanism. Cat parts keep your equipment running at its best.
Features
- Sealed three-position rocker switch

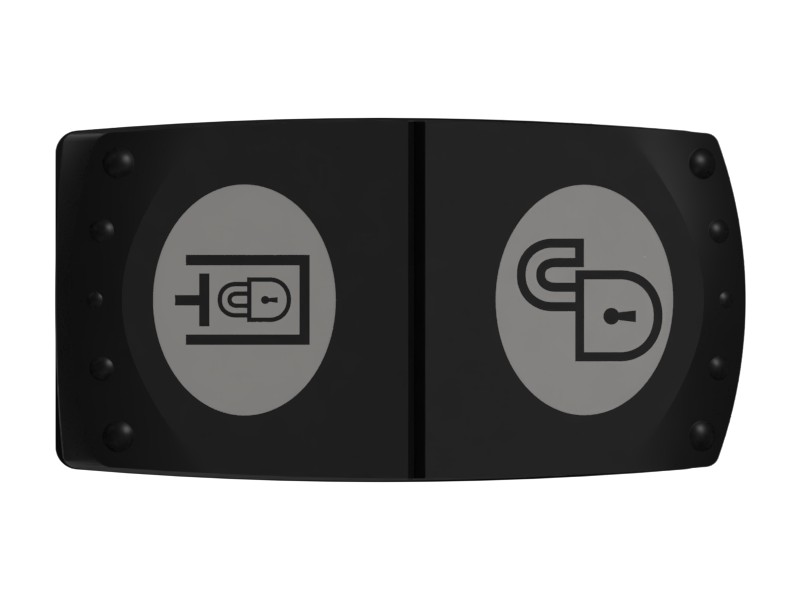

- Symbol: Hydraulic Lockout [ISO 3205]; Unlock [ISO 3305]
- LED lighting
- Ten-lug connection
- Gold-plated switch contacts suitable for low-voltage/low-current applications
- Panel Cutout: 21 X 36.83 mm (0.83 X 1.45 in)
- Heavy-Duty Construction
- Easy to operate
- High precision ensures stable performance
- Designed to work with other Cat parts to ensure the equipment reaches its full potential
Applications
Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Material | Polyamide Plastic |
|---|---|
| Length | 46.6 mm (1.83 in) |
| Height | 36 mm (1.4 in) |
| Width | 24.2 mm (0.95 in) |
| Temperature | -40° to 85° °C (-40° to 185° °F) |
Compatible Equipment
- Motor Graders: 16M, 14M
- Track Loaders: 963D, 953D
- Cold Planers: PL61
- Dozers: D6N, D7E
- Wheel Loaders: 980H, 950H, 972H, 966H
Additional information
| Machine Model | 14M, 16M, 950H, 953D, 963D, 966H, 972H, 980H, D6N, D7E, PL61 |
|---|---|
| Equipment Type | Wheel Loaders, Track Loaders, Dozers, Motor Graders, Cold Planers |
| Part Source | Genuine OEM |
