Description

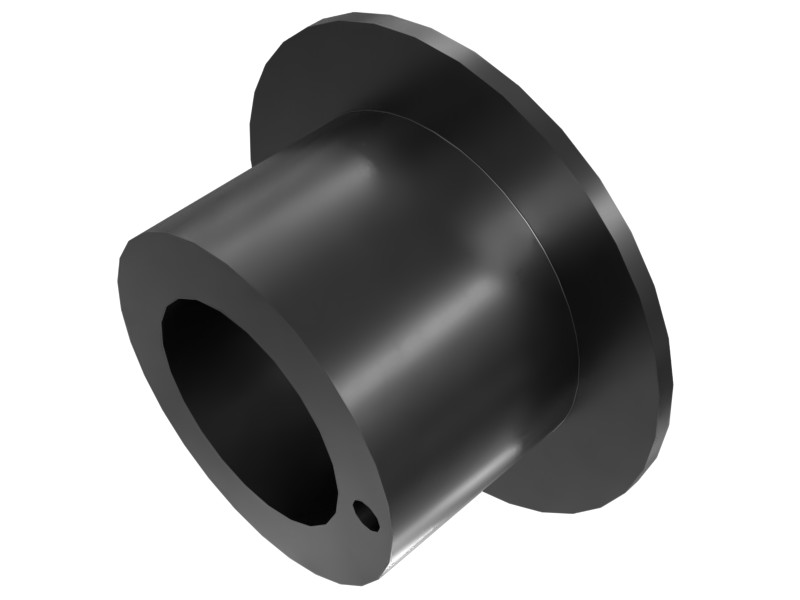

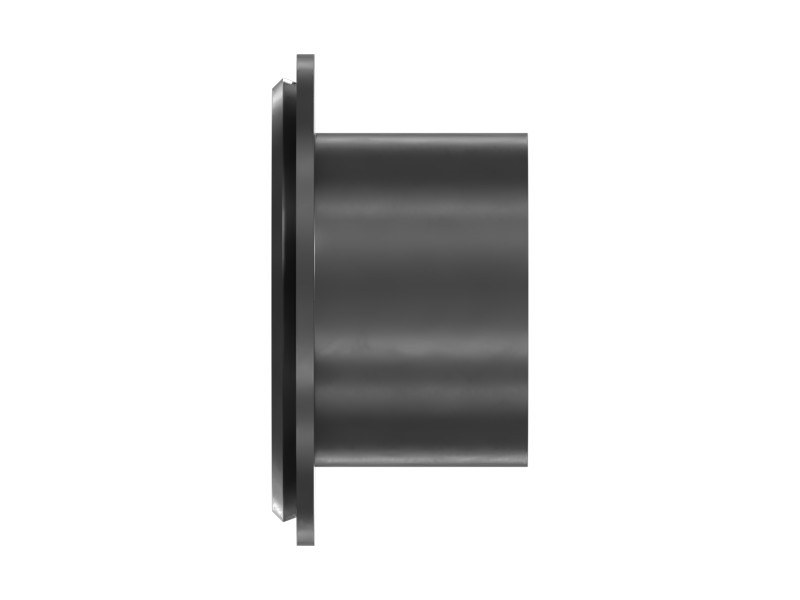

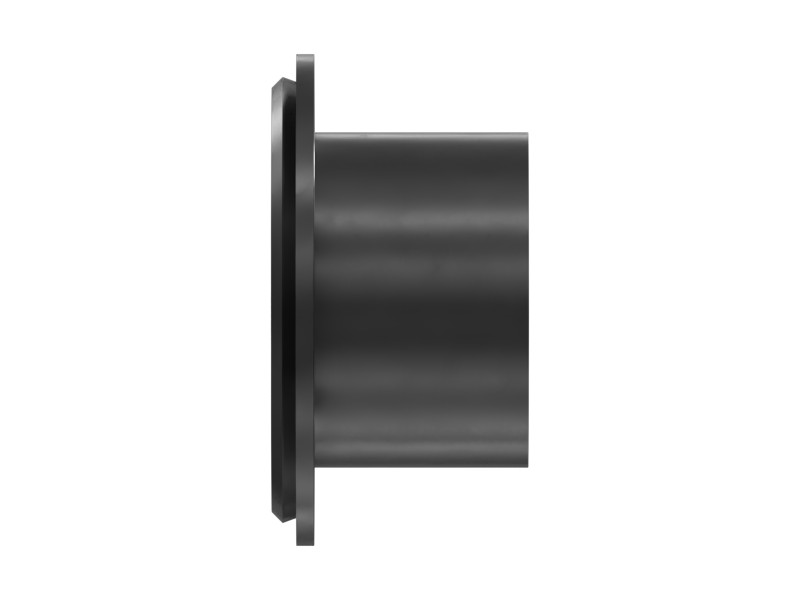

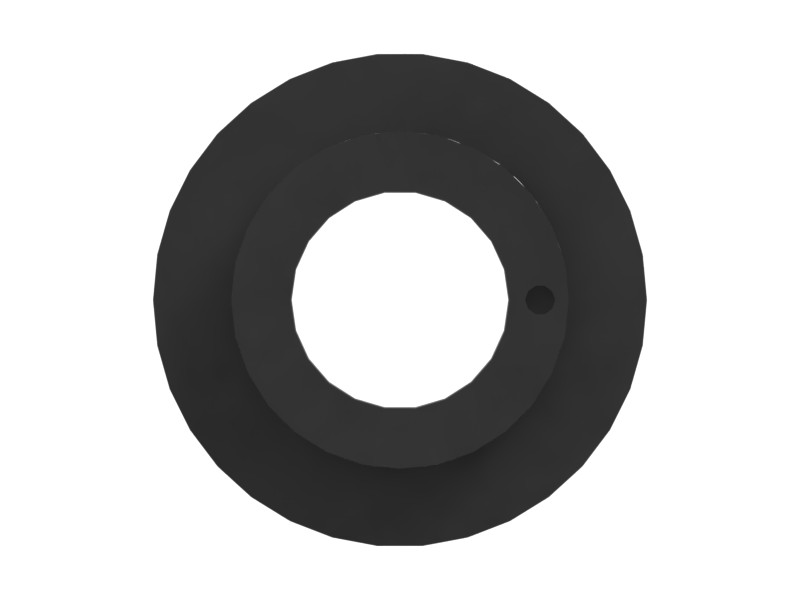

Cat® machine linkage flange bearings support rotation and pushing between the frame linkage and the work tool. They are most commonly used in the arms and buckets of machines. Genuine Cat pins and flange bearings are specially designed to work together as a system to deliver the performance you expect. Caterpillar design engineers match each part with the right combination of size, material, surface finish, and manufacturing process so that it works effectively with, and wears in step with, all other adjacent and dependent parts.
Features
- Hardened steel flange bearing
- Outside Diameter: 250 mm (9.84 in)
- Inside Diameter: 110 mm (4.33 in)
- Bearing Surface Length: 108.5 mm (4.27 in)
- Overall Length: 129.9 mm (5.11 in)
- Cat heavy-duty flange bearings are made of premium steel and hardened for exceptional hardness and wear life. They are used as a system on specific Cat machines and have been tested and proven in the world's toughest applications. They deliver maximum strength and durability, ultimately lowering overall cost, providing outstanding strength and fatigue life, and delivering superior wear resistance, while offering exceptional protection against pin spalling and wear, even under high-load conditions.
Applications
Cat flange bearings are suitable for applications that require flange bearings with high load strength and long service life, and are the first choice for optimal performance in demanding applications. Should be used with the matching pin. Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Material | Steel(1E0769) |
|---|---|
| Flange Thickness | 21.4 mm (0.843 in) |
| Flange Diameter | 250 mm (9.843 in) |
| Unique Features | No |
| Ferrule Outside Diameter | 169.8 mm (6.685 in) |
| Overall Length | 129.9 mm (5.114 in) |
| Cross Hole | No |
| Ferrule Inside Diameter | 110.05 mm (4.333 in) |
Compatible Equipment
- Excavators: 330D L, 349F L, 350, 345 GC, 352, 336D2 L, 340, 355, 349, 336, 336F, 336E, 325D L, 336 GC, 336D L, 336F L, 324D L, 336F LN, 336D2 GC, 330D, 324D, 336F L XE, 336E L, 336D2 XE, 336E LN, 336E LH, 336E H, 329D L, 345C, 345C L, 345D L, 349E, 349E L, 365B, 349D L, 349E L VG, 352F, 365B L, 345B, 345D, 340D2 L, 340D L, 336D2, 326D2, 336D, 329D2, 329D2 L, 326D2 L, 349D2, 349D2 L, 349D
Additional information
| Machine Model | 324D, 324D L, 325D L, 326D2, 326D2 L, 329D L, 329D2, 329D2 L, 330D, 330D L, 336, 336 GC, 336D, 336D L, 336D2, 336D2 GC, 336D2 L, 336D2 XE, 336E, 336E H, 336E L, 336E LH, 336E LN, 336F, 336F L, 336F L XE, 336F LN, 340, 340D L, 340D2 L, 345 GC, 345B, 345C, 345C L, 345D, 345D L, 349, 349D, 349D L, 349D2, 349D2 L, 349E, 349E L, 349E L VG, 349F L, 350, 352, 352F, 355, 365B, 365B L |
|---|---|
| Equipment Type | |
| Part Source | Genuine OEM |
