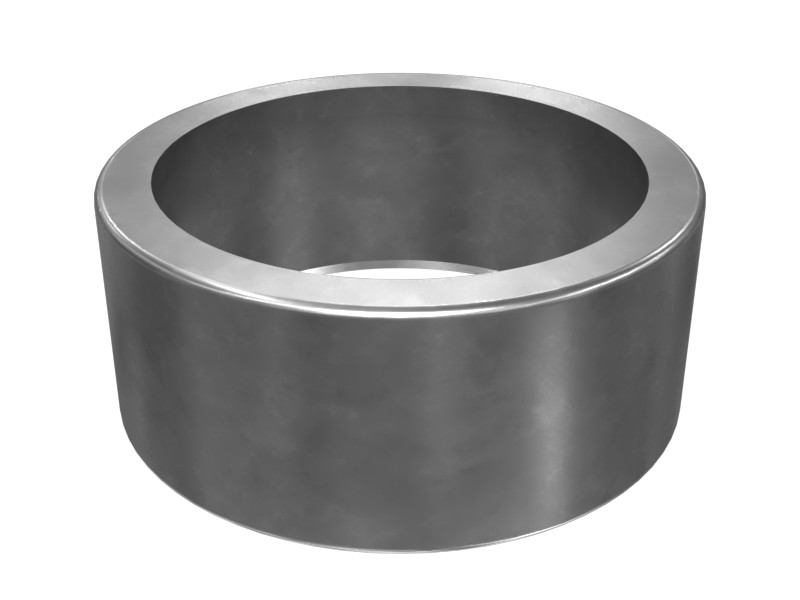

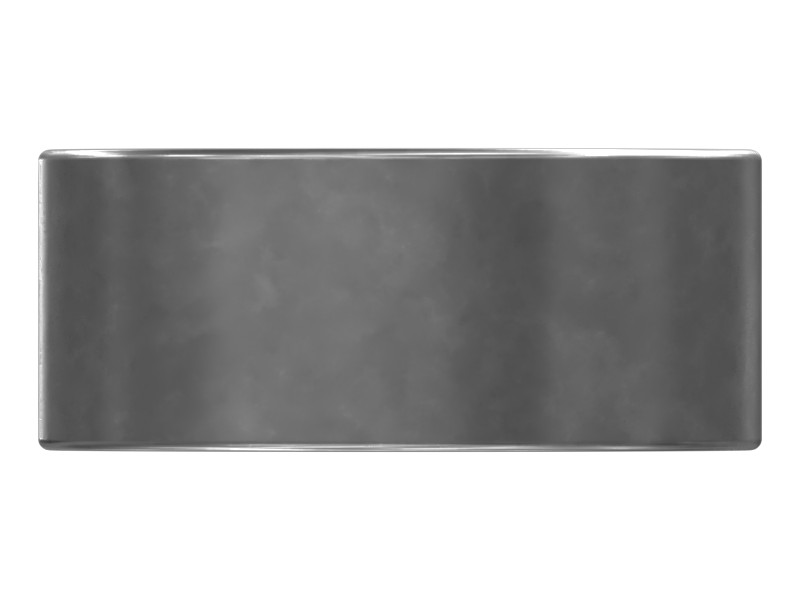

250-0953 112.535 mm ID Outer Race
Cat® 112.535 mm ID Outer Race for Roller Bearing in Planetary Gear Housing
Description
Cat bearings are designed for specific applications based on load, operating speed, temperature range, size and past performance, and are manufactured to the highest quality standards for long life and high performance. Cat caged cylindrical roller bearings can withstand heavy radial loads, rapid acceleration and high speeds. Full complement cylindrical roller bearings are suited to very heavy radial loads at moderate speeds. High-capacity cylindrical roller bearings can handle both heavy radial loads and extremely high rotational speeds. Cat cylindrical roller bearings are purpose-built for their specific applications to ensure that all power train components work together as a system.
Features
- Single Flange Outer Race
- Outside Diameter: 130.058 mm (5.120 in)
- Inside Diameter: 106.35 mm (4.187 in)
- Height: 53.975 mm (2.125 in)
Applications
Cat cylindrical roller bearings are commonly used in transmission and axle systems, pinion and drive gear assemblies, and clutch systems.
Specifications
| Material | Alloy Steel |
|---|---|
| Outside Diameter | 130.058 mm (5.120 in) |
| Inside Diameter | 106.35 mm (4.187 in) |
| Height | 53.975 mm (2.125 in) |
Compatible Equipment
- Motor Graders: 14M, 16M, 16, 14, 16M3, 18
