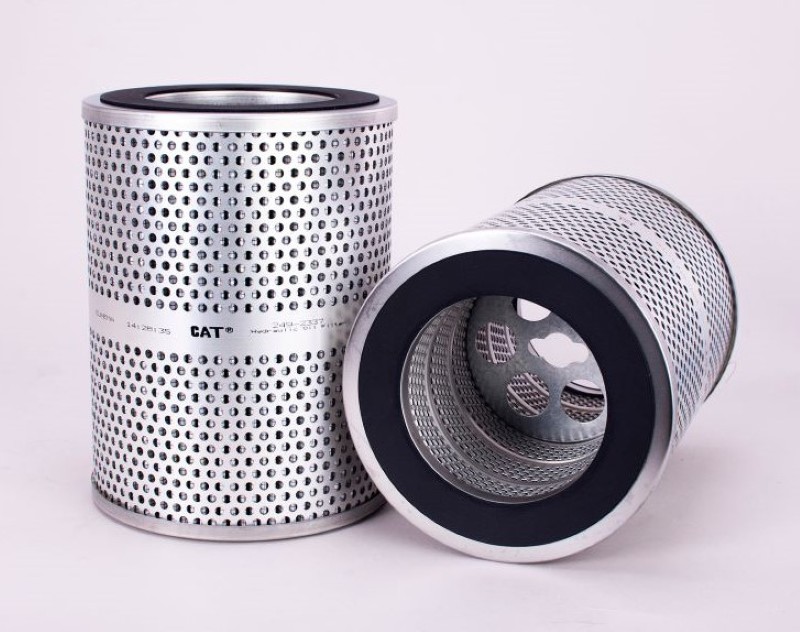

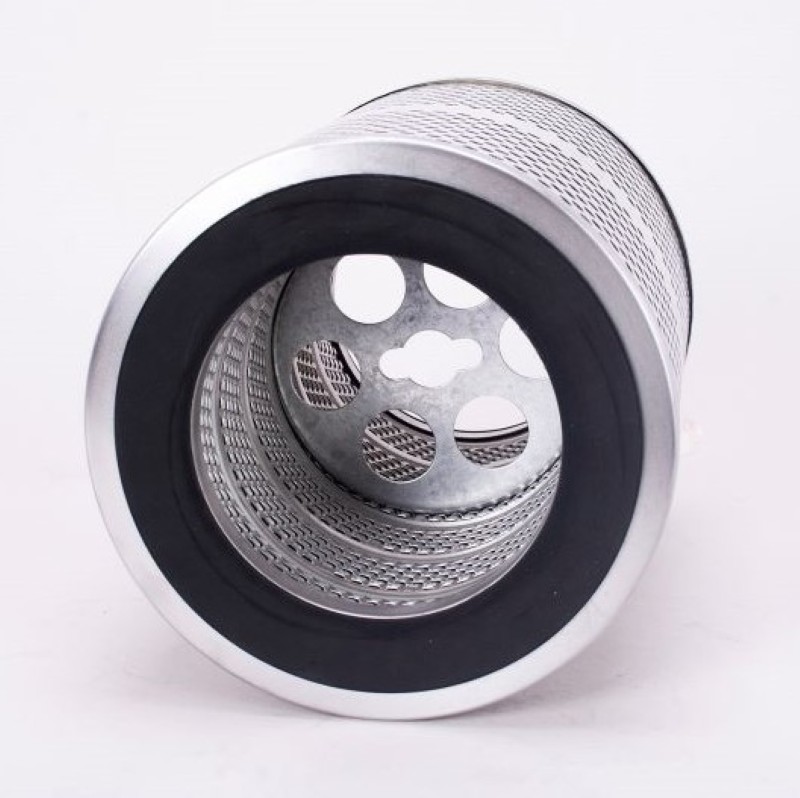

249-2337 Hydraulic Element Group
Advanced efficiency hydraulic oil filters are made with special materials designed to provide greater protection in medium to heavy duty applications, protecting the system from accelerated wear.
Description
Cat® hydraulic filters isolate contaminants and abrasives in high-pressure hydraulic systems to keep them from wearing down tight-tolerance systems, providing optimal protection. Cleanliness is key to keeping sensitive hydraulic systems properly lubricated.
Specifications
| Diameter | 173.8 mm (6.843 in) |
|---|---|
| Length | 0 mm (9 in) |
| Flow Direction | In-to-Out |
| Filter Type | Cartridge |
| Efficiency Category | Advanced High Efficiency |
| Efficiency Rating | Advanced Efficiency |
Compatible Equipment
- Cold Planers: PL87
- Dozers: D11T, D11, D10T, D9R, D9, D10
- Excavators: 657G
- Off-Highway Trucks: 793, 793D
Additional information
| Machine Model | |
|---|---|
| Equipment Type | |
| Part Source | Genuine OEM |
