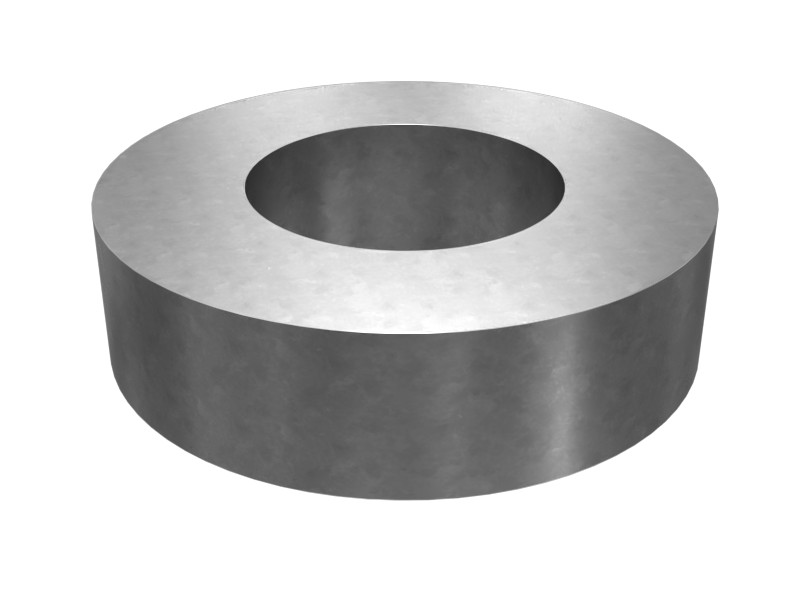

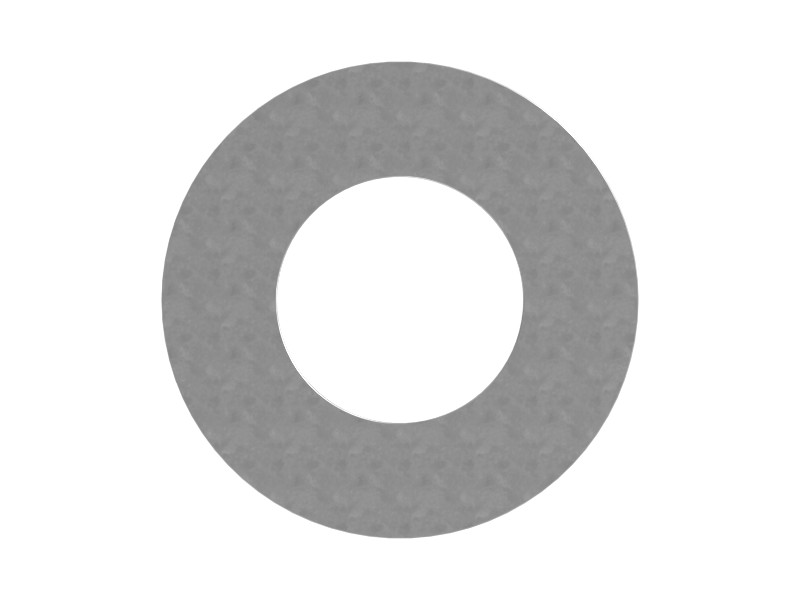

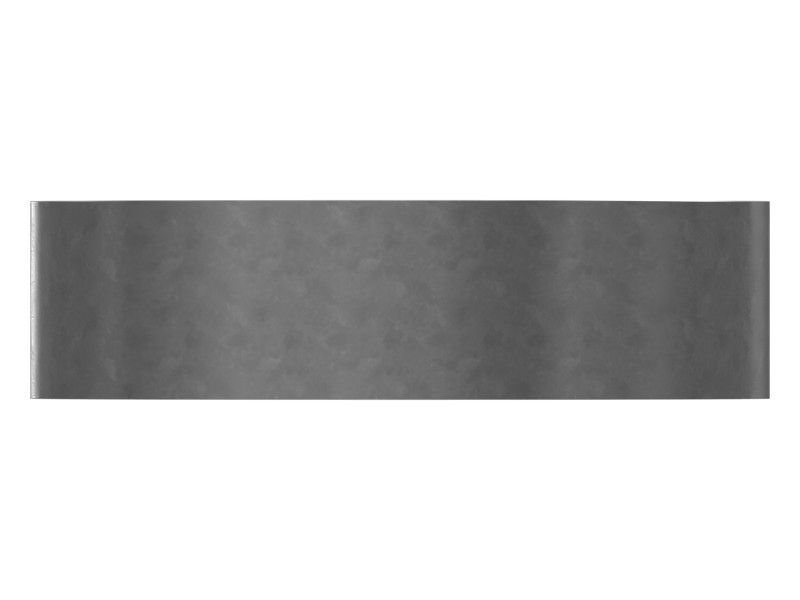

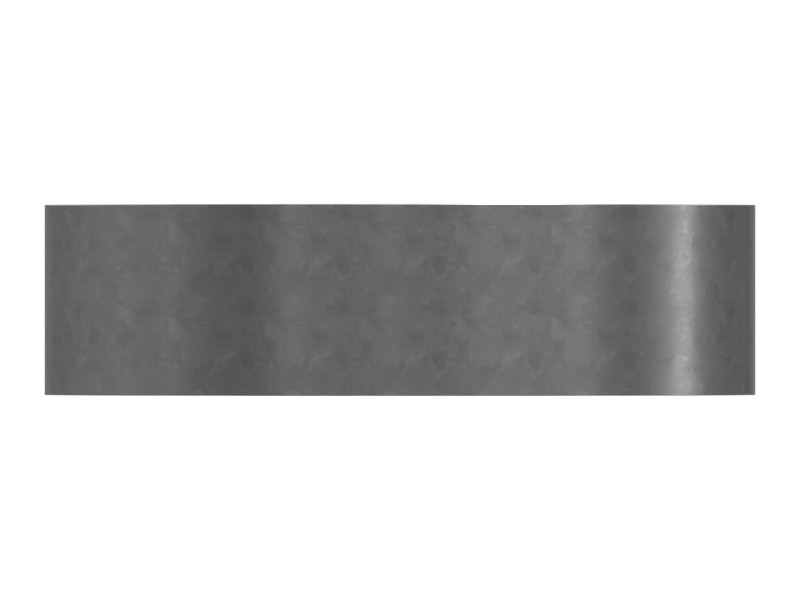

248-9337 39 mm ID Counterweight Mounting Shim
Cat® counterweight mounting shim maintains precise alignment and stability, ensuring safe and balanced operation.
Description
A washer is a flat ring made of metal, rubber, or plastic that sits under a nut or bolt head to distribute pressure during tightening or between two mating surfaces.
Features
- Hardened washer
- Outside Diameter: 75 mm (2.953 in)
- Inside Diameter: 39 mm (1.535 in)
- Thickness: 20 mm (0.787 in)
- For use with M36 fasteners
- Finish: Mechanically Galvanized
Applications
Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Coating | Mechanical Zinc |
|---|---|
| Gasket Type | Flat |
| Outside Diameter | 75 mm (2.953 in) |
| Inside Diameter | 39 mm (1.535 in) |
| Thickness | 20 mm (0.787 in) |
Compatible Equipment
- Motor Graders: 18, 14, 16, 16M, 14M, 16M3, 16H
- Generator Sets: 3512B
- Excavators: 330D L, 349F L, 315 GC, M325D L MH, 336F L, 315, 325D L, 330D, 324D, 324D L, 325D, 336F, 336D L, 336F LN, 329E, 336D2 L, 329D L, 336E LH, 336E LN, 336E L, 330D2, 336E, 330D2 L, 336F L XE, 336D2 XE, 336D2 GC, 329E L, 326D L, 336E H, 315F LCR, 349E L, 340D2 L, 352F, 349D L, 349E, 340D L, 349E L VG, 345D L, 349D2 L, 336D2, 336D, 329D, 326D2, 326D2 L, 329D2 L, 329D2, 349D, 349D2
- Off-Highway Trucks: 794 AC, 7495
Additional information
| Machine Model | 14, 14M, 16, 16H, 16M, 16M3, 18, 315, 315 GC, 315F LCR, 324D, 324D L, 325D, 325D L, 326D L, 326D2, 326D2 L, 329D, 329D L, 329D2, 329D2 L, 329E, 329E L, 330D, 330D L, 330D2, 330D2 L, 336D, 336D L, 336D2, 336D2 GC, 336D2 L, 336D2 XE, 336E, 336E H, 336E L, 336E LH, 336E LN, 336F, 336F L, 336F L XE, 336F LN, 340D L, 340D2 L, 345D L, 349D, 349D L, 349D2, 349D2 L, 349E, 349E L, 349E L VG, 349F L, 3512B, 352F, 7495, 794 AC, M325D L MH |
|---|---|
| Equipment Type | Excavators, Motor Graders, Off-Highway Trucks, Generator Sets |
| Part Source | Genuine OEM |
