248-7200 Mounting Base, High Pressure Cylinder Warning
Cat® mounting base (chassis) with high-pressure spray hazard warning plate, for track adjuster cylinders, dimensions: 121 X 72 mm
Description

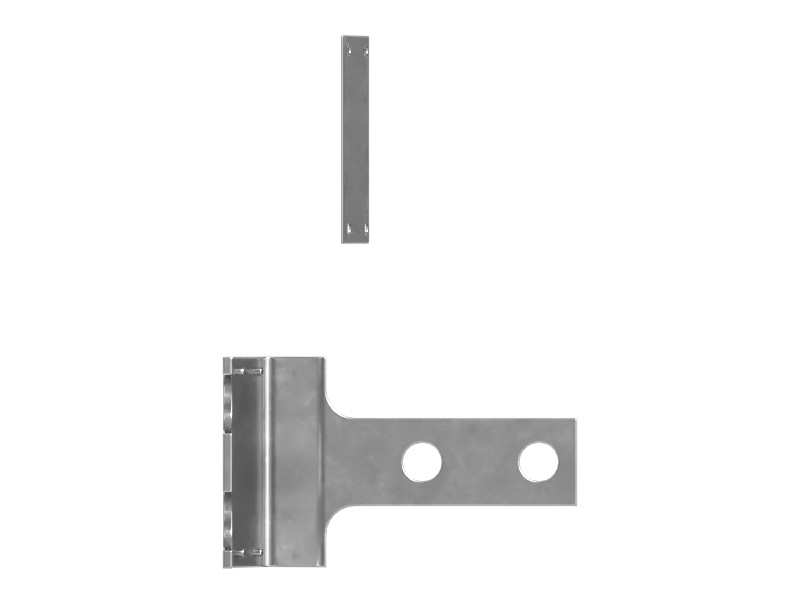

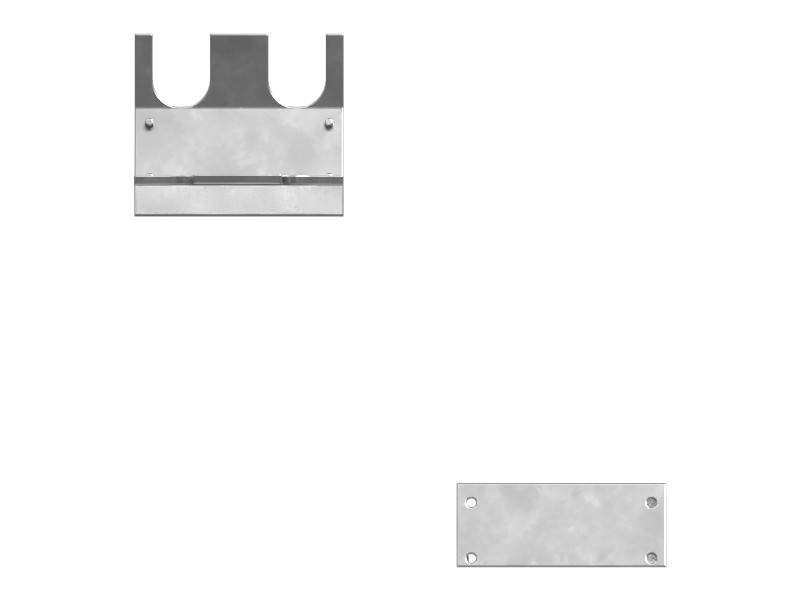

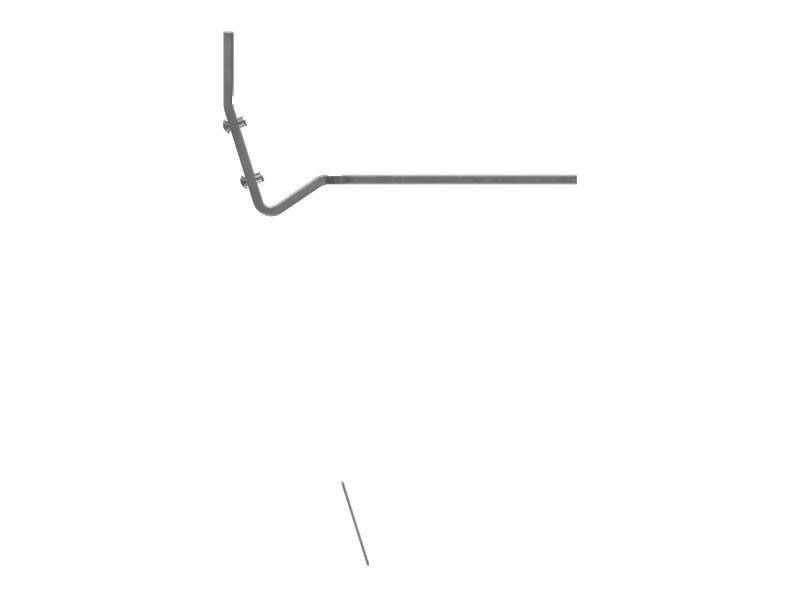

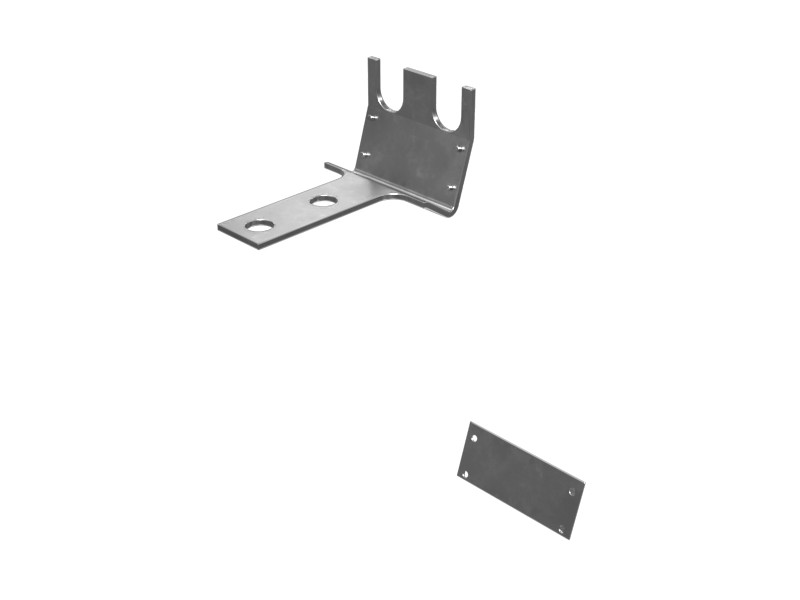

248-7200 is a steel mounting bracket with a warning plate that identifies the high-pressure spray hazard of the hydraulic track adjuster cylinder.
Features
- Steel bracket with aluminum warning plate
- Used with M10 or 3/8 in fasteners
- Warning plate message: WARNING: High-pressure spray hazard. Can penetrate the body and may cause serious injury or death. Read the Operator's Manual.
- Warning plate symbols: Compressed spring chamber – flying objects [submitted for SAE certification application]; Service indicator/Read technical manual [ISO 1659]
- Warning Plate Color: Safety yellow background with black characters and symbols
- Warning plate dimensions: 110 x 29 mm (4.14 x 1.77 in)
Applications
Located on the track adjuster cylinder. Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Overall Length | 121 mm (4.8 in) |
|---|---|
| Overall Width | 72 mm (2.8 in) |
| Overall Height | 63 mm (2.5 in) |
| Hole Size | 13.5 (2X) mm (0.53 (2X) in) |
Compatible Equipment
- Excavators: 312D2, 315F LCR, 312D2 GC, 312D L, 312F, 312E, 313D2 GC, 313D, 312D2 L, 313F LGC, 311D LRR, 313F L, 314D CR, 313D2, 312D, 312E L, 314D LCR, 313D2-GC
