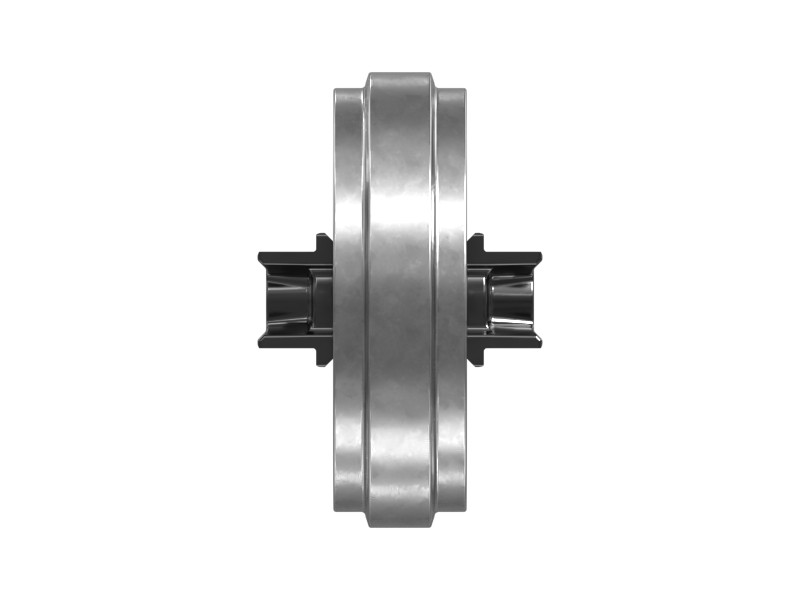

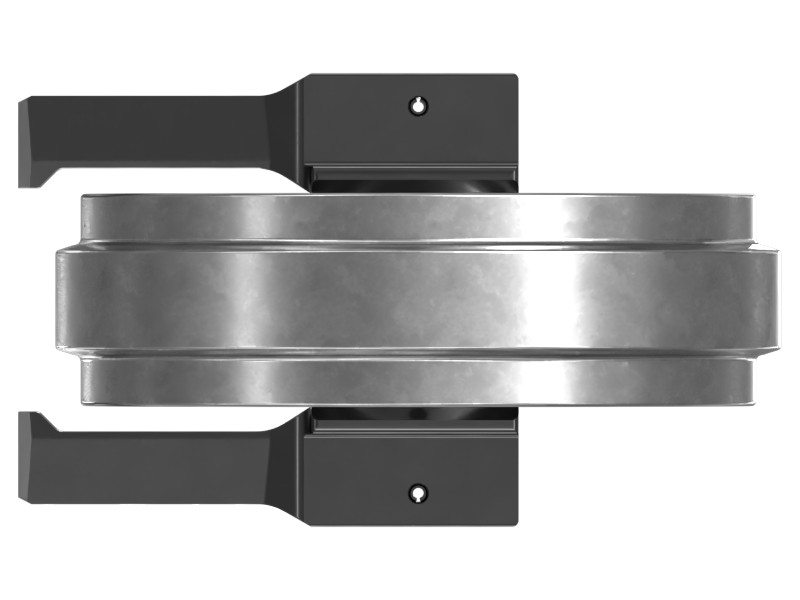

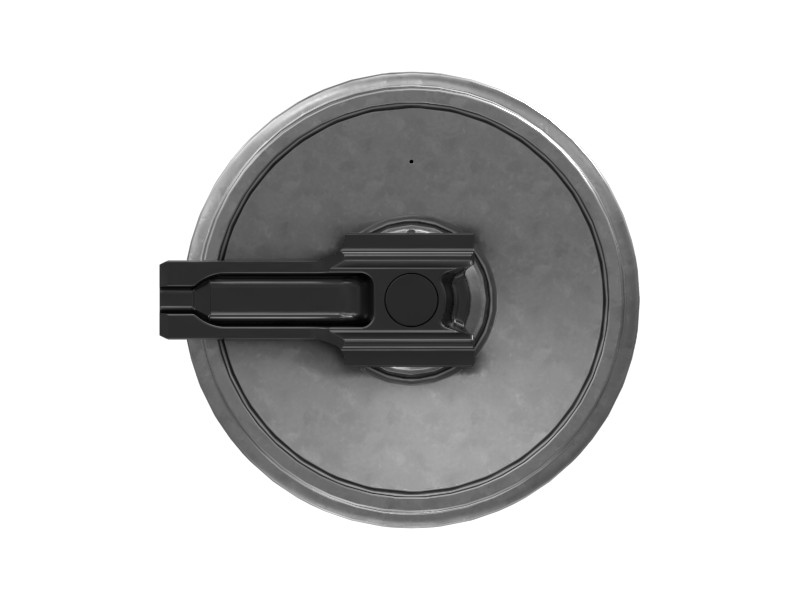

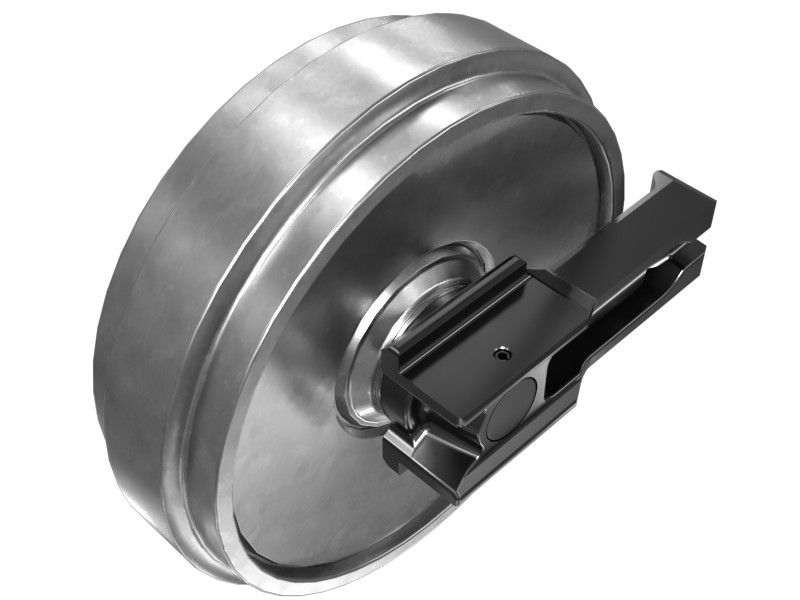

248-7143 Idler Group
Cat® Front Track Idler (with Bearing) for Use in Undercarriage Track Roller Frames
Description
Idlers guide the track into and out of the track rollers. They intermittently support the weight of the machine and provide a way to control track slack and tension.
Specifications
| Application | Standard Application |
|---|---|
| Undercarriage System | HD |
| Machine Side | Interchangeable |
| Tread Type | Conventional Tread |
| Tread Diameter | 507 mm (19.96 in) |
| Bearing Mounting Length | 300 mm (11.811 in) |
| Mounting Cap Bolt Thread Size | M16 |
| Center Flange Width | 73 mm (2.874 in) |
| Shaft Length | 320 mm (12.598 in) |
| Center Flange Diameter | 545 mm (21.457 in) |
| Shaft Protrusion Length | 80.5 mm (3.169 in) |
| Idler Rim Width | 159 mm (6.26 in) |
| Shaft Outside Diameter | 64.92 mm (2.556 in) |
Compatible Equipment
- Motor Graders: 316F
- Excavators: 320C, 313D2, 320 GC, 320, 320D L, 320D FM, 329D L, 323, 330D2, 323 GC, 323D L, 325, 318D2 L, 318D L, 320D2 GC, 320D2 L, 323GC, 315D L, 320D GC, 323D2 L, 311C, 315C, 320D RR, 320E, 320C L, 318D2, 323D2, 325D, 323D, 320B, 345C L, 329E, 320D2, 320D
- Skid Steer Loaders: 313D2 LGP
Additional information
| Machine Model | 311C, 313D2, 313D2 LGP, 315C, 315D L, 316F, 318D L, 318D2, 318D2 L, 320, 320 GC, 320B, 320C, 320C L, 320D, 320D FM, 320D GC, 320D L, 320D RR, 320D2, 320D2 GC, 320D2 L, 320E, 323, 323 GC, 323D, 323D L, 323D2, 323D2 L, 323GC, 325, 325D, 329D L, 329E, 330D2, 345C L |
|---|---|
| Equipment Type | |
| Part Source | Genuine OEM |
