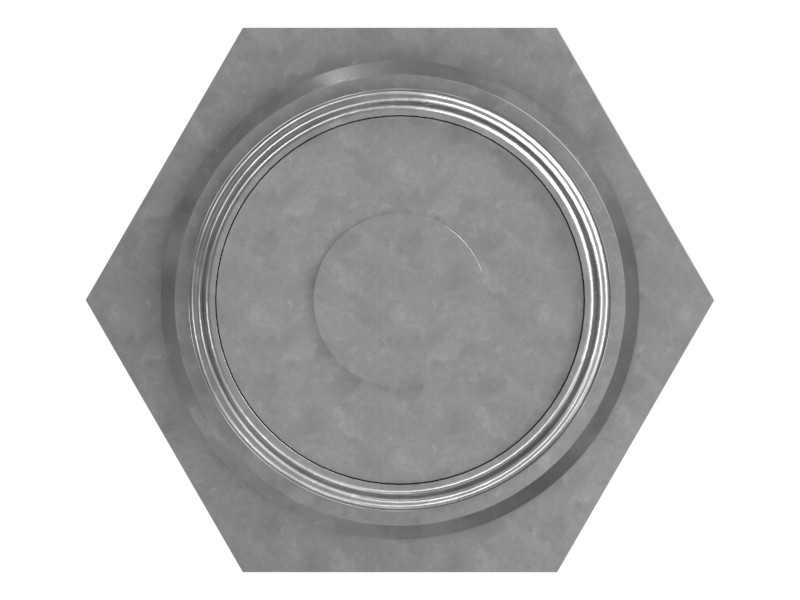

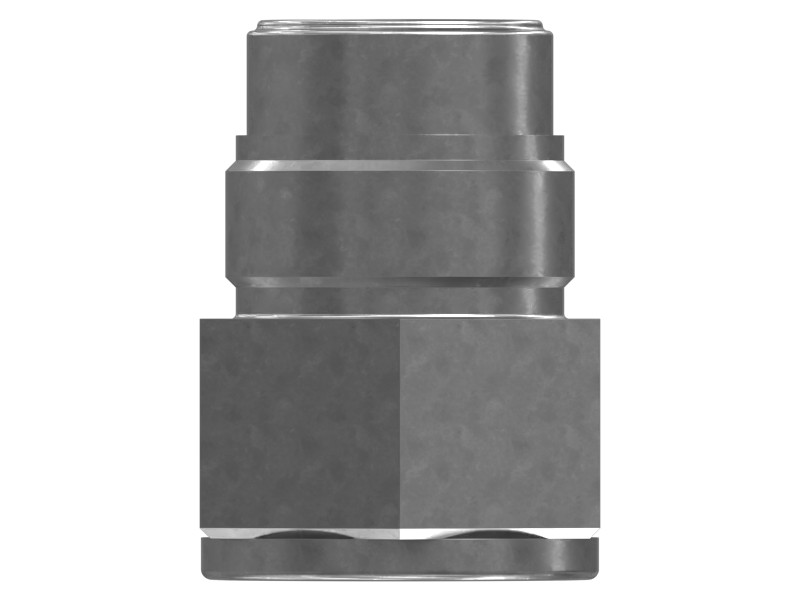

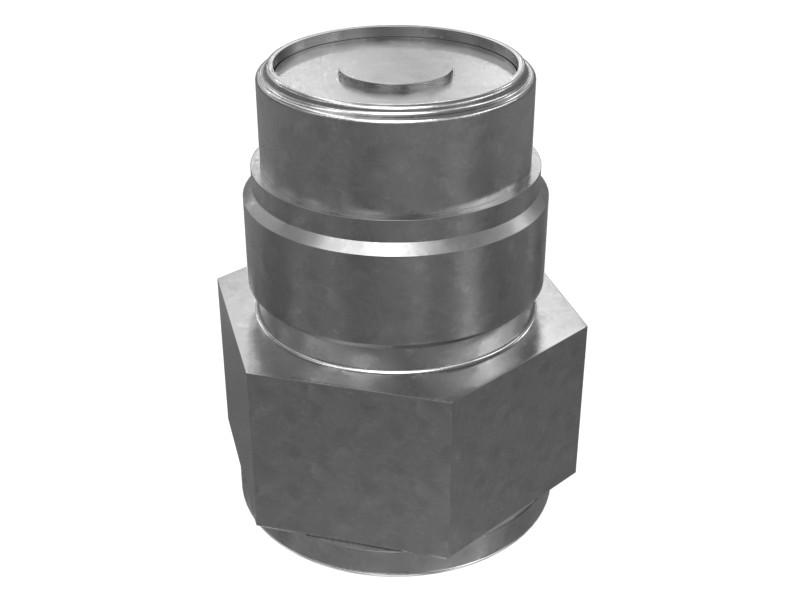

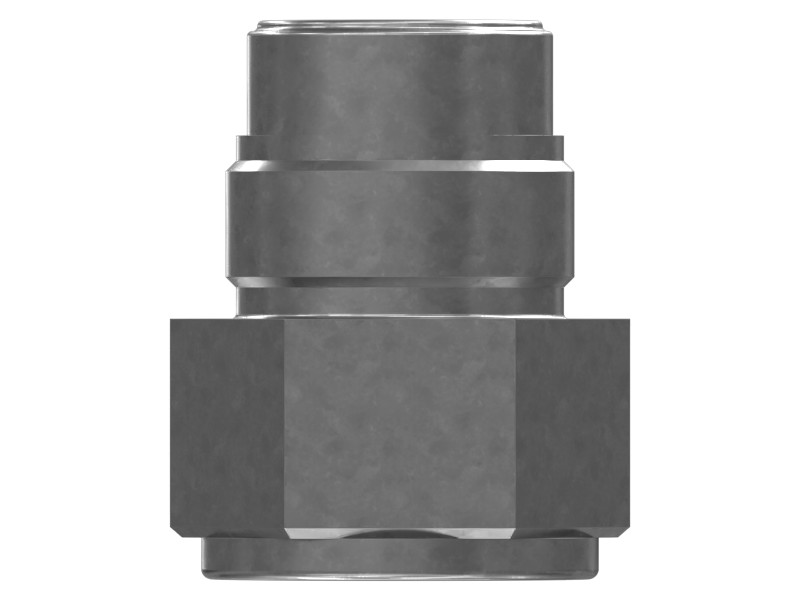

248-0833 1-5/16″ Threaded Drain Plug
Cat® 1-5/16" threaded drain plug for use in axle housings
Description
With Cat service parts, system components in Cat heavy-duty equipment can be easily repaired and replaced. However, proper installation is still required to restore the full functionality of the system.
Features
- Drain group consists of an aluminum housing, steel plug, magnet, and O-ring
- Magnetic Force: 907 g minimum
- Male Thread Size: 1-5/16-12-2A
- Swivel hose (eco) service tool or 1 inch NPTF tube required to open the valve
Applications
Used as needed to service fuel tanks and axle housings for fluid maintenance. Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Material | Alloy Zinc |
|---|---|
| Overall Length | 53.4 mm (2.1 in) |
| Hex Size | 38.1 mm (1.5 in) |
| Thread Size | 1-5/16-12-2A (External) in |
Compatible Equipment
- Motor Graders: 16M, 14, 16M3, 14M, 18, 16
- Track Loaders: 990K, 972
- Dozers: D10R
- Excavators: 637G, 637K, 621H, 621K, 6020B
- Wheel Loaders: 972M, 966M, 992K
- Off-Highway Trucks: 772G, 725C2, 745C, 773F, 775G, 770G, 740B, 789D, 785, 773, 793D, 789, 793
- Skid Steer Loaders: 24
Additional information
| Machine Model | 14, 14M, 16, 16M, 16M3, 18, 24, 6020B, 621H, 621K, 637G, 637K, 725C2, 740B, 745C, 770G, 772G, 773, 773F, 775G, 785, 789, 789D, 793, 793D, 966M, 972, 972M, 990K, 992K, D10R |
|---|---|
| Equipment Type | Excavators, Wheel Loaders, Track Loaders, Skid Steer Loaders, Dozers, Motor Graders, Off-Highway Trucks |
| Part Source | Genuine OEM |
