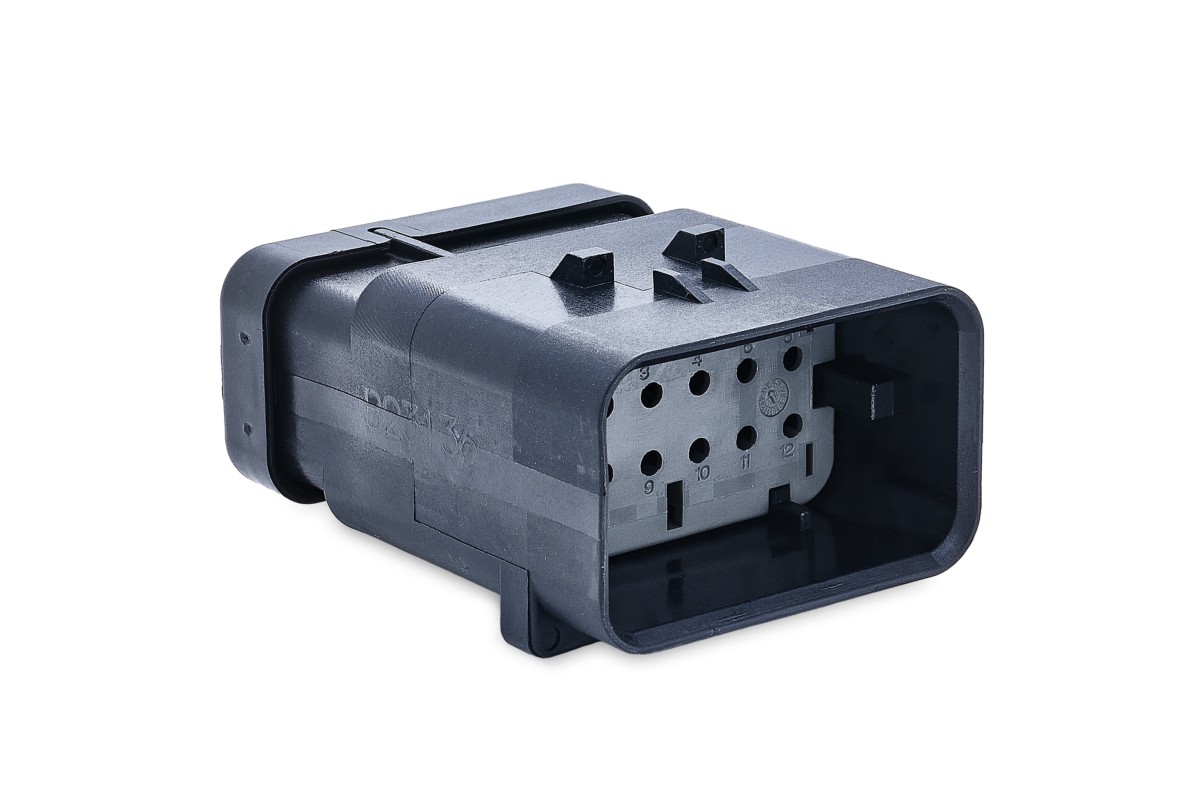

247-2695 Connector Receptacle Group
Cat® Connector Receptacle Group (12) (2 Key)
Wholesale only · Full payment before shipment · Send your machine nameplate to confirm fitment
Description
Cat connectors use a pin-and-socket connection system to make reliable electrical connections across a range of electrical applications on Cat heavy equipment. Meets your quality expectations for your machine.
Features
- Plastic connector receptacle
- Reduced reverse mounting
- 14-18 AWG
- Contact Type: Pin
- Number of Contacts: 12
- Body Color: Black
- Seal Color: Rust
Applications
Cat connector plug groups provide a reliable mating connection between wires or between a wire and equipment.
Specifications
| Connector Type | Pin |
|---|---|
| Wire Gauge | 18-14 AWG |
| Length | 48 mm (1.9 in) |
| Height | 27 mm (1.1 in) |
| Material | Mixed Plastic Plastic |
| Width | 38 mm (1.5 in) |
Compatible Equipment
- Wheel Excavators: M320, M315
- Excavators: 313 GC, 313, 330D L, 374, 315 GC, 333, 340, 352, 325D L, 328D LCR, 312D L, 336D L, 318D L, 323D L, 312D, 314D CR, 336D2 L, 312D2 L, 320D2 L, 315, 320D FM, 324D L, 320, 326, 329D L, 314D LCR, 330 GC, 318D2 L, 320D L, 313D2, 330D, 326D L, 325D, 323D, 313D, 315D L, 336D2 GC, 320D2 GC, 324D, 312D2, 330GC, 323, 320D RR, 311D LRR, 320D GC, 320 GC, 312D2 GC, 385C, 365C, 345C L, 390F, 345D, 349D L, 345C, 345D L, 385C L, 365C L, 374F L, 390D, 385C FS, 340D2 L, 340D L, M325D L MH, 395, 320D, 320D2, 330, 308D, 336D2, 329D, 336D, 349D2, 374F, 390F L, 374D L, 390D L, 349D2 L, 349D
- Wheel Loaders: M314
- Skid Steer Loaders: 313D2 LGP
Additional information
| Machine Model | 308D, 311D LRR, 312D, 312D L, 312D2, 312D2 GC, 312D2 L, 313, 313 GC, 313D, 313D2, 313D2 LGP, 314D CR, 314D LCR, 315, 315 GC, 315D L, 318D L, 318D2 L, 320, 320 GC, 320D, 320D FM, 320D GC, 320D L, 320D RR, 320D2, 320D2 GC, 320D2 L, 323, 323D, 323D L, 324D, 324D L, 325D, 325D L, 326, 326D L, 328D LCR, 329D, 329D L, 330, 330 GC, 330D, 330D L, 330GC, 333, 336D, 336D L, 336D2, 336D2 GC, 336D2 L, 340, 340D L, 340D2 L, 345C, 345C L, 345D, 345D L, 349D, 349D L, 349D2, 349D2 L, 352, 365C, 365C L, 374, 374D L, 374F, 374F L, 385C, 385C FS, 385C L, 390D, 390D L, 390F, 390F L, 395, M314, M315, M320, M325D L MH |
|---|---|
| Equipment Type | Excavators, Wheel Excavators, Wheel Loaders, Skid Steer Loaders |
| Part Source | Genuine OEM |
