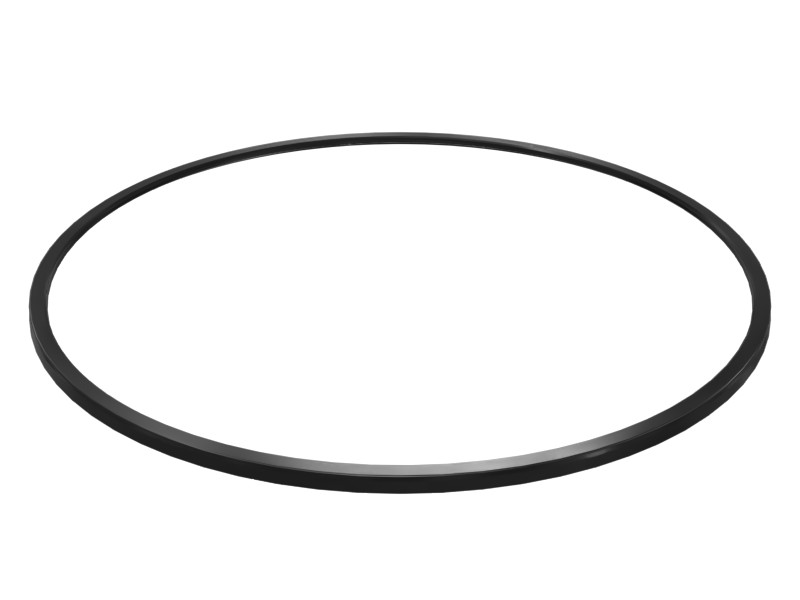

246-8797 4.3 mm Thick Piston Seal Ring
Cat® 4.3 mm thick rubber piston seal ring, for transmission clutches.
Description
Seals and seal rings provide effective sealing between system components operating under a variety of conditions. Their materials and shapes are designed to work together to deliver the performance you expect in your application.
Specifications
| Seal Type | External |
|---|---|
| Material | Rubber |
| Inside Diameter | 196.20 mm (7.724 in) |
| Cross-Section Height | 4.47 mm (0.176 in) |
| Cross-Section Width | 2.49 mm (0.098 in) |
Compatible Equipment
- Motor Graders: 16M, 16, 18, 14, 14M, 16M3
