Description

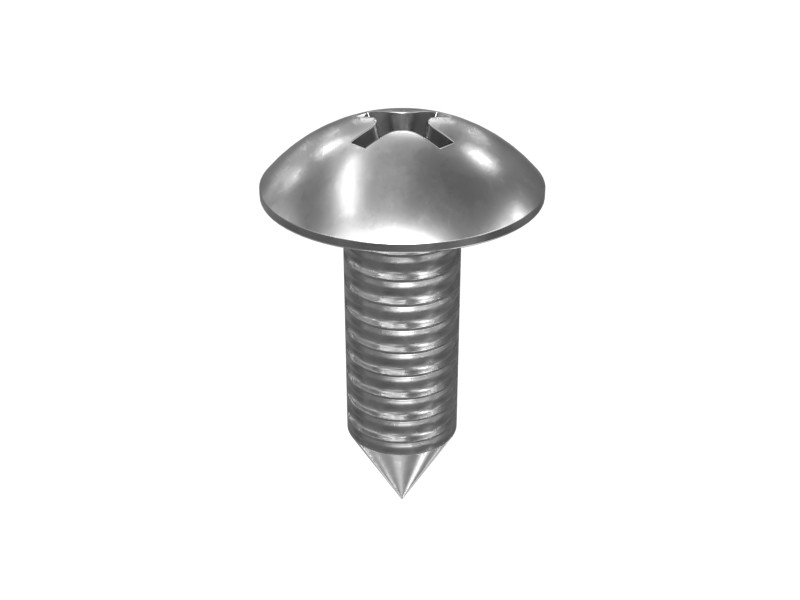

Machine screws are available in a variety of head styles, drive types, sizes, and materials to meet your needs.
Cat® fastener parts are designed for specific applications based on size, strength, clamp load and past performance, information other manufacturers do not have. They are carefully selected to last until machine rebuild or end of life. Non-Cat hardware and fasteners may appear to fit your machine, but no one else knows your equipment the way we do.
- Cat fasteners are manufactured to precise specifications for durability, reliability and high efficiency
- Strength and Quality – Fasteners meet or exceed ISO, ASTM, ASME and SAE requirements.
- Cat bolts, nuts and washers are specifically designed to work together as a system to maximize clamping force.
- Coating meets the special requirements of different applications (RoHS compliant).
Specifications
| Screw Type | Self-Tapping |
|---|---|

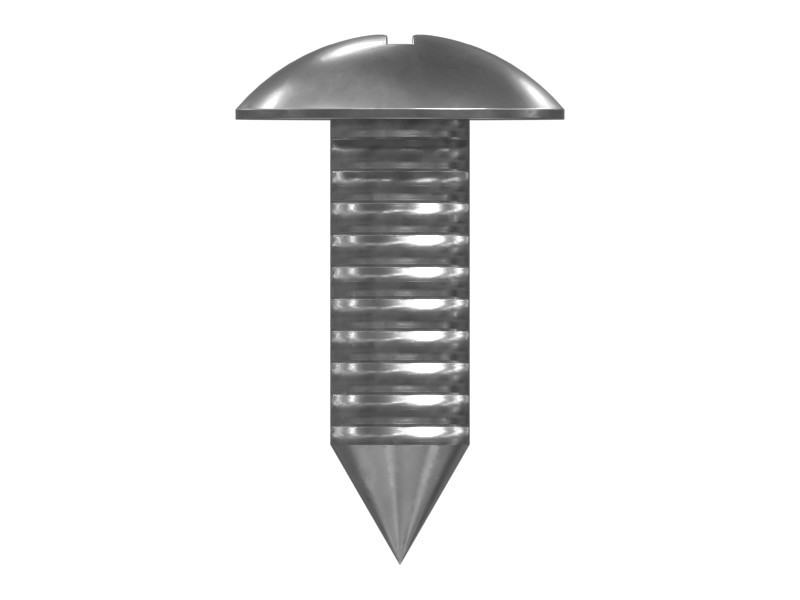

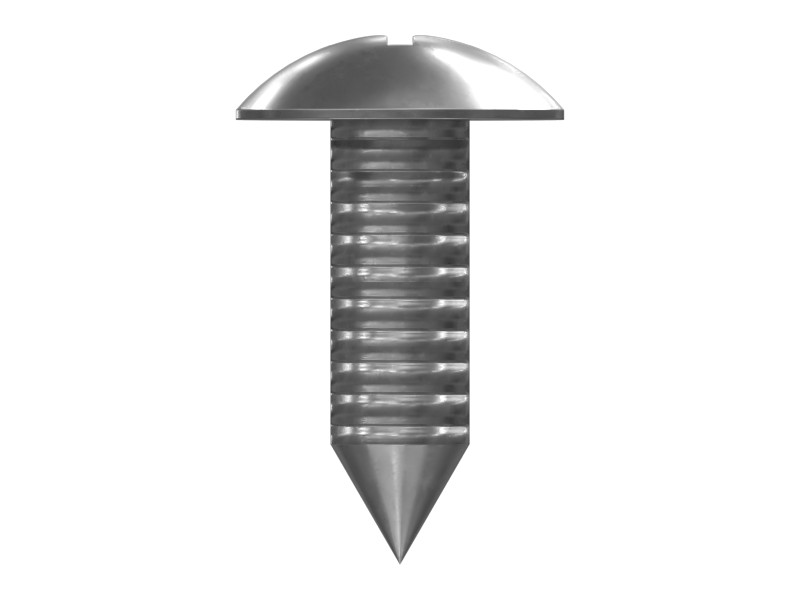

| Head Type | Truss |

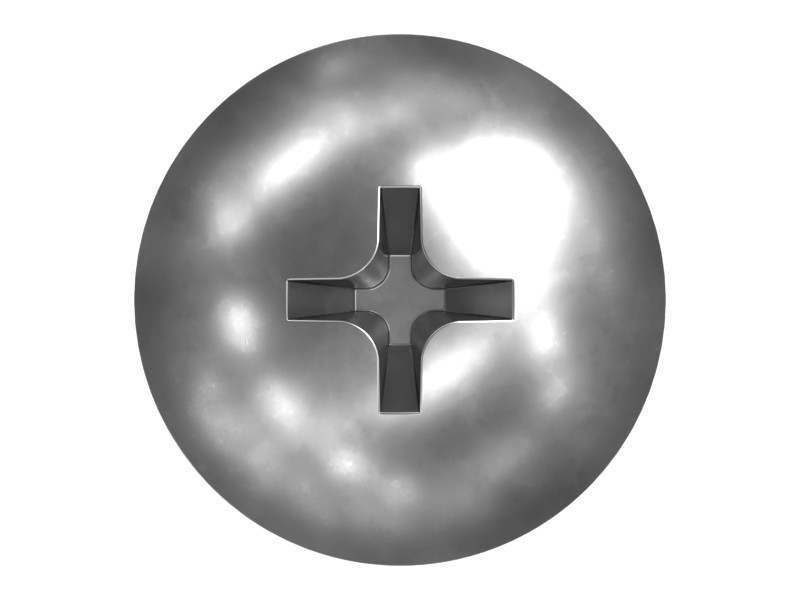

| Groove Type | Phillips Recess |
| Drive Chain | /A in |
| Coating | Zinc Plated |
| Locking Feature | None |
| Thread Size (in – TPI) | #10-16 in |
| Length | 5/8 in |
| Handle Length | Not Specified in |
| Head Diameter | 0.46 in |
| Head Height | 0.13 in |
Compatible Equipment
- Motor Graders: 316F
- Generator Sets: 3512B, C7.1
- Wheel Excavators: M320, M315D2, M320D2, M317D2, M315GC
- Mini Excavators: 307D
- Excavators: 313 GC, 316 GC, 330D L, 349F L, 313, 365C, 323 GX, 313D2, 312 GC, 320 GX, 320D3, 316 GX, 312 GX, 365C L, 313 GX, 329E L, 385C L, 385C, 329D L, 312E L, 313D, 320D2 L, 336F L, 323D L, 324D, 315D L, 320E, 318D2 L, 324D L, 336F L XE, 336E, 325D L, 320D L, 312D2 GC, 312E, 312D, 329E, 330D2, 336D2 L, 352F, 349E L, 345C L, 345C, 345D L, 340D2 L, 349E L VG, 349E, 390D, 374F L, 390F, 345D, 385C FS, 349D L, 6015B, 340D L, 320D3 GC, 336E H, 336D L, 330D, 336D2 GC, 326D L, 313F LGC, 328D LCR, 320D FM, 311D LRR, 336E L, 336F, 318D2, 313F L, 336E LH, 336D2 XE, 320D GC, 312D L, 323D2 L, 312D2, 314D LCR, 315F LCR, 313D2 GC, 320D2 GC, 320D RR, 335F LCR, 318D L, 312D2 L, 330D2 L, 336F LN, 323D, 325D, 313D2-GC, 312F, 336E LN, 323D2, 314D CR, 6015, 320D, 320D2, 336D2, 326D2 L, 329D2, 349D, 349D2 L, 390D L, 390F L, 374D L, 349D2, 374F, 336D, 329D2 L, 326D2, 308D, 329D
- Skid Steer Loaders: 313D2 LGP
