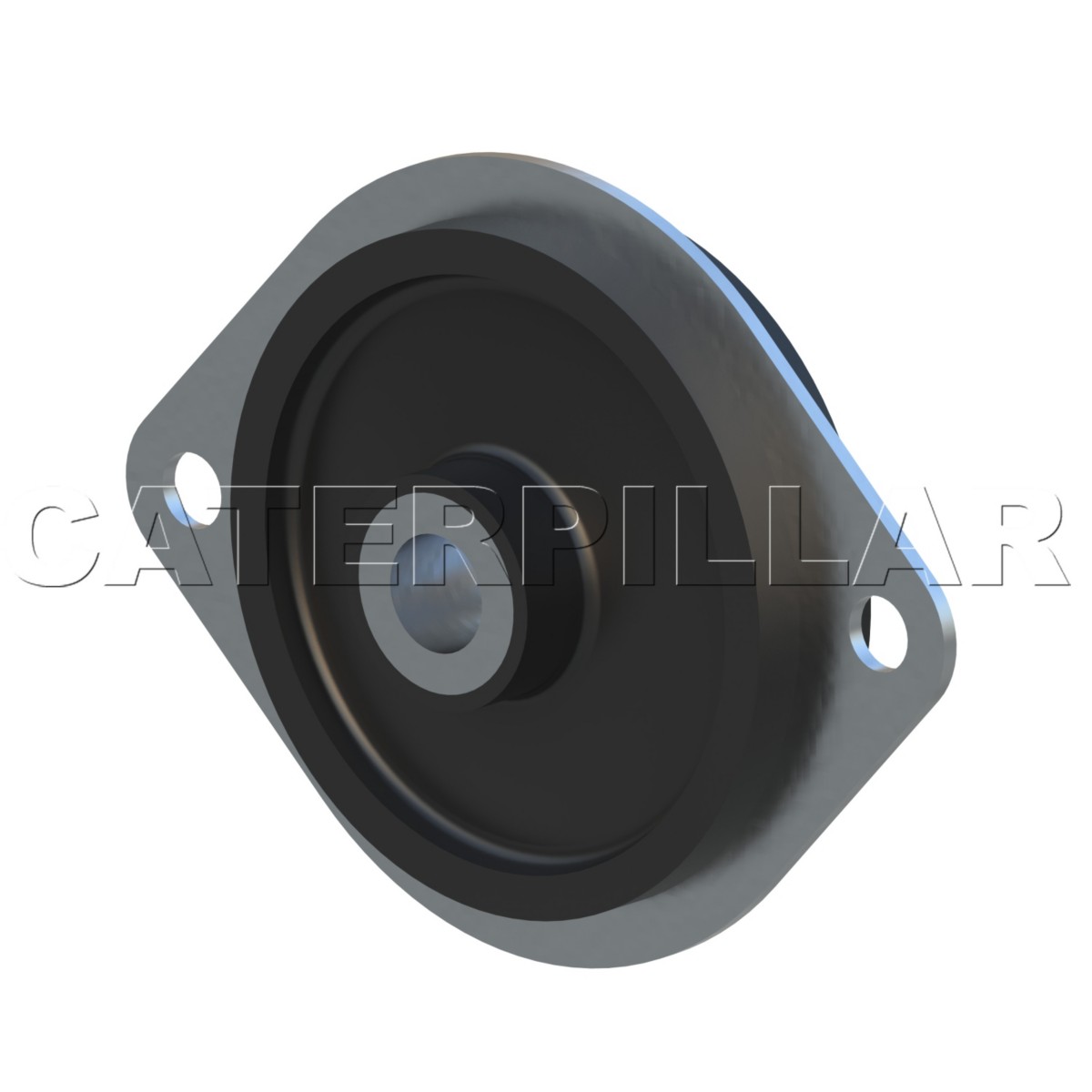

245-7598 6.62 mm ID Panel Mount
Cat® mount securely holds and supports the instrument panel
Description
The isolation mount is used to mount and locate systems, accommodate displacement, and isolate components from the surrounding structure (vibration, shock, noise).
Platform mounts feature an integrated flange and inner sleeve for easy bolted connections. The mount installs through a center hole and attaches with 2 or 4 flange bolts.
Features
Cat® mounting systems are designed to reduce the stress and strain on installed components, improve component durability and extend service life, and improve operator comfort. The entire system (mount design, material selection, placement, fasteners, etc.) is optimized and validated to meet specific application requirements.
Platform mounts are typically used to support axial static loads, and a large-OD rebound washer can be used to limit displacement.
Applications
Platform mounts can be used in different Cat system installations and work efficiently in connections that use sheet metal, such as electrical panels/boxes, coolers, and HVAC components.
Specifications
| Flange Hole Spacing | 49.4 mm (4.25 in) |
|---|---|
| Overall Height or Sleeve Length | 45 mm (1.77 in) |
| Sleeve ID or Thread | 6.6 mm (0.26 in) |
| Mounting Type | Pedestal – 2-Hole Mounting |
Compatible Equipment
- Generator Sets: 3406B, 3406C, C9
- Compactors: C13B, C9.3B, C-9
- Engines: C32, C13, C15, C27, C11, C7, C18
- Skid Steer Loaders: 3126B
