Description
Cat® fastener parts are designed for specific applications based on size, strength, clamp load and past performance, information other manufacturers do not have. They are carefully selected to last until machine rebuild or end of life. Non-Cat hardware and fasteners may appear to fit your machine, but no one else knows your equipment the way we do.
Features
- Cat fasteners are manufactured to precise specifications for durability, reliability and high efficiency
- Strength and Quality – Fasteners meet or exceed ISO, ASTM, ASME and SAE requirements.
- Cat bolts, nuts and washers are specifically designed to work together as a system to maximize clamping force.
- Coating meets the special requirements of different applications (RoHS compliant).
Applications
Cat bolts form a high-performance system with mating hardened washers and nuts to produce consistent, high clamping force. You can trust Cat fasteners to help you build, maintain or rebuild in most machine and shop applications worldwide.
Specifications
| Drive Chain | 18 mm (0.709 in) |
|---|---|
| Hole Thread Pitch | 1.50 |
| Material Description | ISO Class 12 or SAE Grade 8 Equivalent |
| Thread Size | M12 mm (0 in) |
| Coating | None |
| Class or Grade | ISO 898-2 Class 12 |
| Thread Size (Diameter × Pitch) | M12x1.5 mm |
| Thread Direction | RH |
| Thickness | 6 mm (0.236 in) |
| Thread | RH Fine |

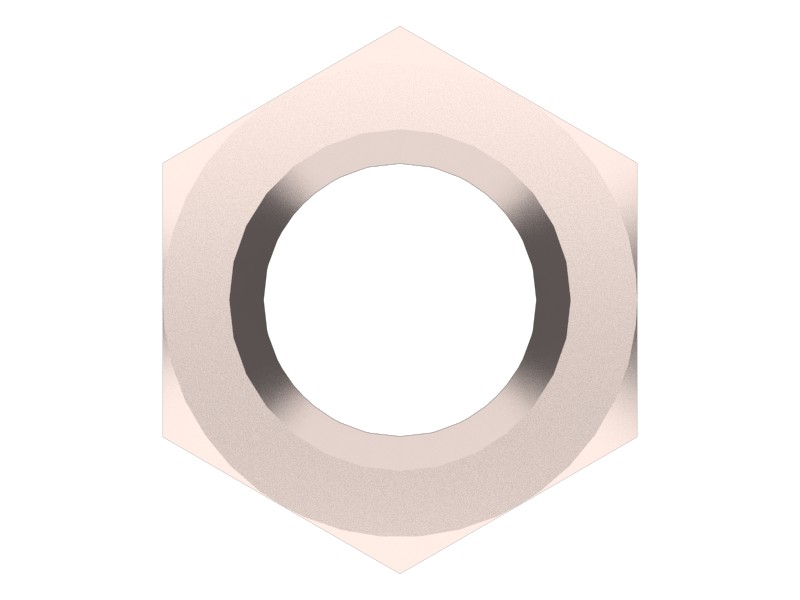

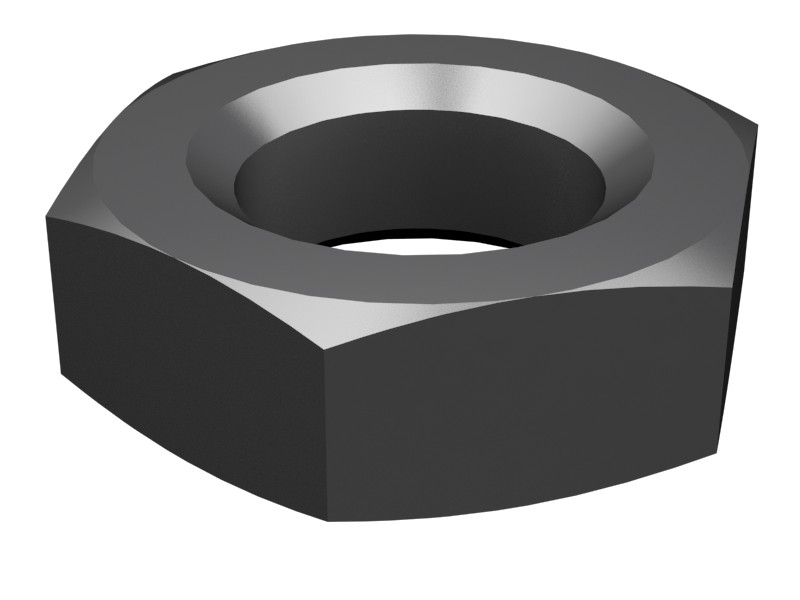

| Nut Model | Hex |
| Thread Size (in – TPI) | M12-1.5 in |
Compatible Equipment
- Motor Graders: 16, 18, 14M, 140H, 16M, 16H, 16M3, 14
- Track Loaders: 816F, 982
- Compactors: C13B
- Engines: C13, C11, C15, C12, C18
- Dozers: D8N, D7R II
- Excavators: 349F L, 352, 345B, 345D L, 349E L, 621H, 365B, 349D L, 349, 345C, 345C L, 365B L, 352F, 345D, 349E, 349E L VG, 621K, 3508B, 355, 349D2 L, 349D2, 349D
- Wheel Loaders: 982M, 980M
- Off-Highway Trucks: 725, 730, 735
Additional information
| Machine Model | 14, 140H, 14M, 16, 16H, 16M, 16M3, 18, 345B, 345C, 345C L, 345D, 345D L, 349, 349D, 349D L, 349D2, 349D2 L, 349E, 349E L, 349E L VG, 349F L, 3508B, 352, 352F, 355, 365B, 365B L, 621H, 621K, 725, 730, 735, 816F, 980M, 982, 982M, C11, C12, C13, C13B, C15, C18, D7R II, D8N |
|---|---|
| Equipment Type | Excavators, Wheel Loaders, Track Loaders, Dozers, Motor Graders, Off-Highway Trucks, Compactors, Engines |
| Part Source | Genuine OEM |
