Description
Cat receptacle group connectors secure wiring connections based on pin count and locking mechanism.
Features

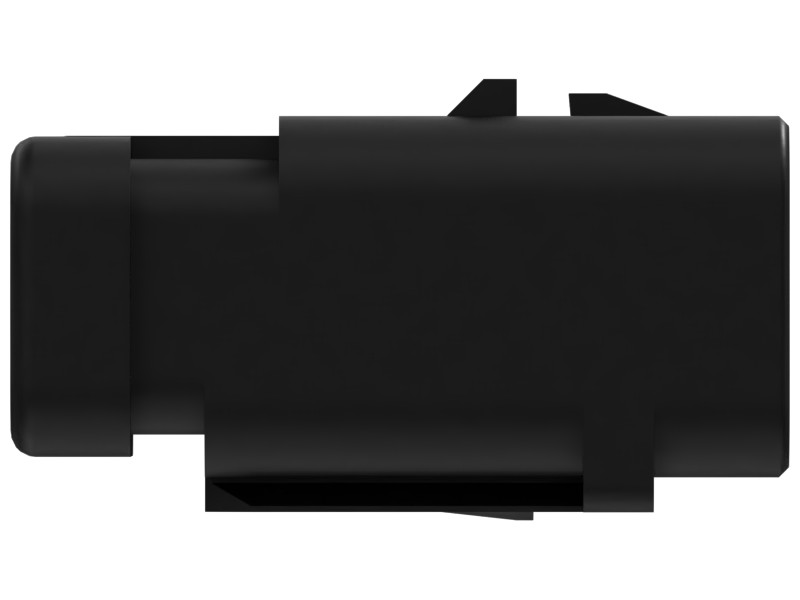

Black 6-Pin Nylon Receptacle Connector
Applications
Receptacle group connectors serve as electrical connectors in wiring harnesses. Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Material | Nylon, 6, 6/12, 6/6 Plastic |
|---|---|
| Overall Width | 26.7 mm (1.1 in) |
| Overall Height | 24.1 mm (0.9 in) |
| Material Description | Nylon |
| Pin | 6 |
| Standard Color | Black |
| Overall Length | 47.6 mm (1.9 in) |
| Connector Type | Pin |
Compatible Equipment
- Generator Sets: 3512B, C7.1
- Motor Graders: 316F, 349 GC
- Wheel Excavators: M320, M315
- Dozers: D7E
- Mini Excavators: 307D, 303.5E, 303.5C, 305E2, 303.5D, 305.5, 305.5E, 306, 305.5E2, 307E2
- Excavators: 330D L, 349F L, 374, 305E2 CR, 313 GC, 316 GC, 313, 350, 320, 340, 323, 323D L, 328D LCR, 336E LH, 326GC, 336D L, 336F L, 336 GC, 336F LN, 320D FM, 329E L, 330D, 330 GC, 320D GC, 329E, 336E, 320D L, 320D2 GC, 336E L, 320D2 L, 336F, 318D2, 336D2 L, 318D2 L, 320C, 312D2, 329D L, 325D, 315D L, 336E H, 313D2 GC, 312F, 336D2 GC, 336D2 XE, 324D L, 320D RR, 320E, 336, 312D, 311D LRR, 312E L, 313D2, 313D, 336E LN, 313F LGC, 323D2 L, 313D2-GC, 325D L, 314C, 320 GC, 312D L, 312D2 GC, 345D L, 365C, 385C, 349E L, 345C, 374F L, 365C L, 349, 390D, 349E, 349E L VG, 352F, 385C L, 345D, 385C FS, 349D L, 326, 323 GX, 355, 330D2 L, 320 GX, 330D2, 352, 312D2 L, 315, 335F LCR, 313F L, 314D LCR, 312E, 330GC, 324D, 336F L XE, 390F, 345C L, 340D2 L, 340D L, 315F LCR, 314D CR, 323D, 395, 3101, 323GC, 311C, 325, 312 GC, 335, 120 GC, 350MHPU, 326D L, 318D L, M325D L MH, 345 GC, 315 GC, 313 GX, 312 GX, 316 GX, 326 GC, 333 GC, 333, 323 GC, 323D2, 320D, 320D2, 329D, 326D2 L, 326D2, 330, 308D, 329D2, 336D2, 303.5E2 CR, 329D2 L, 336D, 390F L, 349D2, 349D2 L, 390D L, 374F, 374D L, 303C CR, 349D, 308E, 305C CR
- Wheel Loaders: 926M, M314, 966K, R1700 XE, 950
- Off-Highway Trucks: 797F, 793, 785, 789, 793D, 789D, 793F
- Skid Steer Loaders: 313D2 LGP
