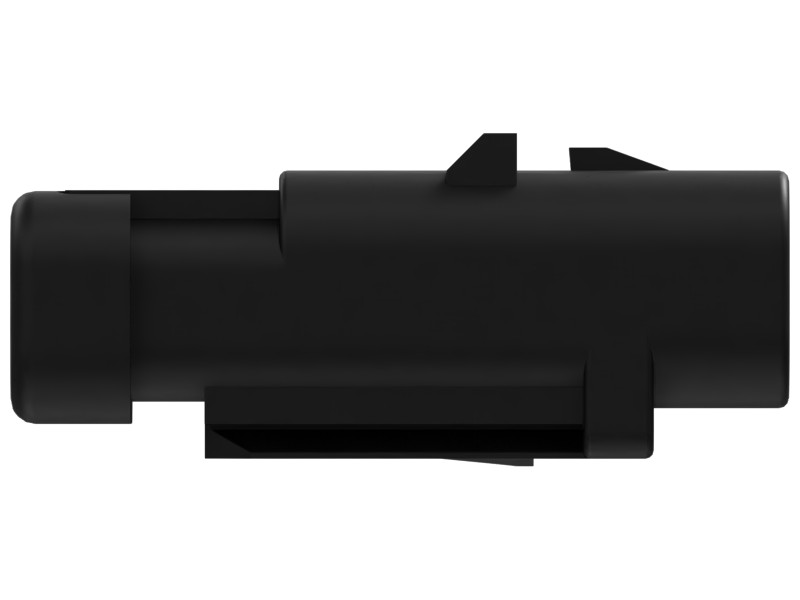

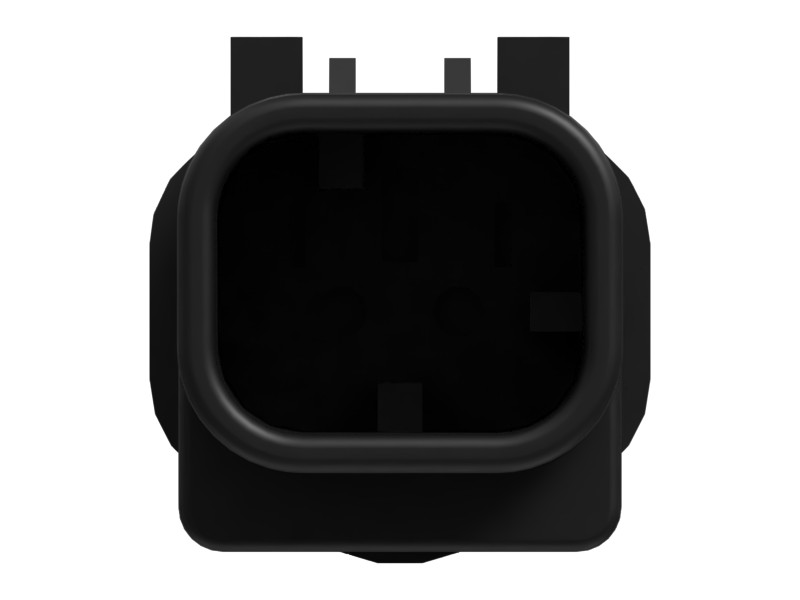

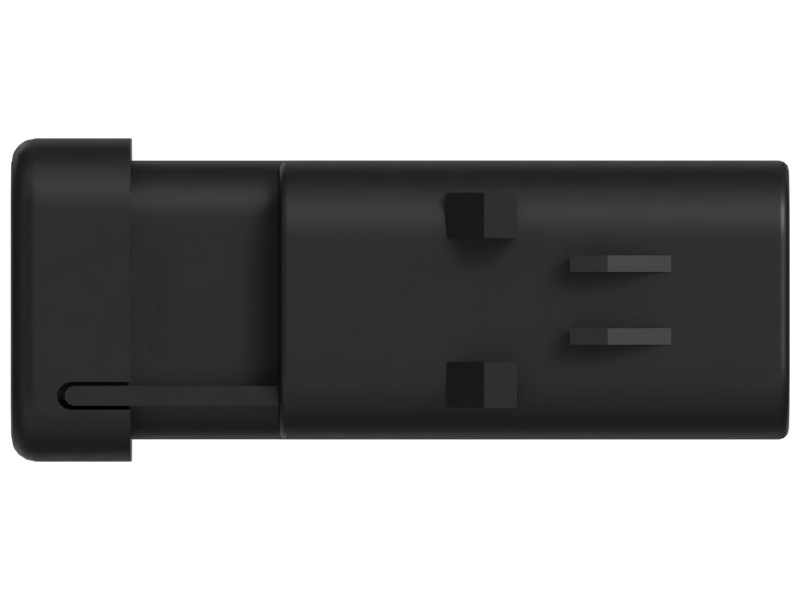

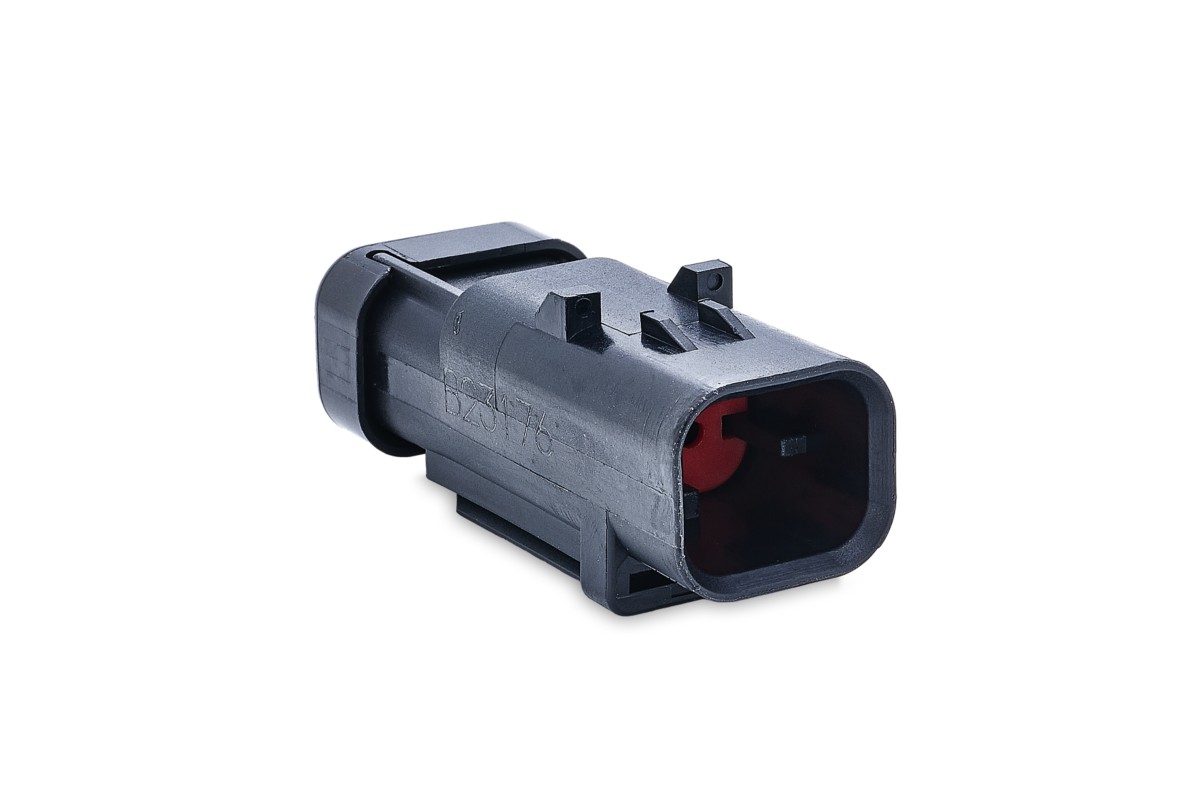

Description
Cat connectors use a pin-and-socket connection system to provide reliable electrical connections in a range of electrical applications on Cat heavy equipment. Quality suited to equipment requirements to meet your expectations.
Features
- Plastic connector receptacle
- Two-position reverse mount, 1 key
- 14-18 AWG
- Contact Type: Pin
- Number of Contacts: 2
- Body Color: Black
- Seal Color: Marine Blue
Applications
Cat connector plug groups provide a reliable mating connection between wires or between a wire and equipment.
Specifications
| Material | Polyamide Plastic |
|---|---|
| Connector Type | Pin |
| Width | 20 mm (0.8 in) |
| Height | 20 mm (0.8 in) |
| Length | 48 mm (1.9 in) |
| Wire Gauge | 18-14 AWG |
Compatible Equipment
- Generator Sets: 3516C, C9, 3512B, C7.1
- Track Loaders: 953K, 963K, 973K, 963, 953
- Cold Planers: PM622, PM620
- Compactors: C9.3B
- Engines: C15, C32, C27, C13, C18
- Excavators: 320D, 330, 320D2, 336D, 336D2, 308E, 326D2 L, 326D2, 305C CR, 308D, 329D2 L, 329D2, 329D, 349D2, 390F L, 307.5, 374D L, 349D2 L, 374F, 303.5E2 CR, 390D L, 349D, 303C CR, 307E, 306E2, 374, 313, 313 GC, 316 GC, 330D L, 305E2 CR, 349F L, 395, 340, 350, 349, 352, 6030, 323, 315 GC, 313D2, 312 GC, 320 GC, 320, 320 GX, 325, 323 GX, 320D3, 326, 336, 336 GC, 345 GC, 326GC, 312D2 L, 312D2, 355, 330D2 L, 329D L, 330 GC, 333, 323D2 L, 324D L, 336D L, 312D, 311D LRR, 320D FM, 336D2 XE, 328D LCR, 336E L, 336E LH, 318D2 L, 320D RR, 324D, 329E L, 320D L, 313F LGC, 312D2 GC, 336D2 L, 314D CR, 336F L XE, 325D, 323D, 315D L, 320E, 329E, 320D GC, 330D, 323D L, 312D L, 325D L, 336F LN, 330D2, 312E L, 312E, 323D2, 313D2 GC, 330GC, 336E, 336F L, 314D LCR, 320D2 L, 313D, 315F LCR, 320D2 GC, 336E H, 313D2-GC, 336E LN, 336D2 GC, 335F LCR, 336F, 349E L, 345D L, 345C L, 365C, 349D L, 349E L VG, 390F, 352F, 365C L, 340D L, 374F L, 345C, 385C, 349E, 345D, 390D, 340D2 L, 385C L, 385C FS, 326D L, 313F L, 318D2, 6040, 326 GC, M325D L MH, 318D L, 312F, 323GC, 315, 335, 316 GX, 312 GX, 313 GX, 323 GC, 3101, 350MHPU, 320D3 GC, 333 GC
- Skid Steer Loaders: 313D2 LGP
- Motor Graders: 16M3, 16, 14, 18, 349 GC, 316F, 140 GC
- Wheel Excavators: M315, M317D2, MD6200, M315D2, M320, M315GC
- Dozers: D6T, D6T LGP, D6R III, D9
- Mini Excavators: 303.5E, 305.5E2, 307D, 305.5E, 307E2, 307, 306, 305.5, 303.5C, 305E2, 308E2, 310, 303.5D, 308.5, 308, 305.5 GC
- Wheel Loaders: 950L, 966F, 972H, 950H, 966H, 966K, 980H, 962L, 980L, RM500B, M314, R2900 XE, R1700K
- Off-Highway Trucks: 773, 775G, 773E
