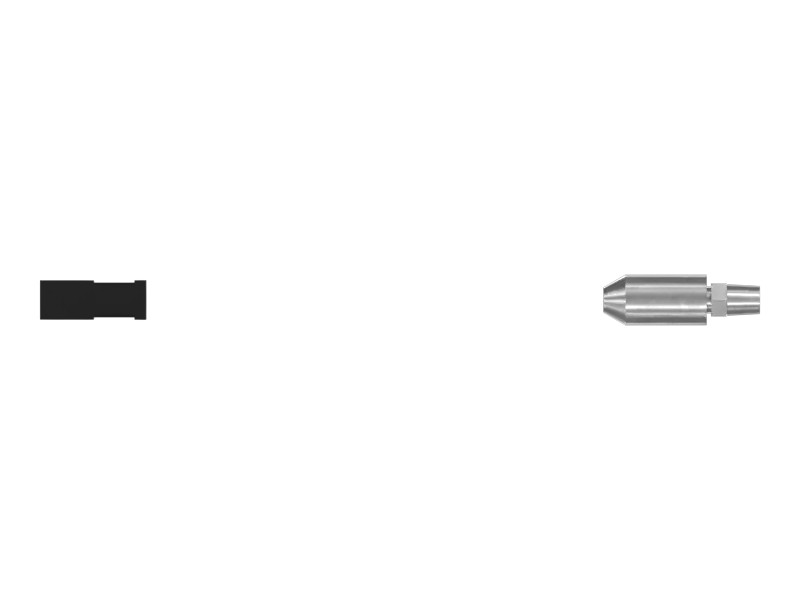

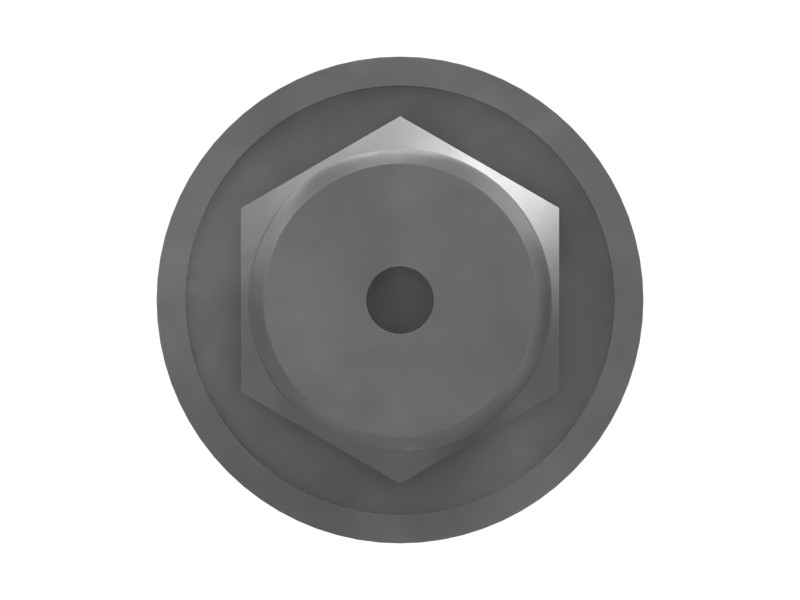

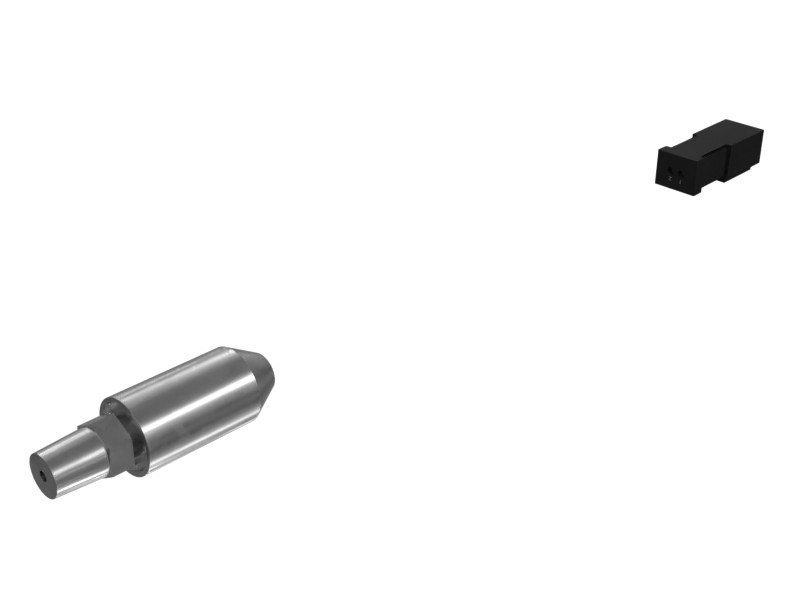

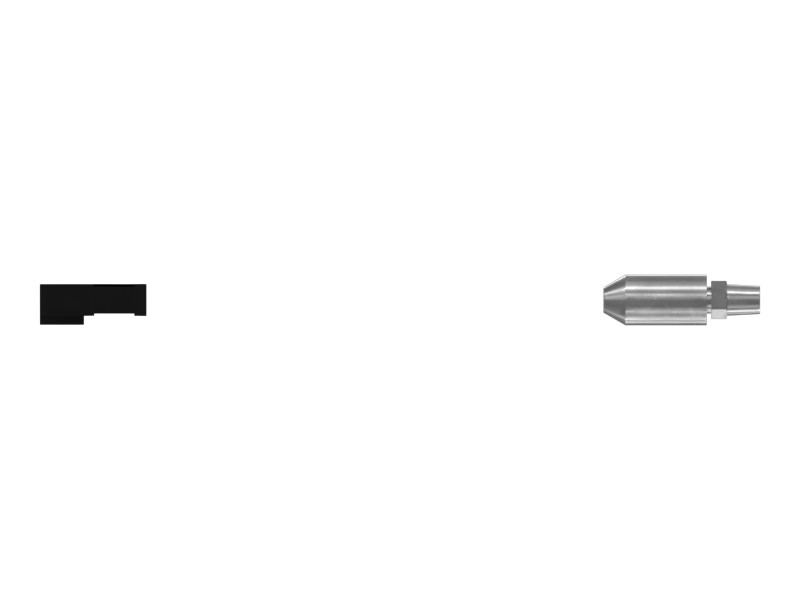

242-8903 Parking Brake Pressure Switch
Cat® Parking Brake Pressure Switch with pressure sensing that triggers an actuator mechanism at a set pressure
Description
Cat pressure switch groups are designed to turn on and off in response to changes in the system set pressure. Cat parts ensure your equipment runs at its best.
Features
- Steel pressure switch with pigtail connector
- Activation Pressure: 517 kPa (75 psi)
- Contact Position: Normally Open
- Media: Oil, air
- Voltage: 5-28 VDC
- Connector Type: 3-Pin DT
- Thread Size: 1/4-18 NPTF
- ROHS compliant
- Rugged design for long service life
- High accuracy and stable performance
- Quick and easy installation
- Designed to work with other Cat parts to ensure the equipment reaches its full potential
Applications
Refer to your Operation and Maintenance Manual or contact MECHSC for more information. Cat parts can operate in heavy-duty applications in environments with severe vibration, shock, extreme operating temperature ranges, thermal cycling, thermal shock, moisture, corrosion and dust.
Specifications
| Material | Thermoplastic Plastic |
|---|---|
| Overall Length | 307.67 mm (12.11 in) |
| Hex Size | 14.3 mm (0.562 in) |
| Connector Type | 2-Pin DT |
| Thread Size | 1/4-18 NPTF in |
Compatible Equipment
- Off-Highway Trucks: 773, 789D, 773E, 777D, 785, 777E, 785D, 789, 793D, 793
