Description
Cat® Standard Efficiency Air Filters are available for all Cat equipment models and are recommended for normal-duty filtration. The filter elements use standard efficiency media to keep dust, soot, sand and other contaminants out of the engine air intake system.

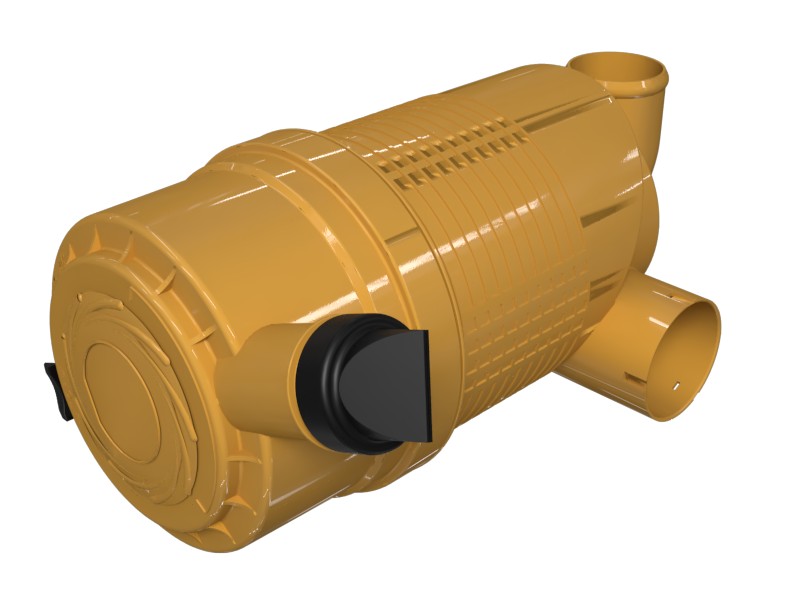

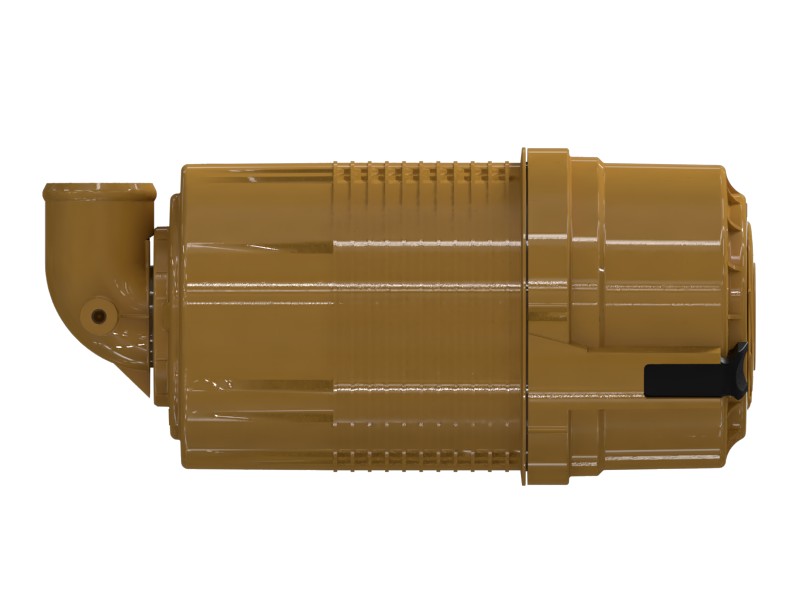

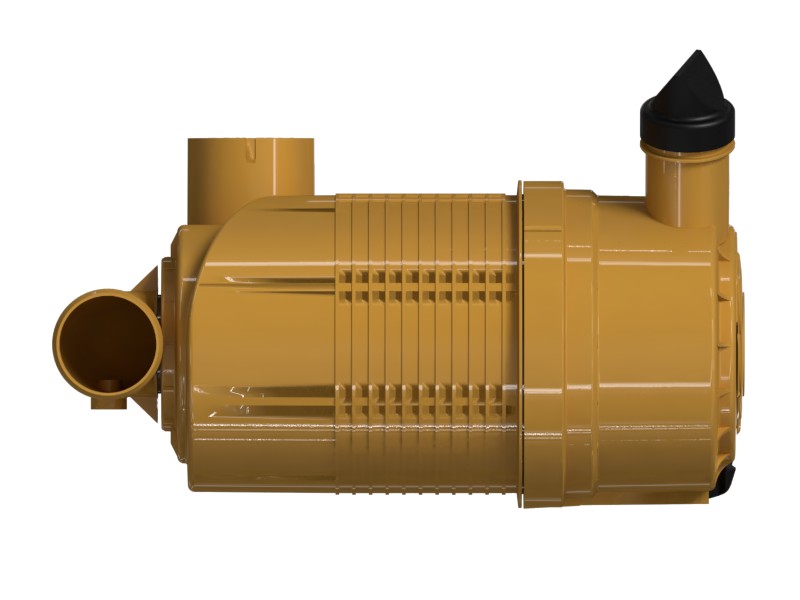

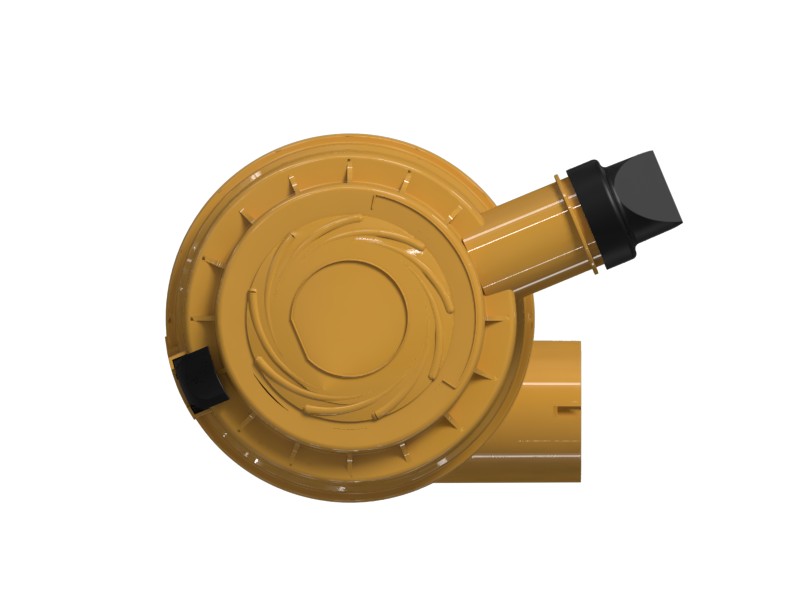

Choosing Cat air filters is a cost-effective way to protect your equipment. This group contains a pair of element groups, a cover group and a valve.
Applications
Normal operating conditions. Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Height | 281.2 mm (11.071 in) |
|---|---|
| Overall Diameter | 196 mm (7.7 in) |
| Weight | 1.772 kg (3.9 lb) |
| Thread Size | 0.4 in |
| Width | 196 mm (7.717 in) |
| Length | 409.6 mm (16.126 in) |
| Type | Round |
| Outlet Size | 61.5 mm (2.421 in) |
| Mounting | Special |
| Overall Width | 196 mm (7.72 in) |
| Overall Length | 415.2 mm (16.3 in) |
| Overall Height | 282.1 mm (11.1 in) |
Compatible Equipment
- Skid Steer Loaders: 216B3, 226B, 226B3
Additional information
| Machine Model | |
|---|---|
| Equipment Type | |
| Part Source | Genuine OEM |
