Description
Cat engine service parts are used to replace the valve springs in the cylinder head assembly during an engine overhaul or routine maintenance.
Features

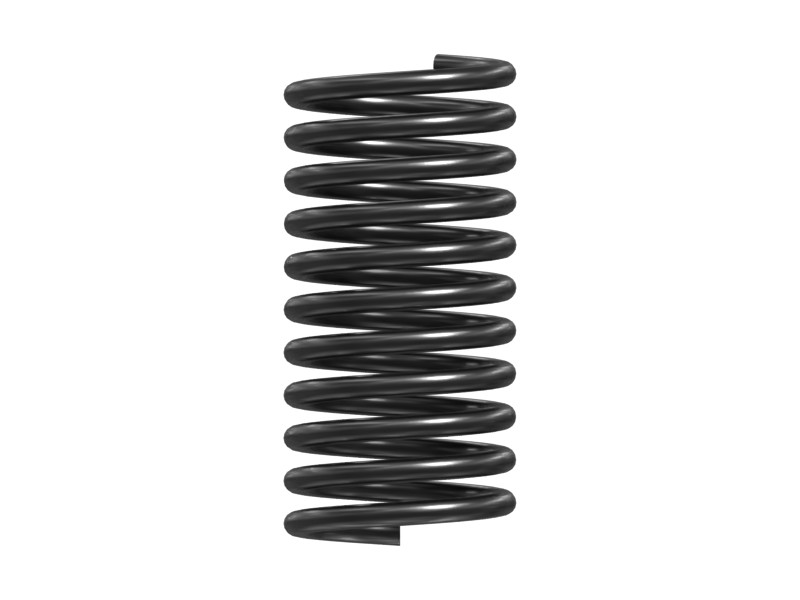

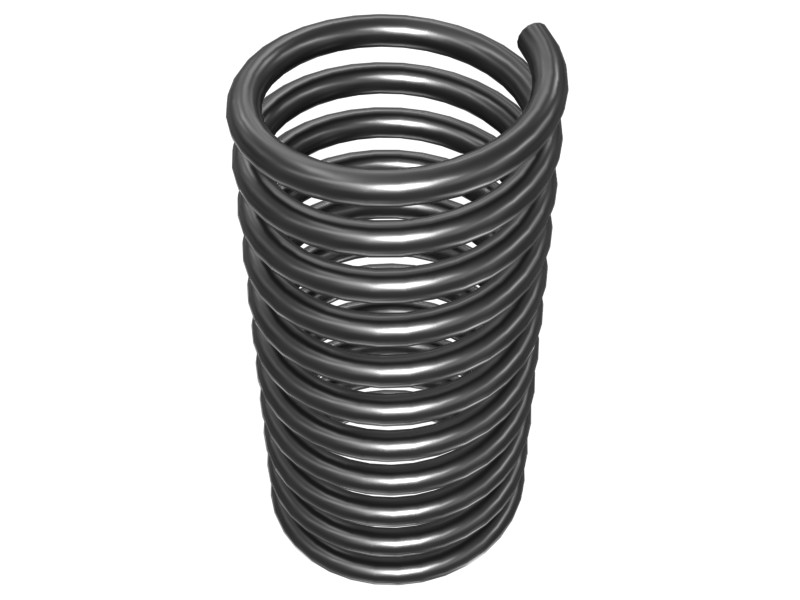

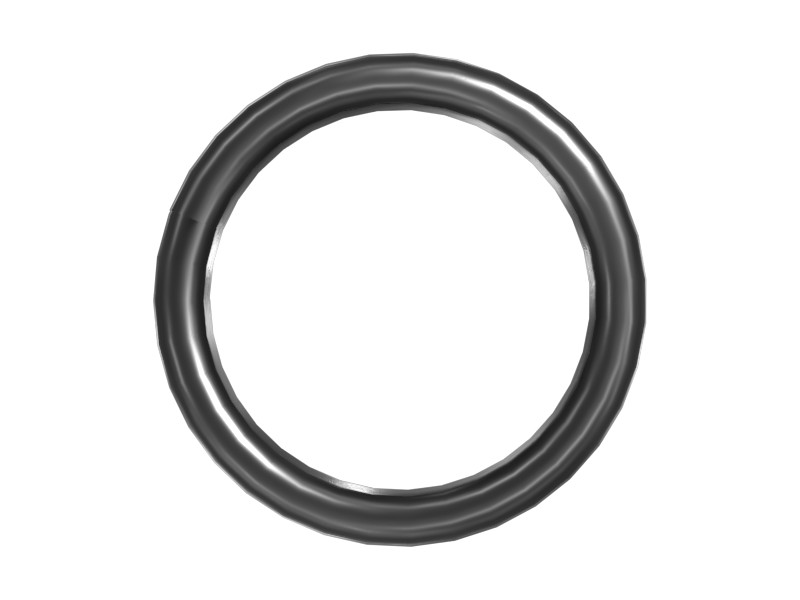

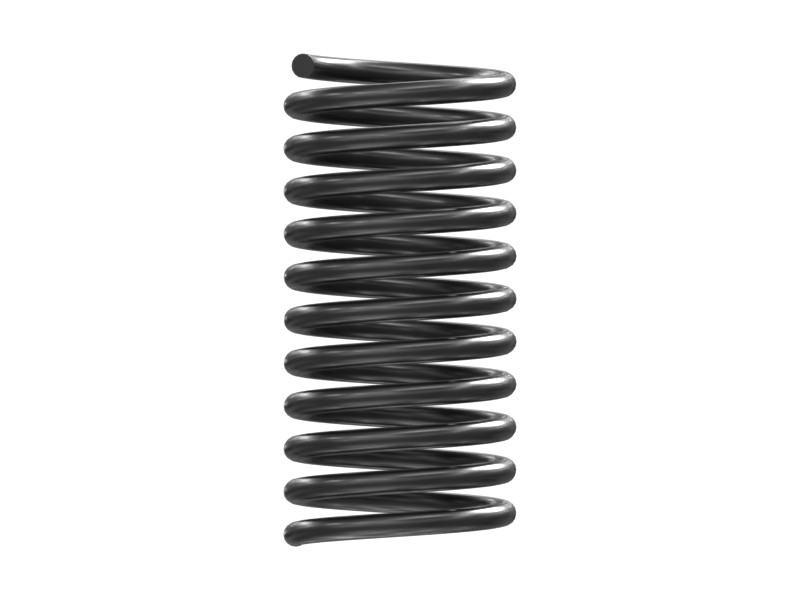

- Steel inner valve spring
- 67.69 mm (2.67 in) free length
- 3.30 mm (0.13 in) wire diameter
- Inside Diameter: 21.96 mm (0.86 in)
- Outside Diameter: 28.56 mm (1.13 in)
- Tangs on both ends for retention
- Emissions control
Applications
Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Material | Alloy Steel |
|---|
Compatible Equipment
- Motor Graders: 14
- Generator Sets: C9
- Compactors: C-9
- Dozers: D6R II, D6T, D6R III, D6R XL, D6R, D7R, D6R LGP
- Excavators: 330D L, 336D2 L, 330D, 336D2 GC, 336D L, 336D2 XE, 637G, 637E, 340D2 L, 340D L, 336D2, 336D
