Description
Cat® fastener parts are designed for specific applications based on size, strength, clamp load and past performance, information other manufacturers do not have. They are carefully selected to last until machine rebuild or end of life. Non-Cat hardware and fasteners may appear to fit your machine, but no one else knows your equipment the way we do.
Features
- Cat fasteners are manufactured to precise specifications for durability, reliability and high efficiency
- Strength and Quality – Fasteners meet or exceed ISO, ASTM, ASME and SAE requirements.
- Cat bolts, nuts and washers are specifically designed to work together as a system to maximize clamping force.
- Coating meets the special requirements of different applications (RoHS compliant).
Applications
Cat bolts form a high-performance system with mating washers and nuts to produce consistent, high clamping force. You can rely on Cat fasteners to help you build, maintain or rebuild – for most machine and shop applications around the world.
Specifications

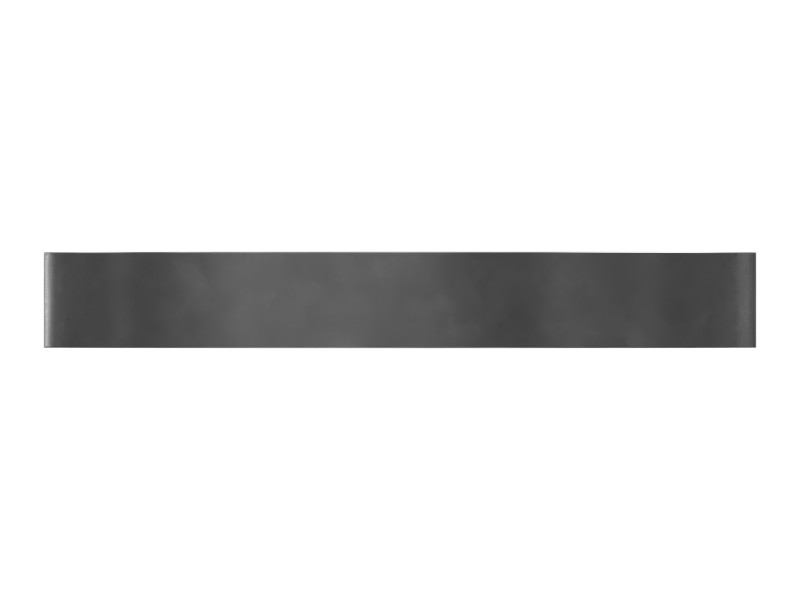

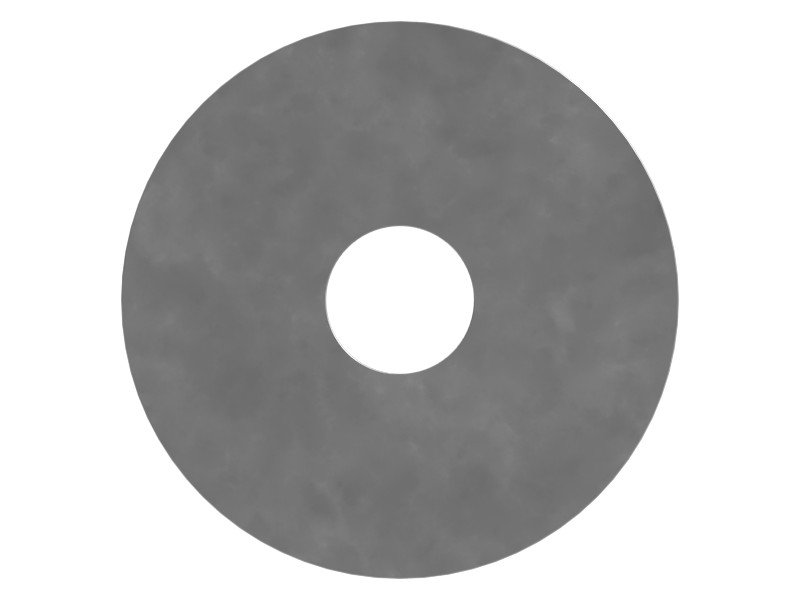

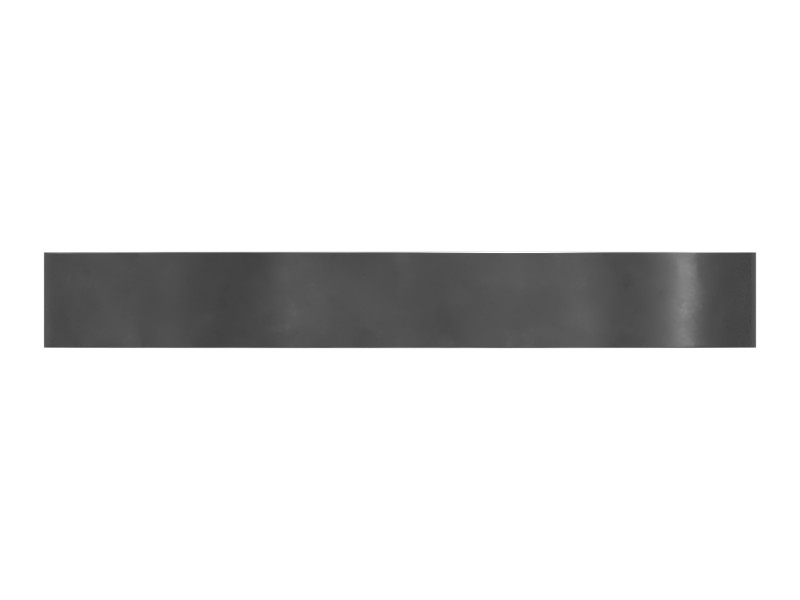

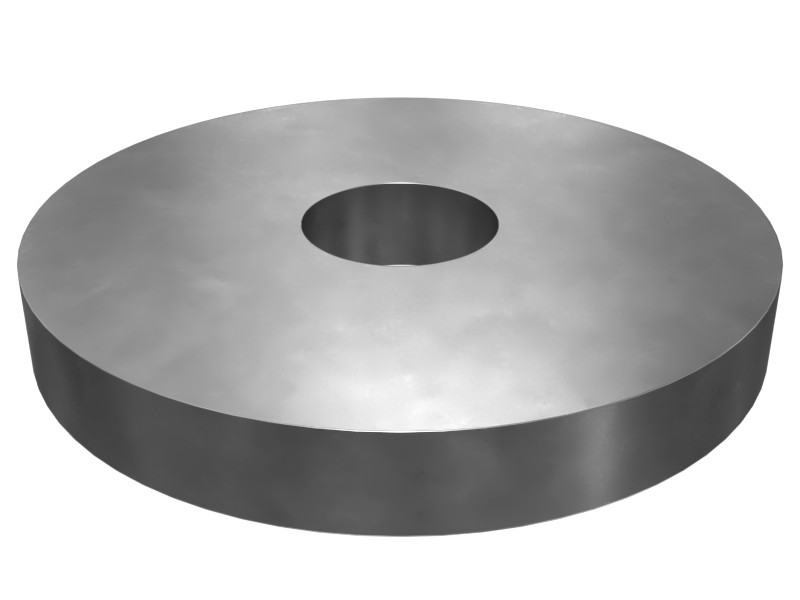

| Gasket Type | Flat Washer |
|---|---|
| Outside Diameter | 82.5 mm (3.248 in) |
| Inside Diameter | 22 mm (0.866 in) |
| Thickness | 11 mm (0.433 in) |
| Fits Bolt Size | M20 mm (3/4 in) |
| Coating | Zinc flake provides moderate to high corrosion protection and repeatable assembly performance through built-in lubrication. Salt spray resistance: 720 hours with no red rust. Coating color – black (M12 and smaller), gray (larger than M12). |
Compatible Equipment
- Track Loaders: 993
- Cold Planers: PL87, PL83, PL72
- Dozers: D8, D6R, D6R LGP, D6R XL, D7, D6T, D9, D10T2, D7E, D6R III, D9R, D6T LGP, D8R, D8T, D7R II, D9T, D7R, D10, D6R II
- Excavators: 3508B
