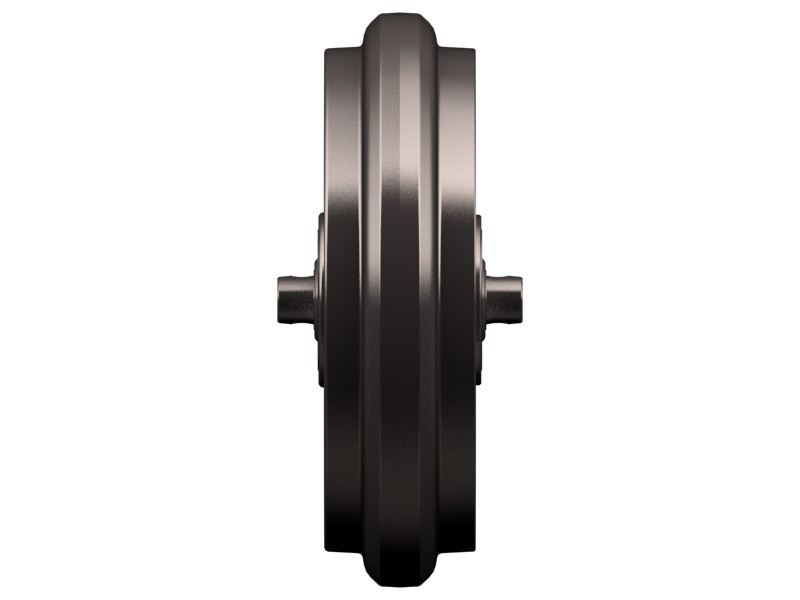

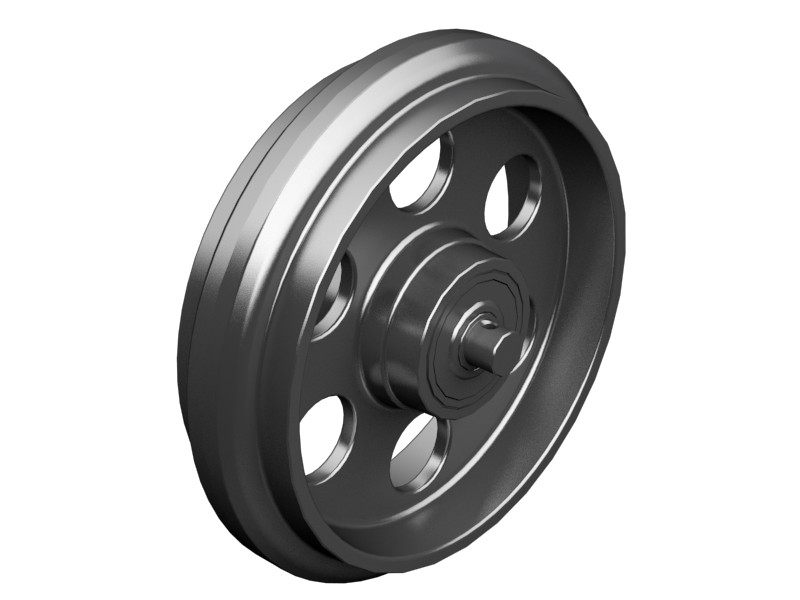

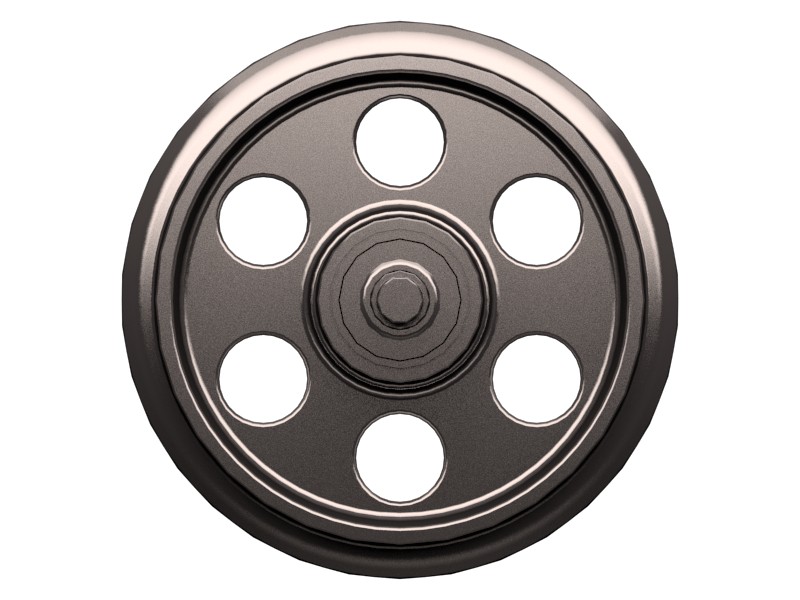

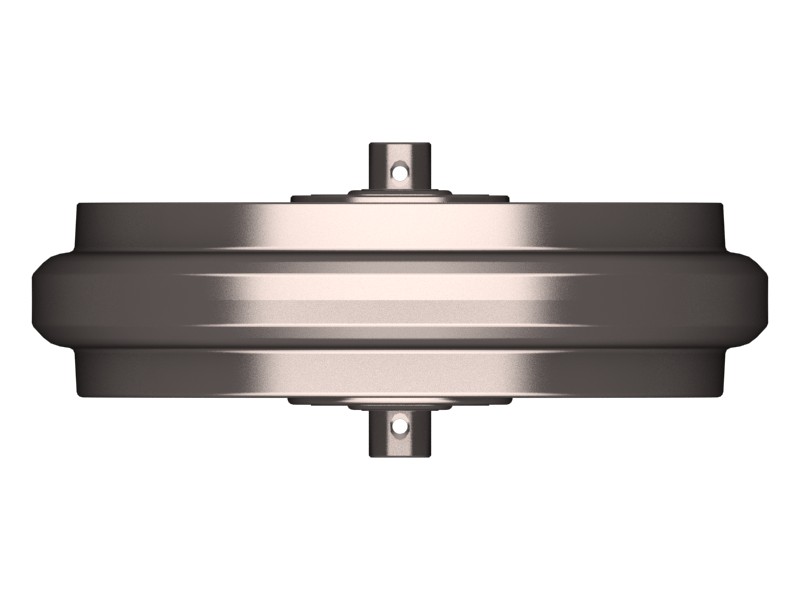

240-6304 Idler Gear Group
Wholesale only · Full payment before shipment · Send your machine nameplate to confirm fitment
Description
Idlers guide the track into and out of the track rollers. They intermittently support the weight of the machine and provide a way to control track slack and tension.
Specifications
| Tread Type | Conventional Tread |
|---|---|
| Machine Side | Interchangeable |
| Tread Diameter | 335 mm (13.19 in) |
| Idler Rim Width | 100 mm (3.937 in) |
| Center Flange Diameter | 380 mm (14.961 in) |
| Bearing Inside Diameter | 90 mm (3.543 in) |
| Center Flange Width | 50 mm (1.969 in) |
| Hole Diameter | 97 mm (3.819 in) |
Compatible Equipment
- Mini Excavators: 306, 305.5, 305.5E2, 305.5E
- Excavators: 306E2, 305, 306E
Additional information
| Machine Model | |
|---|---|
| Equipment Type | |
| Part Source | Genuine OEM |
