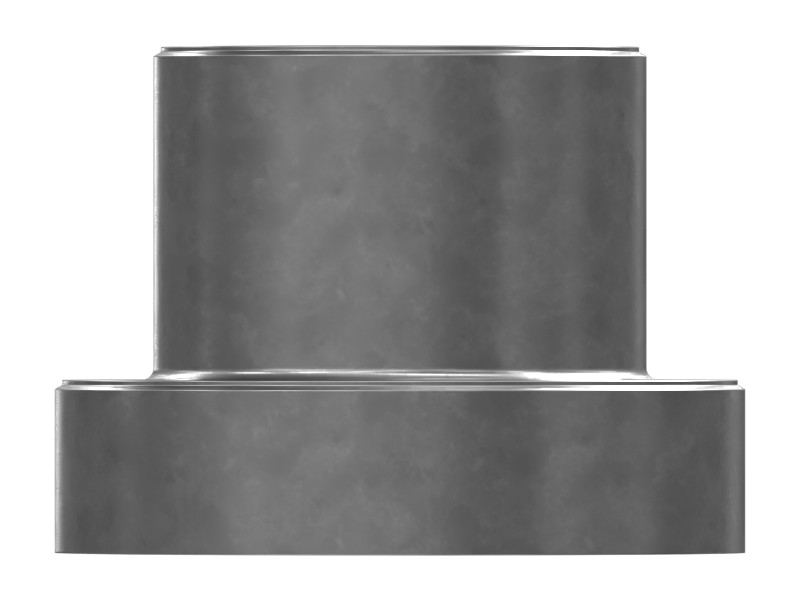

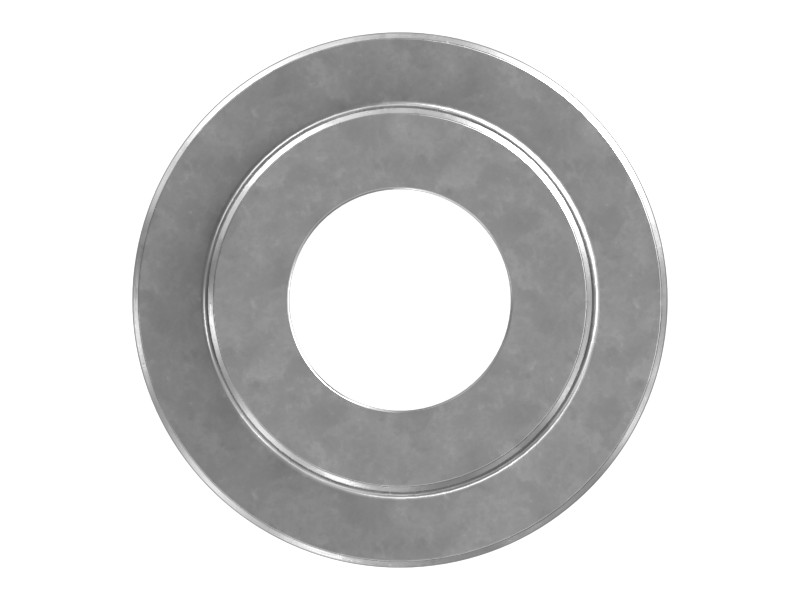

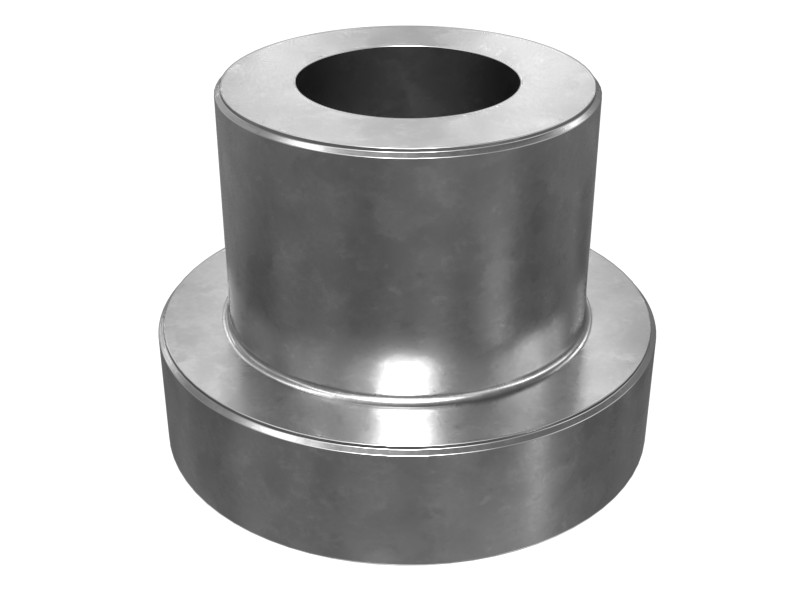

239-6630 11.65 mm ID Idler Pulley Collar
Cat® idler pulley collar for belt tensioners ensures effective power transmission and smooth operation
Description
Collar for the shaft used in the compressor idler pulley of certain excavator models.
Features
- Steel collar
- Inside Diameter: 11.65 mm (0.459 in)
Applications
Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Material | Carbon Steel |
|---|---|
| Inside Diameter | 11.65 mm (0.459 in) |
| Outside Diameter | 20 mm (0.79 in) |
| Flange Diameter | 28 mm (1.10 in) |
| Height | 20.5 mm (0.81 in) |
Compatible Equipment
- Excavators: 311D LRR, 312C, 323D L, 320C, 320D FM, 312D L, 314D LCR, 312C L, 315C, 312D, 320D L, 320D RR, 318D L, 315D L, 320C L, 320D GC, 314D CR, 313D, 323D, 320D
