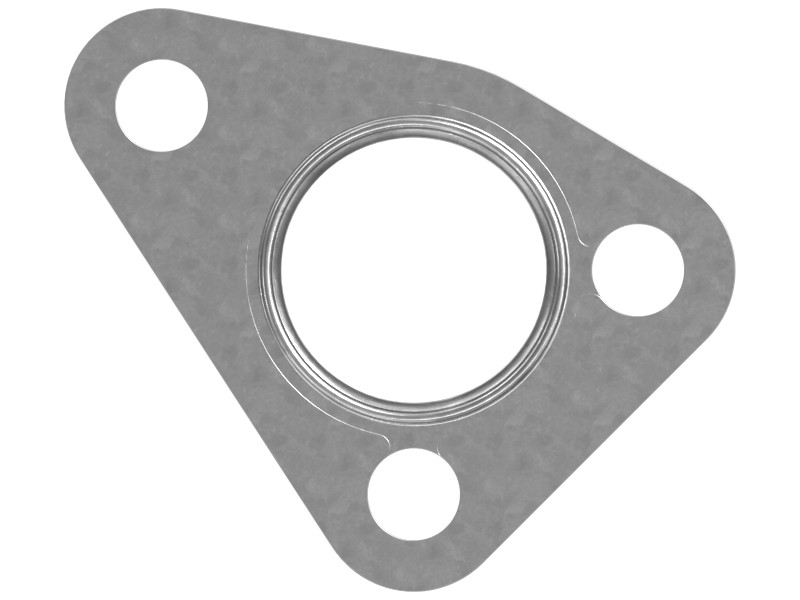

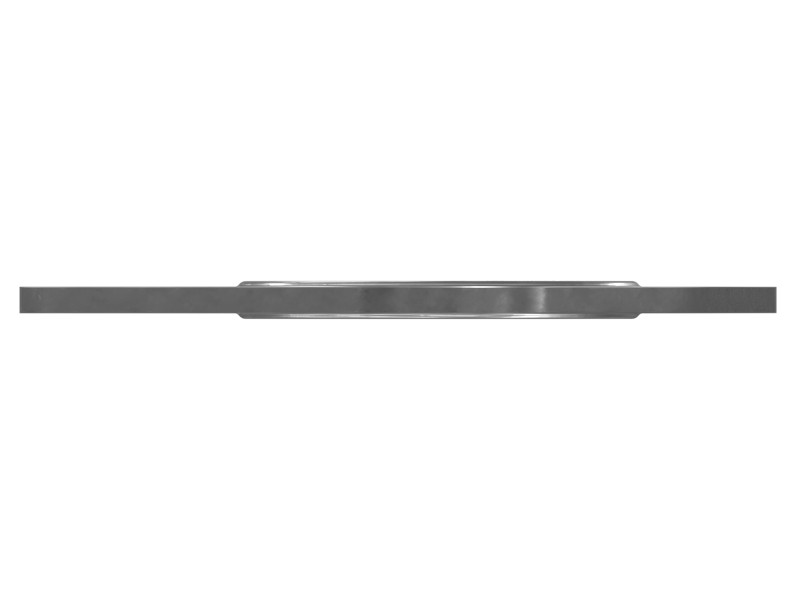

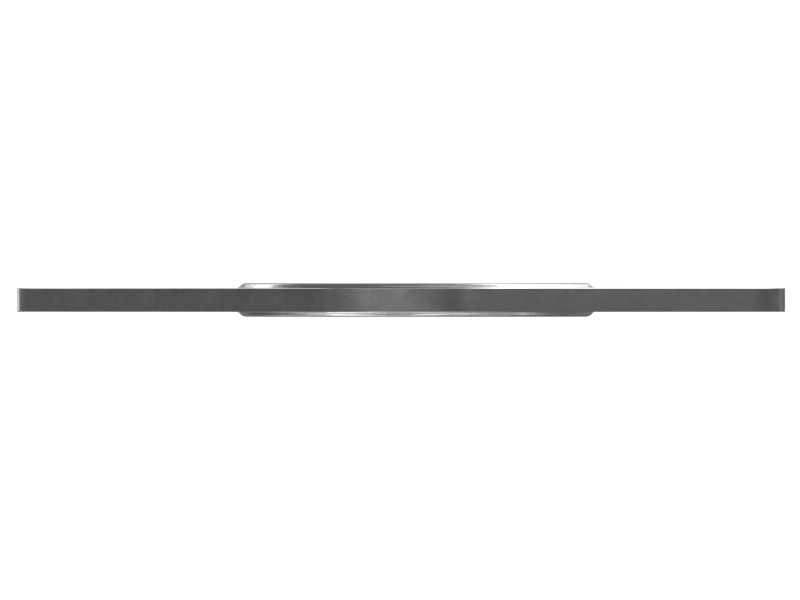

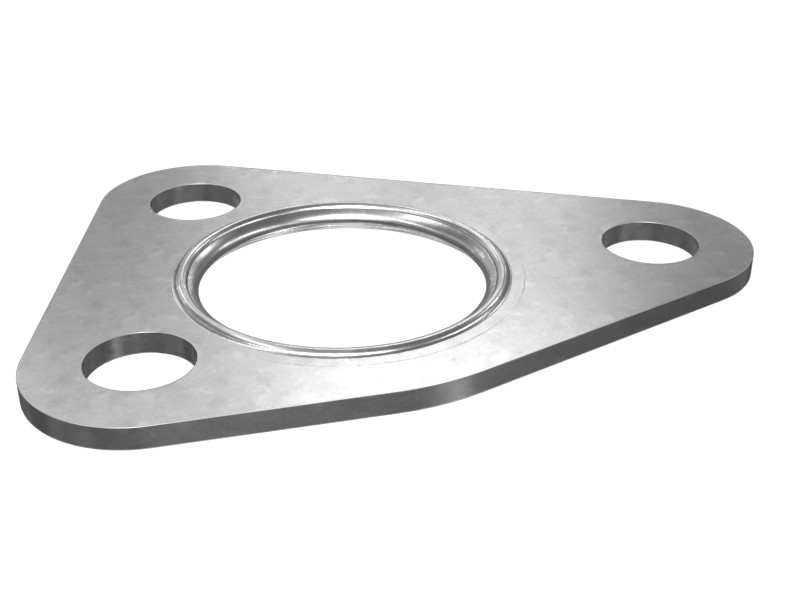

239-5571 2.28 mm Thickness Integral Edge Bonded Steel
Cat® Zinc Plated Steel Rubber Edge-Bonded Sealing Gasket for Engine Block and Engine Oil Line
Description
Cat® edge-bonded seals are used in static sealing applications and are designed with rubber bonded to a plastic or metal carrier to prevent leakage and contamination.
Features
Cat edge-bonded seals are easy to assemble, offer high bolt load retention and conform better to the surfaces of mating parts. Cat edge-bonded seals are made of materials compatible with the fluids, temperatures and pressures in Cat engines and machines. These materials resist wear and extrusion and give the seal excellent compression set resistance. Genuine Cat seals protect your investment.
Specifications
| Material | Carbon Steel |
|---|---|
| Overall Width | 66 mm |
| Overall Length | 76 mm |
| Material Thickness | 2.28 mm (0.09 in) |
| Primary Seal Material | FKM |
| Seal Shape | Irregular |
| Material Description | FKM rubber has a service temperature range of -40 to 150C and is resistant to air, fuel (including biodiesel), lubricants and engine oil. FKM rubber should not be used in applications requiring water or coolant resistance. |
Compatible Equipment
- Track Loaders: 992, 993, 990K
- Wheel Excavators: MD6250, MD6310
- Engines: C32, C27
- Dozers: D10, D10R, D6T, D10T, D11, D11T, D10N, D10T2, D9R, D9L
- Excavators: 6040, 6015, 6030, 637E, 637G, 6015B, 6020B
- Wheel Loaders: 992K
- Off-Highway Trucks: 777, 777E, 773, 773E, 773D, 777D, 773F, 775G, 771D
- Asphalt Pavers: AD63
- Skid Steer Loaders: 232D3, 226D3, 24
Additional information
| Machine Model | 226D3, 232D3, 24, 6015, 6015B, 6020B, 6030, 6040, 637E, 637G, 771D, 773, 773D, 773E, 773F, 775G, 777, 777D, 777E, 990K, 992, 992K, 993, AD63, C27, C32, D10, D10N, D10R, D10T, D10T2, D11, D11T, D6T, D9L, D9R, MD6250, MD6310 |
|---|---|
| Equipment Type | Excavators, Wheel Excavators, Wheel Loaders, Track Loaders, Skid Steer Loaders, Dozers, Off-Highway Trucks, Asphalt Pavers, Engines |
| Part Source | Genuine OEM |
