Description

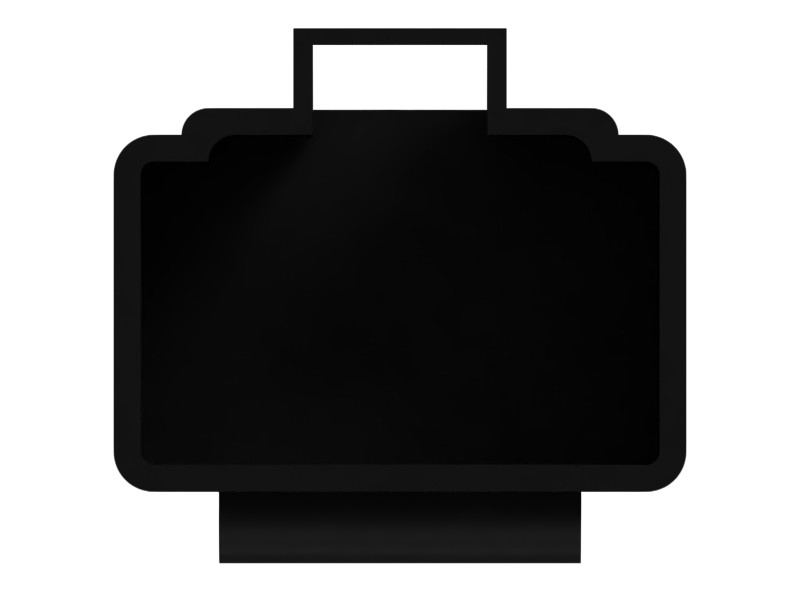

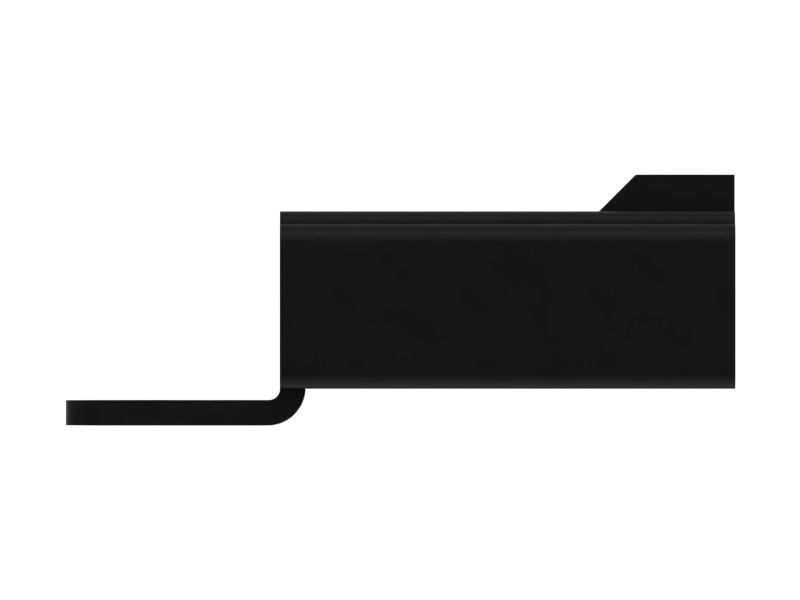

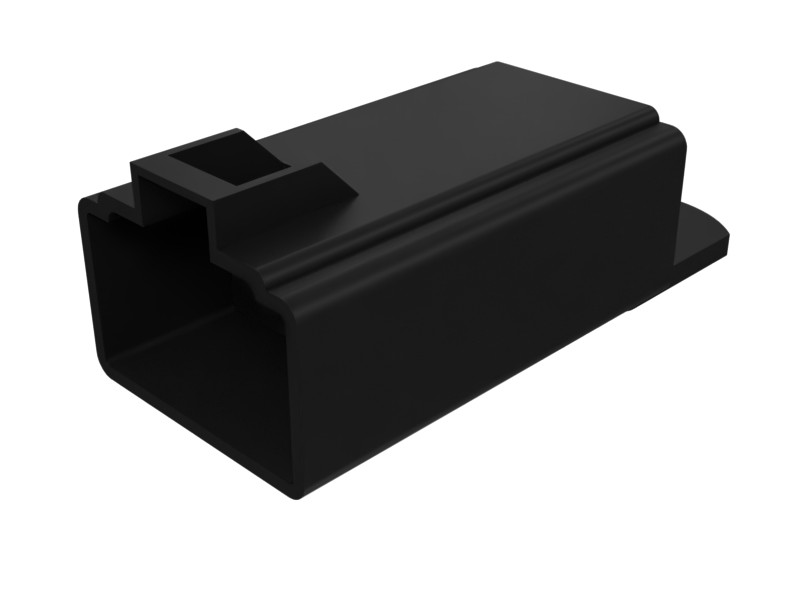

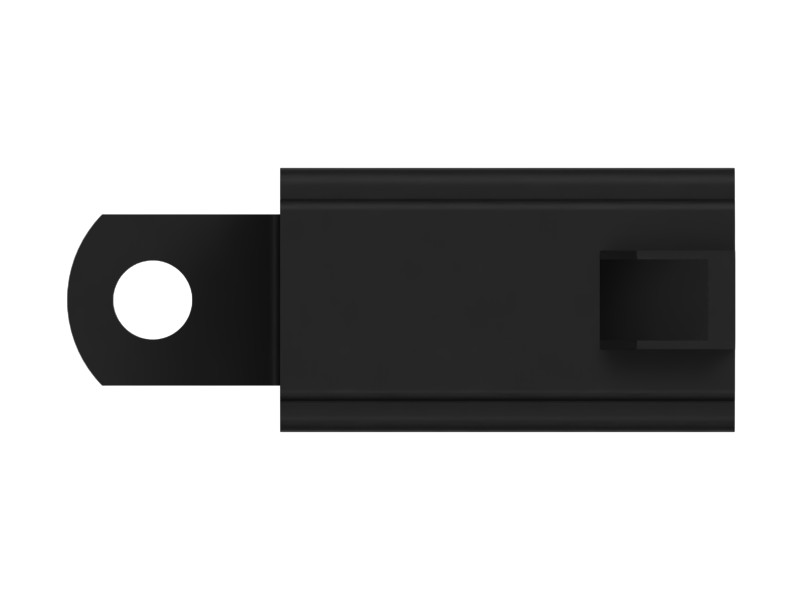

Cat® relay that energizes an electromagnet when current is applied to the relay. The electromagnet closes the open contacts, energizing the circuit. Meets your quality expectations in demanding work environments.
Fast switching speed
Low thermal conductivity
Highly durable
Applications
Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Voltage | 12 Volts |
|---|---|
| Current | 20 Amps |
| Length | 54.5 mm (2.15 in) |
| Width | 21.5 mm (0.85 in) |
| Height | 20.4 mm (0.80 in) |
| Thickness | 20.4 mm (0.81 in) |
| Approximate Weight | 0.02 kg (0.05 lb) |
Compatible Equipment
- Mini Excavators: 302CR, 301.7CR, 303.5C, 301.5, 303.5D, 308
- Excavators: 305E2 CR, 301.8, 305 CR, 301.6, 303C CR, 305C CR, 308E, 305, 303.5E2 CR, 303
