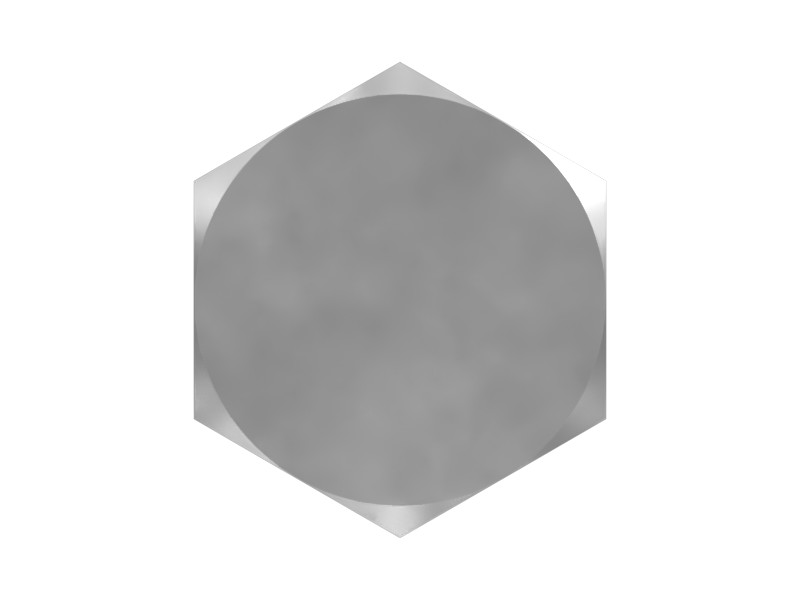

238-8292 M10X1.5 Exhaust Manifold Mounting Bolt
Cat® M10X1.5 flange bolt for exhaust manifold mounting
Description
Cat flange bolts are designed to join two unthreaded parts on Cat engines. Cat bolts are manufactured to the highest quality standards to extend bolt life and reduce the likelihood of Cat engine failures.
Features
Hex Head Flange Bolt
Applications
Cat flange bolts are common maintenance and repair parts in small repair shops or when servicing vehicles in the field, and are used to mount the exhaust manifold to the cylinder head group. Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Locking Feature | Adhesive |
|---|---|
| Thread Size (Diameter × Pitch) | M10x1.5 mm |
| Coating | Oil with Corrosion Inhibitor |
| Class or Grade | ISO 898-1 Class 10.9 |
| Length | 114.3 mm (4.5 in) |
| Overall Height | 20.32 mm (0.8 in) |
| Overall Length | 88.9 mm (3.5 in) |
| Overall Width | 20.32 mm (0.8 in) |
| Height | 20.32 mm (0.8 in) |
| Width | 101.6 mm |
| Thread Direction | RH |
| Thread Size | M10 mm (0 in) |
| Bolt Length | 80 mm (3.15 in) |
| Bolt Type | Hex Flange Head |
| Handle Length | 54 mm (2.126 in) |
| Thread | Coarse |
| Thread Size (in – TPI) | M10-1.5 in |
Compatible Equipment
- Generator Sets: C4.4, C7.1, C7.1DE200E
- Track Loaders: 953, 963, 963D, 953K, 963K, 953D
- Cold Planers: PL61
- Compactors: CS11, 816, 815, 814, CP56B, CS12, CB16, CS7, CS54B, CW-34, CB-44B, CS-56, CP54B, CW-16, CB-66B, CS-563E, CS-54, CB-64B, CS68B, CB13, CB15, CB10, CS-54B, CS64B
- Engines: C6.6
- Excavators: 320D, 320D2, 330, 326D2, 320 GC, 320 GX, 326, 329E L, 320D2 GC, 320D2 L, 323D L, 313D2-GC, 336 GC, 320E, 313F L, 323D2 L, 333, 336, 120 GC, 330 GC, 323, XQP200, 320, 325, 335, 320D GC, 312E L, 335F LCR, 312F, 330GC, 315F LCR, 330D2, 318D2 L, 313D2, 329E, 312E, 313D2 GC, 320D L, 318D2, 416F2, 434F2, 428F
- Asphalt Pavers: AP655F, AP-600D
- Motor Graders: 120, 140 GC, 316F
- Wheel Excavators: M315GC, M320, M315, M322D, M315D, M313D, M315D2, IT14G, M317D2, M320D2
- Dozers: D4, D6K2, D3K2 LGP, D6N, D5K XL, D5K2 XL, D5K LGP
- Wheel Loaders: 950, 938M, 950 GC, M314, 926M, 924HZ, 966F, 938K, 928HZ, 924K
Additional information
| Machine Model | 120, 120 GC, 140 GC, 312E, 312E L, 312F, 313D2, 313D2 GC, 313D2-GC, 313F L, 315F LCR, 316F, 318D2, 318D2 L, 320, 320 GC, 320 GX, 320D, 320D GC, 320D L, 320D2, 320D2 GC, 320D2 L, 320E, 323, 323D L, 323D2 L, 325, 326, 326D2, 329E, 329E L, 330, 330 GC, 330D2, 330GC, 333, 335, 335F LCR, 336, 336 GC, 416F2, 428F, 434F2, 814, 815, 816, 924HZ, 924K, 926M, 928HZ, 938K, 938M, 950, 950 GC, 953, 953D, 953K, 963, 963D, 963K, 966F, AP-600D, AP655F, C4.4, C6.6, C7.1, C7.1DE200E, CB-44B, CB-64B, CB-66B, CB10, CB13, CB15, CB16, CP54B, CP56B, CS-54, CS-54B, CS-56, CS-563E, CS11, CS12, CS54B, CS64B, CS68B, CS7, CW-16, CW-34, D3K2 LGP, D4, D5K LGP, D5K XL, D5K2 XL, D6K2, D6N, IT14G, M313D, M314, M315, M315D, M315D2, M315GC, M317D2, M320, M320D2, M322D, PL61, XQP200 |
|---|---|
| Equipment Type | Excavators, Wheel Excavators, Wheel Loaders, Track Loaders, Dozers, Motor Graders, Compactors, Asphalt Pavers, Cold Planers, Engines, Generator Sets |
| Part Source | Genuine OEM |
