Description

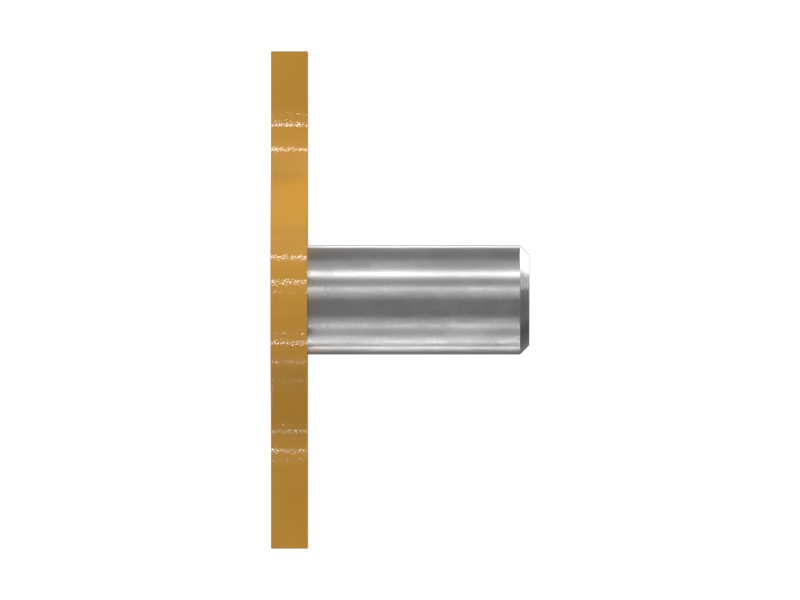

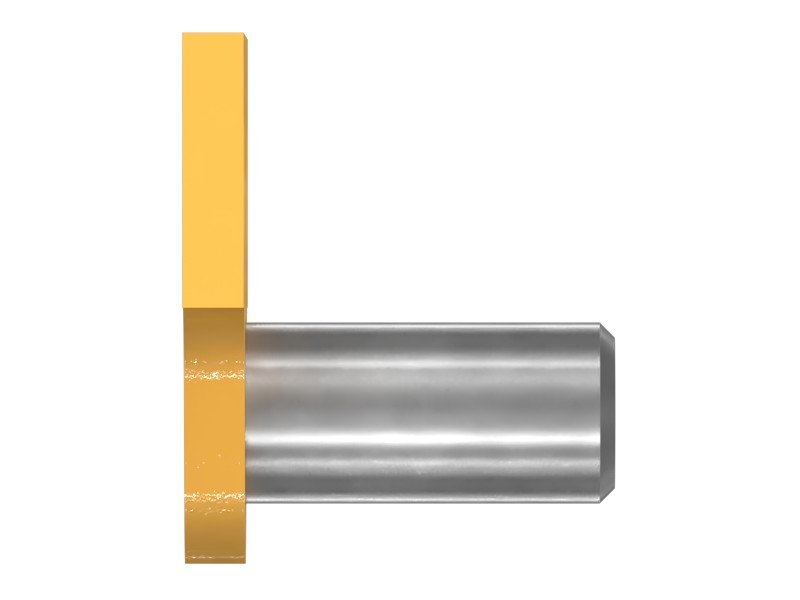

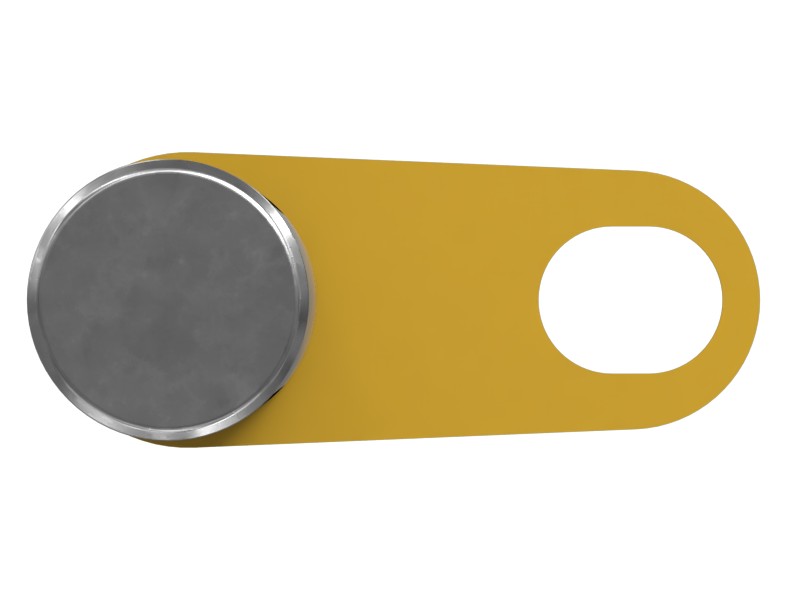

The cabinet self-supporting pin is a shelf support designed to hold a shelf in place without brackets or other fasteners. The pin is inserted into a hole drilled in the side of the cabinet, and the shelf rests on top of the pin. The pin supports the shelf and prevents it from tipping or sliding.
Attributes
- Supports the weight of heavy objects on the rack
- Built to exact specifications for durability and reliability
Applications
The cabinet self-supporting pin is used to provide secure support for a shelf without brackets or other fasteners, and
Specifications
| Material | Structural Steel |
|---|---|
| Internal Grease Passage Hole | No |
| Outside Diameter | 12 mm (0.472 in) |
| Effective Length | 24.5 mm (0.965 in) |
| Puller Thread | No |
Compatible Equipment
- Wheel Excavators: M320, M315, M315GC, M313D, M315D, M315D2, M322D, M317D2, M320D2
- Excavators: 345 GC, M325D L MH
- Wheel Loaders: M314
