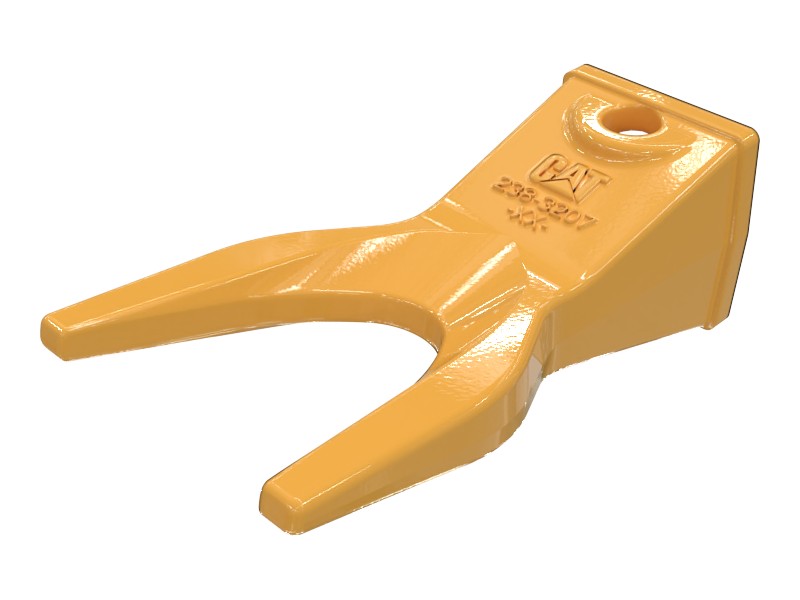

238-3207 Twin Tiger Excavator Bucket Tip
V50 Twin Tiger Tip
Fitment data not listed — send us your machine model or serial number to confirm.
Description
Cat® V Series tips feature unmatched manufacturing precision to protect your machine's bucket from damage. Our Ground Engaging Tools (GET) are designed around the inherent characteristics of your Cat equipment to deliver consistent, superior protection.
With a vertical pin design, Genuine Cat bucket tips can be used in a wide range of applications, greatly increasing equipment versatility. The vertical pin and retaining ring system allows quick installation and removal.
Twin Tiger tips are used in corner positions to handle hard-to-penetrate, easily fractured material with the pointed tips. Our tips are durable and cast from steel, which holds its hardness and provides long wear life so your machine delivers the performance you need. Always choose Genuine Cat ground engaging tools to protect your investment.
Features
- Stays sharp throughout the life of the tip
- Cutting clearance when trenching
Applications
- Digging dense composite materials
Specifications
| Length | 154.94 mm (6.1 in) |
|---|---|
| Height | 58.42 mm (2.3 in) |
| Width | 76.2 mm |
| Rear Width | 55 mm (2.165 in) |
| Overall Length | 151.7 mm (5.972 in) |
| Shape | Double Spike |
| Front Width | 76 mm (2.992 in) |
| Rear Height | 54 mm (2.126 in) |
| End Bit Size | VRS50 |
| Series | V Series |
| Size | V50 |
| Material | Low Alloy Steel |
| Wear or Durability | Standard |
Additional information
| Part Source | Genuine OEM |
|---|
