Description
A rocker switch is a simple electrical switch that connects or breaks a circuit through a rocking mechanism. Cat parts keep your equipment running at its best.
Features

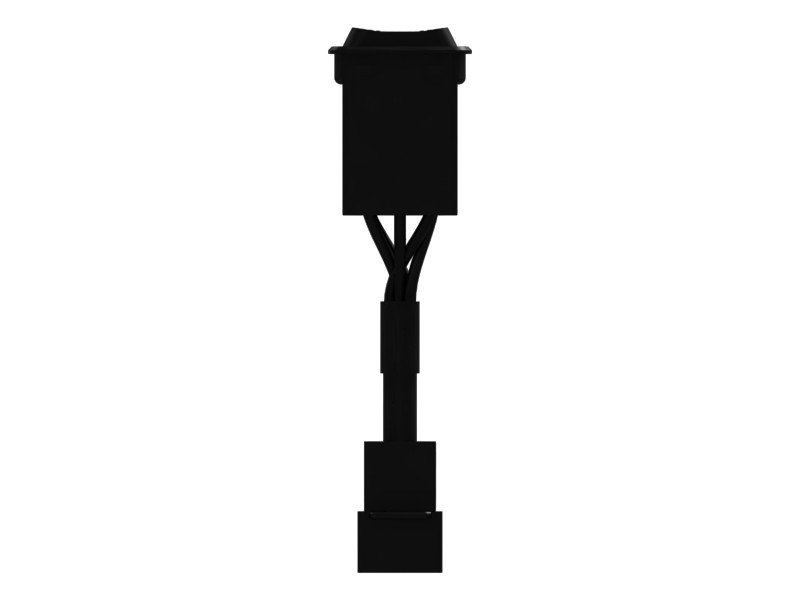

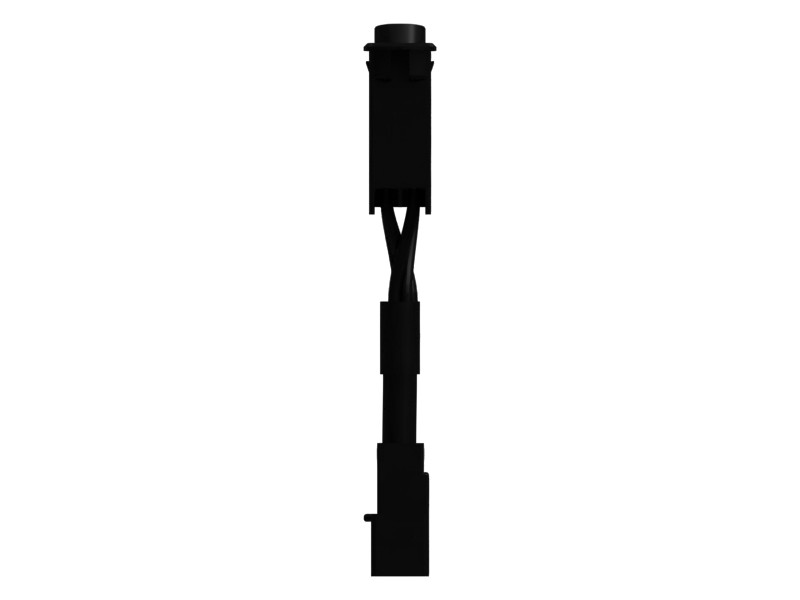

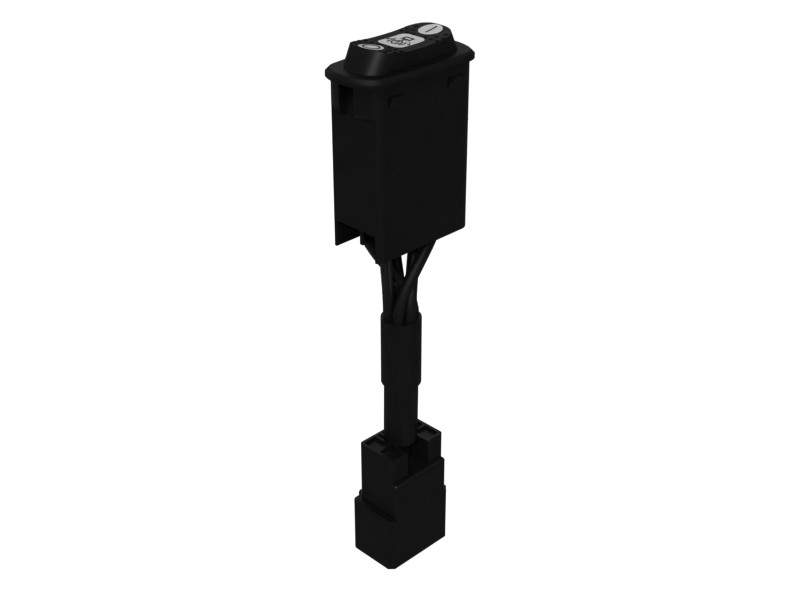

- Sealed three-position rocker switch with pigtail connector

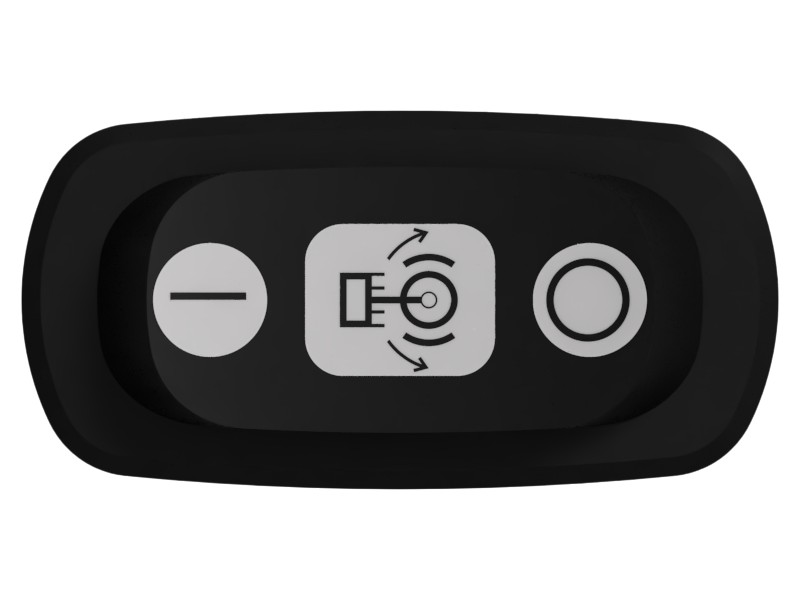

- Symbol: Excavator/Backhoe Boom Swing
Pigtail Length: 100 mm (3.94 in)
- Panel Cutout: 17.2 X 37.2 mm (0.68 X 1.46 in) Oval
- Heavy-Duty Construction
- Easy to operate
- High precision ensures stable performance
- Works with other Cat components to help you get the most out of your equipment
Applications
Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Material | Acrylonitrile Butadiene Styrene (ABS) Plastic |
|---|---|
| Length | 40 mm (1.57 in) |
| Width | 20 mm (0.79 in) |
| Height | 45 mm (1.77 in) |
| Overall Length | 145 mm (5.7 in) |
| Temperature | -40° to 75° °C (-40° to 167° °F) |
Compatible Equipment
- Generator Sets: 3512B
- Excavators: 330D L, 349F L, 325D L, 312D, 315D L, 336E L, 336D2 GC, 320D FM, 314D CR, 312D L, 313D, 336D L, 329E L, 330D2, 330D, 320D L, 320D2 L, 323D L, 325D, 336D2 L, 323D2, 329D L, 324D L, 314D LCR, 323D, 311D LRR, 324D, 335F LCR, 318D2 L, 320D RR, 330D2 L, 323D2 L, 320D2 GC, 328D LCR, 320D GC, 336F L, 336E LH, 312D2 GC, 313D2, 318D L, 315F LCR, 336F L XE, 345D L, 349D L, 385C L, 352F, 340D2 L, 345C, 349E L VG, 340D L, 349E L, 385C, 365C, 345C L, 365C L, 345D, 312E L, 312D2 L, 336F, 312D2, 326D L, 313F L, 326D2, 336D2, 320D2, 329D2, 336D, 320D, 329D2 L, 326D2 L, 329D, 349D2 L, 349D2, 349D
- Skid Steer Loaders: 313D2 LGP
Additional information
| Machine Model | 311D LRR, 312D, 312D L, 312D2, 312D2 GC, 312D2 L, 312E L, 313D, 313D2, 313D2 LGP, 313F L, 314D CR, 314D LCR, 315D L, 315F LCR, 318D L, 318D2 L, 320D, 320D FM, 320D GC, 320D L, 320D RR, 320D2, 320D2 GC, 320D2 L, 323D, 323D L, 323D2, 323D2 L, 324D, 324D L, 325D, 325D L, 326D L, 326D2, 326D2 L, 328D LCR, 329D, 329D L, 329D2, 329D2 L, 329E L, 330D, 330D L, 330D2, 330D2 L, 335F LCR, 336D, 336D L, 336D2, 336D2 GC, 336D2 L, 336E L, 336E LH, 336F, 336F L, 336F L XE, 340D L, 340D2 L, 345C, 345C L, 345D, 345D L, 349D, 349D L, 349D2, 349D2 L, 349E L, 349E L VG, 349F L, 3512B, 352F, 365C, 365C L, 385C, 385C L |
|---|---|
| Equipment Type | |
| Part Source | Genuine OEM |
