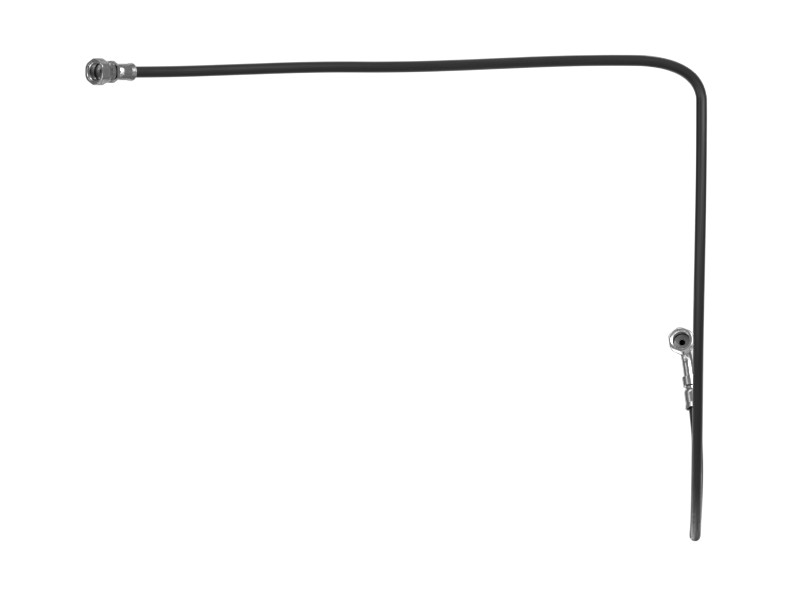

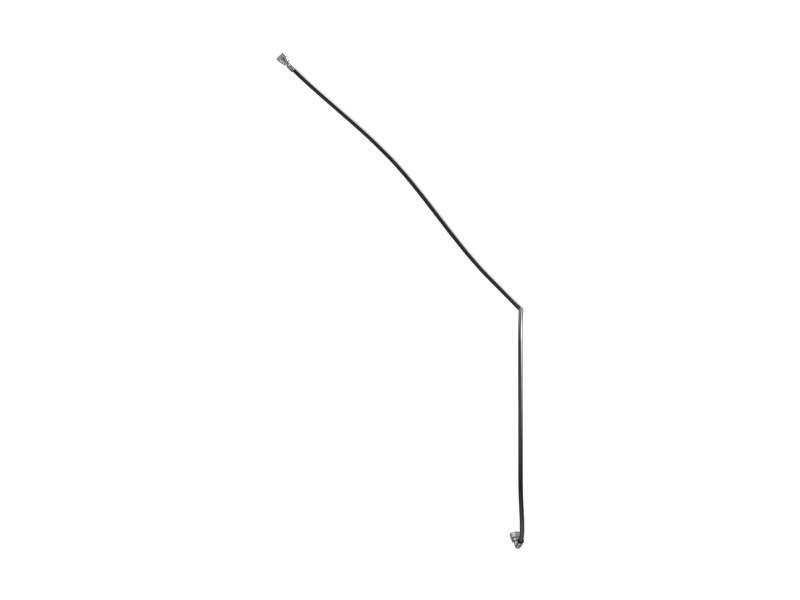

236-8030 4.76 mm ID Grease Line Hose Group
Cat® 4.76 mm ID Grease Line Hose Group with 9/16" 90 Degree Elbow ORFS Coupling and 9/16" Straight ORFS Coupling
Description
Conveys high-temperature petroleum-based and water-based hydraulic fluids and lubricating oils in hydraulic systems.
Features
High-temperature medium-pressure hose with a PTFE inner tube and one layer of stainless steel wire braid reinforcement
Applications
Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Hose Type | PTFE Lined High Temperature Hose |
|---|---|
| Hose Inside Diameter | 4.76 mm (0.187 in) |
| Material | Rubber & Steel Hose |
| Type | Grease Line Hose |
| Overall Length | 1408 mm (55.433 in) |
| Thread | 9/16-18 |
| Weight | 0.5 kg |
| Nut Model | Swivel Fitting |
| Length | 1408 mm (55.43 in) |
| Inside Diameter | 5 mm (0.19 in) |
| Fitting Size | -4 ORFS Female (Both Ends) in |
| Connector Type | Fixed Connector |
Compatible Equipment
- Asphalt Pavers: AP655F, AP655F L, AP-600D
Additional information
| Machine Model | |
|---|---|
| Equipment Type | |
| Part Source | Genuine OEM |
