Description

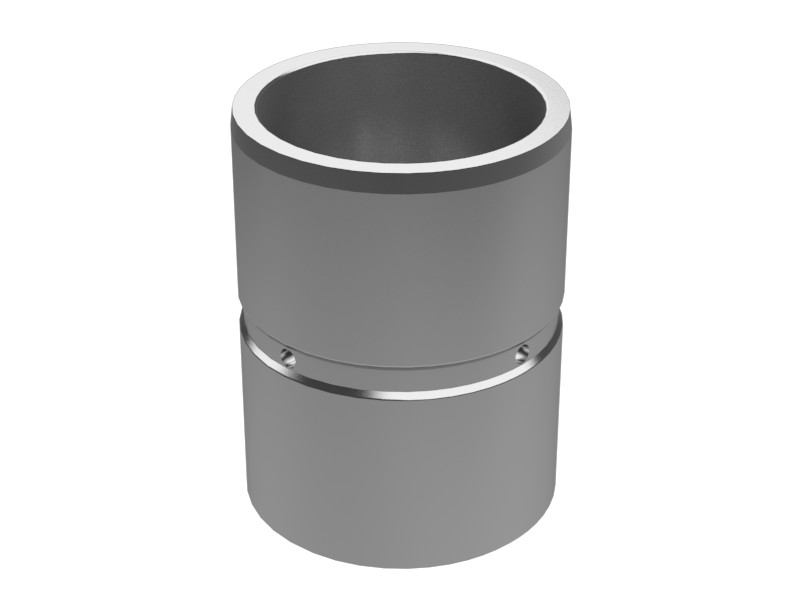

Description: Cat machine linkage sleeve bearings support rotation between the frame linkage and the work tool. They are most commonly used in the arms and buckets of machines. Genuine Cat pins and flange bearings are specially designed to deliver the performance you expect as one system. Caterpillar design engineers match each part with the right combination of size, material, surface finish, and manufacturing process so that it works effectively with, and wears in sync with, all other adjacent and dependent parts.
Features
- Outside Diameter: 95.1 mm (3.74 in)
- Inside Diameter: 80.12 mm (3.15 in)
- Length: 125 mm (4.92 in)
- Has a cross hole and internal groove
- Cat heavy-duty sleeve bearings are made of premium steel and hardened to deliver exceptional strength and wear life. They are used as one system on specific Cat machines and have been tested and validated in the world's most demanding applications. They deliver maximum strength and durability, resulting in lower overall cost, excellent strength and fatigue life, superior wear resistance, and outstanding protection against pin spalling and wear, even under high load conditions.
Applications
Cat sleeve bearings are designed for situations that require durability and load strength to extend bearing life. Cat sleeve bearings are the first choice for maximizing performance in demanding applications and are designed to work with matching pins.
Specifications
| Ferrule Inside Diameter | 80.12 mm (3.154 in) |
|---|---|
| Ferrule Outside Diameter | 95.102 mm (3.744 in) |
| Overall Length | 125 mm (4.921 in) |
| Unique Features | No |
| Cross Hole | Yes |
Compatible Equipment
- Excavators: 325C, 330C L, 320C, 325C L, 330C, 325B L, 385C L, 385B
