236-5197 19.5 mm Diameter Compression Spring

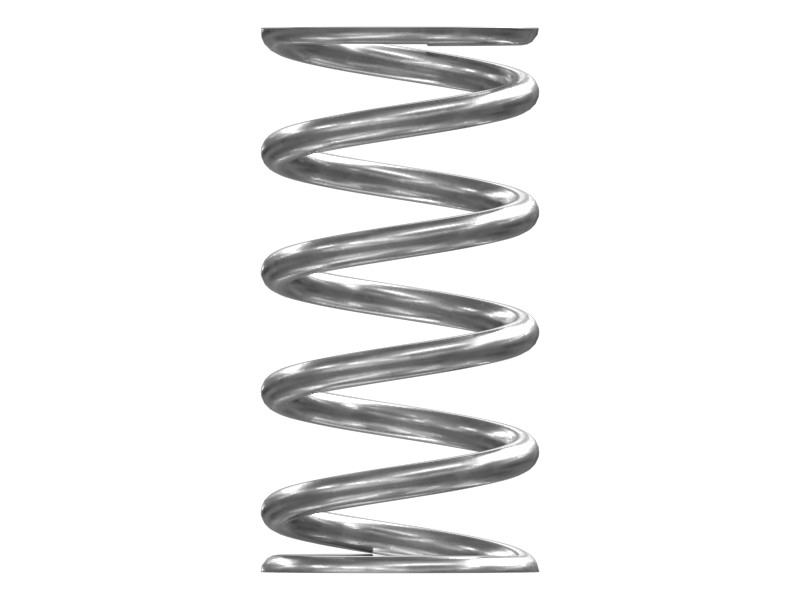

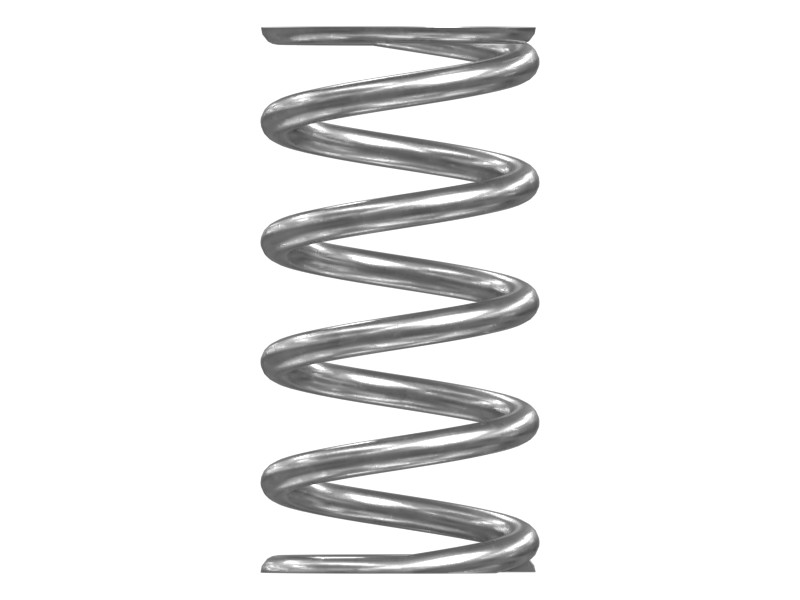

Cat® 19.5 mm diameter compression spring used in seat recliners
Description
The compression spring is used to provide the force necessary to hold the seat back at the desired angle. When the recliner lever is pulled, the spring compresses, allowing the seat back to move to the desired angle. When the lever is released, the spring expands and holds the seat back in place.
Attributes
- Provides a spring rate of 13.62 N/mm, giving the spring high stiffness
- 6 total coils help maintain its shape and stability
Applications
The compression spring is used to ensure the seat back is held firmly in place under normal driving conditions. This compression spring is widely used on Cat Motor Graders, Harvesters, Harvesters – 6 Wheel (Tree), Pipelayers, Wheel Tractor-Scrapers, Scrapers, Trucks, Articulated Trucks, Wheel Dozers, Compactors, Wheel Loaders, Track-Type Loaders, Engines (Piston), Track-Type Tractors, and Powertrain.
Specifications
| Material | Alloy Zinc |
|---|---|
| Length | 38.1 mm (1.5 in) |
| Outside Diameter | 19.5 mm (0.77 in) |
| Spring Type | Compression |
| Weight | 0.01 kg (0.02 lb) |
| Wire Size | 2.36 mm (0.09 in) |
Compatible Equipment
- Motor Graders: 16H, 120H, 12K, 140H, 140K, 12H, 160K, 14M, 16M
- Track Loaders: 824G, 826H, 834H, 826G
- Cold Planers: PL83, PL87
- Wheel Excavators: IT14G
- Dozers: D10R, D11T, D6R III, D6R II, D7R, D5N, D6R, D4G, D6N, D6T, D5G, D8R, D7R II, D3G, D7G2, D6G2 LGP, D11R, D9R, D10T, D6R LGP, D6R XL, D8T, D6G2 XL, D9T
- Excavators: 657G, 637G, 621G
- Wheel Loaders: 992K
- Off-Highway Trucks: 730, 785D, 725, 771D, 777D, 735, 740, 773D, 773F, 793D, 773E
Additional information
| Machine Model | 120H, 12H, 12K, 140H, 140K, 14M, 160K, 16H, 16M, 621G, 637G, 657G, 725, 730, 735, 740, 771D, 773D, 773E, 773F, 777D, 785D, 793D, 824G, 826G, 826H, 834H, 992K, D10R, D10T, D11R, D11T, D3G, D4G, D5G, D5N, D6G2 LGP, D6G2 XL, D6N, D6R, D6R II, D6R III, D6R LGP, D6R XL, D6T, D7G2, D7R, D7R II, D8R, D8T, D9R, D9T, IT14G, PL83, PL87 |
|---|---|
| Equipment Type | Excavators, Wheel Excavators, Wheel Loaders, Track Loaders, Dozers, Motor Graders, Off-Highway Trucks, Cold Planers |
| Part Source | Genuine OEM |
