Description
Cat® fastener parts are designed for specific applications based on size, strength, clamp load and past performance. This is information other manufacturers do not have. They are carefully selected to last until machine rebuild or end of life. Non-Cat® hardware and fasteners may appear to fit your machine, but no one else knows your equipment the way we do.

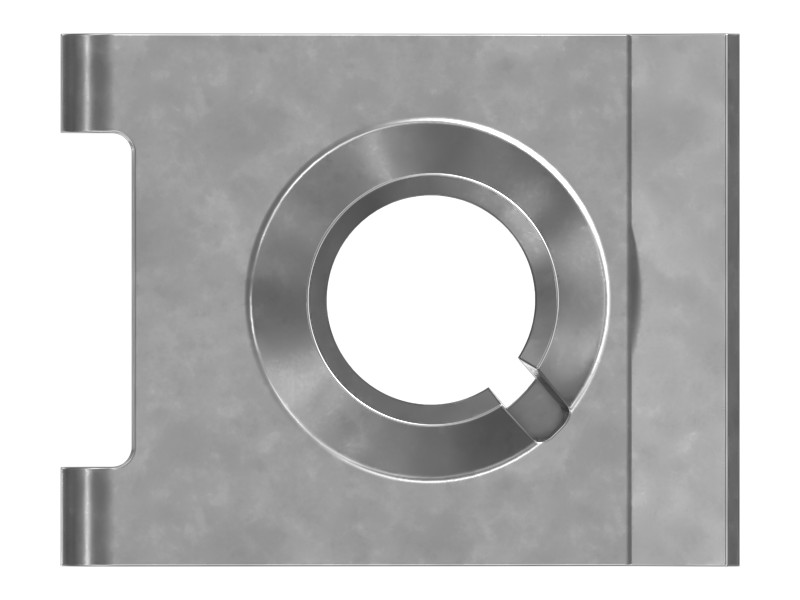

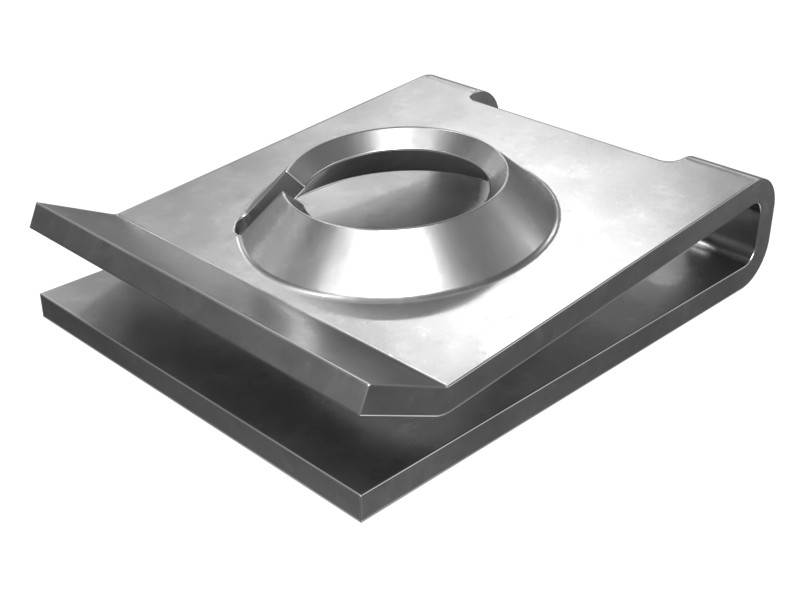

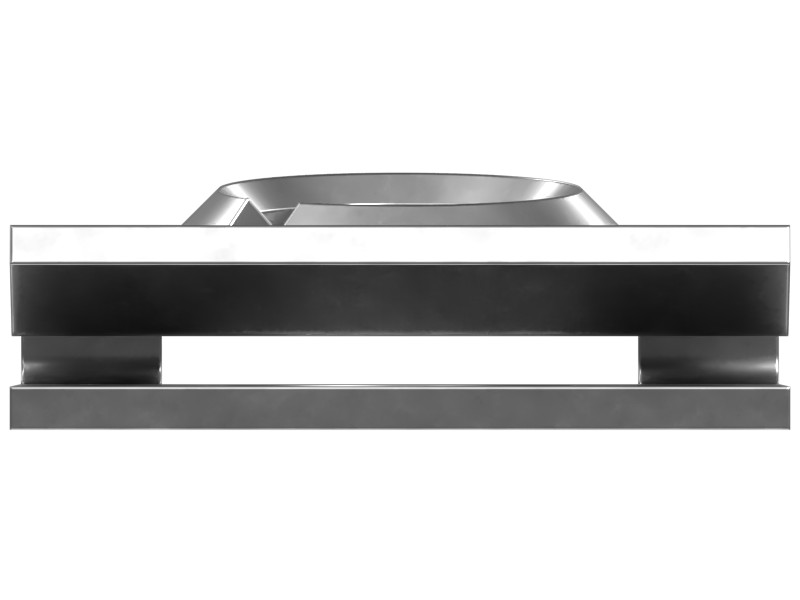

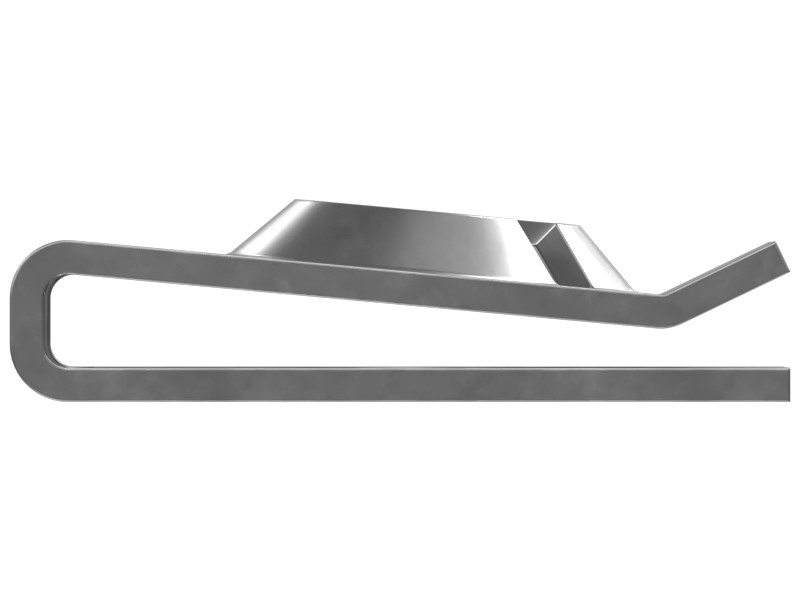

The nut with clamp is used to secure sheet metal panels and panel assemblies. These fasteners float to accommodate offset in the panel mounting holes.
Features
- Cat® fasteners are manufactured to strict specifications for durability, reliability and efficiency
High• Strength and Quality – Fasteners meet or exceed ISO, ASTM, ASME and SAE requirements.
- Cat® bolts, together with the associated hardened washers and nuts, form a high-performance system that produces consistently high clamping force.
- Coating meets the special requirements of different applications (RoHS compliant).
Applications
Cat® bolts and the associated hardened washers and nuts form a high-performance system that delivers sustained high clamping force. Cat® fasteners help you build, maintain or repair for most machine and shop applications worldwide, and they can be trusted.
Specifications
| Coating | Zinc Phosphate and Oil |
|---|---|
| Length | 16 mm |
| Locking Feature | None |
| Nut Model | Clip-On |
| Thickness | 0.8-1.6 (Panel) mm |
| Thread Size | M4.8×1.6 (Fits M5, ST 4.8 or #10 Tapping Screws) mm |
| Width | 13 mm |
Compatible Equipment
- Generator Sets: 3512B
- Mini Excavators: 307D
- Excavators: 330D L, 324D L, 336D L, 328D LCR, 323D2 L, 320D L, 311D LRR, 329D L, 312D L, 336D2 L, 325D L, 314D CR, 312D, 320D2 GC, 312D2 L, 320D RR, 318D2 L, 320D2 L, 330D, 320D FM, 330D2, 323D L, 320D GC, 325D, 336D2 GC, 326D L, 312D2, 313F LGC, 320D3, 313D2, 312D2 GC, 323D, 330D2 L, 318D L, 315D L, 324D, 318D2, 314D LCR, 313D, 323D2, 313D2 GC, 365C, 345C, 385C L, 345C L, 345D L, 349D L, 385C, 390D, 365C L, 385C FS, 340D2 L, 340D L, 345D, 313D2-GC, 336D2 XE, 320D3 GC, 320D, 320D2, 336D2, 326D2 L, 329D2 L, 329D2, 329D, 336D, 326D2, 349D2, 374D L, 390D L, 349D, 349D2 L, 308D
- Skid Steer Loaders: 313D2 LGP
Additional information
| Machine Model | 307D, 308D, 311D LRR, 312D, 312D L, 312D2, 312D2 GC, 312D2 L, 313D, 313D2, 313D2 GC, 313D2 LGP, 313D2-GC, 313F LGC, 314D CR, 314D LCR, 315D L, 318D L, 318D2, 318D2 L, 320D, 320D FM, 320D GC, 320D L, 320D RR, 320D2, 320D2 GC, 320D2 L, 320D3, 320D3 GC, 323D, 323D L, 323D2, 323D2 L, 324D, 324D L, 325D, 325D L, 326D L, 326D2, 326D2 L, 328D LCR, 329D, 329D L, 329D2, 329D2 L, 330D, 330D L, 330D2, 330D2 L, 336D, 336D L, 336D2, 336D2 GC, 336D2 L, 336D2 XE, 340D L, 340D2 L, 345C, 345C L, 345D, 345D L, 349D, 349D L, 349D2, 349D2 L, 3512B, 365C, 365C L, 374D L, 385C, 385C FS, 385C L, 390D, 390D L |
|---|---|
| Equipment Type | Excavators, Mini Excavators, Skid Steer Loaders, Generator Sets |
| Part Source | Genuine OEM |
